Haier HL32XSL2 Service Manual

Also see for HL32XSL2:

Contents
  1. Table of Contents2
  2. Chapter 1.General Information4
  3. Chapter 2. Specification9
  4. Chapter 3. Disassemble and Assemble11
  5. Chapter 4. Location of Controls and Components14
  6. Chapter 5. Installation Instructions21
  7. Chapter 6. Operation Instructions24
  8. Chapter 7. Electrical Parts27
  9. Chapter 8. Measurements and Adjustments48
  10. Chapter 9. Trouble Shooting51

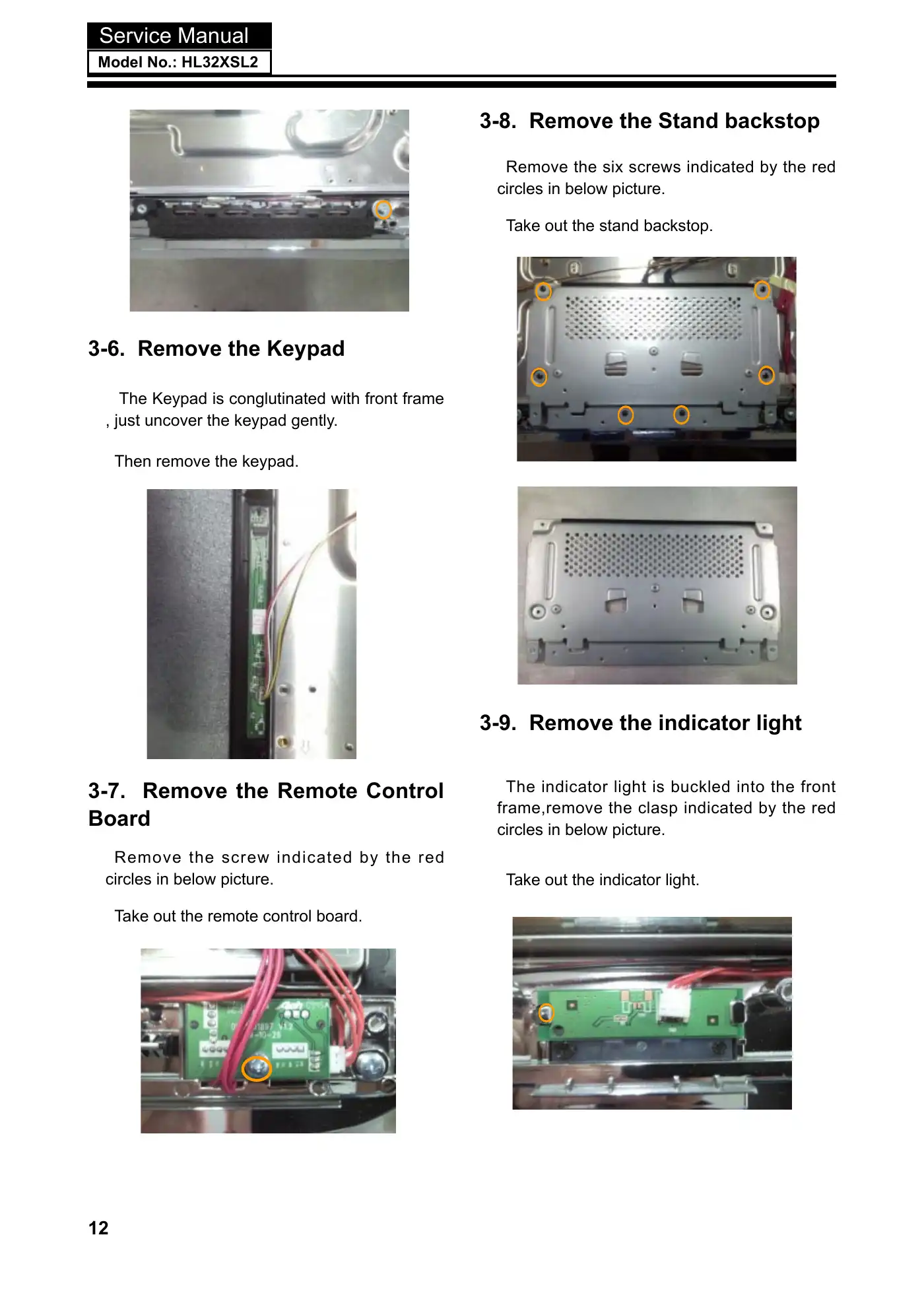

Haier HL32XSL2 Service Manual Manual pdf 13 page image
Remove the screw indicated by the redcircles in below picture.3-6. Remove the KeypadThe Keypad is conglutinated with front frame, just uncover the keypad gently.Then remove the keypad.Take out the remote control board.3-7. Remove the Remote ControlBoard3-9. Remove the indicator lightThe indicator light is buckled into the frontframe,remove the clasp indicated by the redcircles in below picture.Take out the indicator light.3-8. Remove the Stand backstopRemove the six screws indicated by the redcircles in below picture.Take out the stand backstop.Service ManualModel No.: HL32XSL212
