Haier HL32XSL2 Service Manual

Also see for HL32XSL2:

Contents

Table of Contents2

Chapter 1.General Information4

Chapter 2. Specification9

Chapter 3. Disassemble and Assemble11

Chapter 4. Location of Controls and Components14

Chapter 5. Installation Instructions21

Chapter 6. Operation Instructions24

Chapter 7. Electrical Parts27

Chapter 8. Measurements and Adjustments48

Chapter 9. Trouble Shooting51

Haier HL32XSL2 Service Manual Manual pdf 12 page image

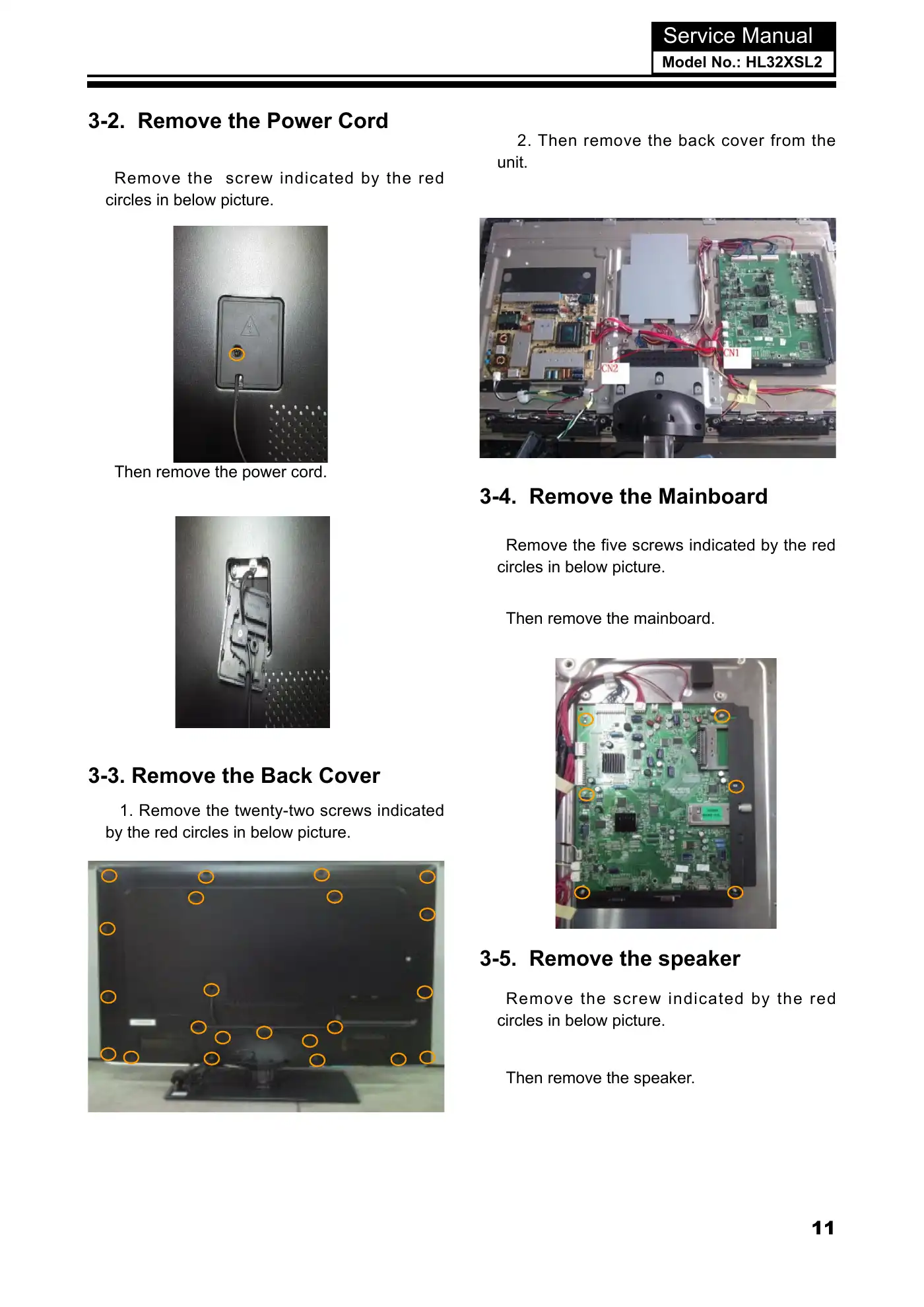

3-3. Remove the Back Cover1. Remove the twenty-two screws indicatedby the red circles in below picture.2. Then remove the back cover from theunit.3-2. Remove the Power CordThen remove the power cord.Remove the screw indicated by the redcircles in below picture.Then remove the mainboard.3-4. Remove the MainboardRemove the five screws indicated by the redcircles in below picture.3-5. Remove the speakerRemove the screw indicated by the redcircles in below picture.Then remove the speaker.Service ManualModel No.: HL32XSL211

/ 59
