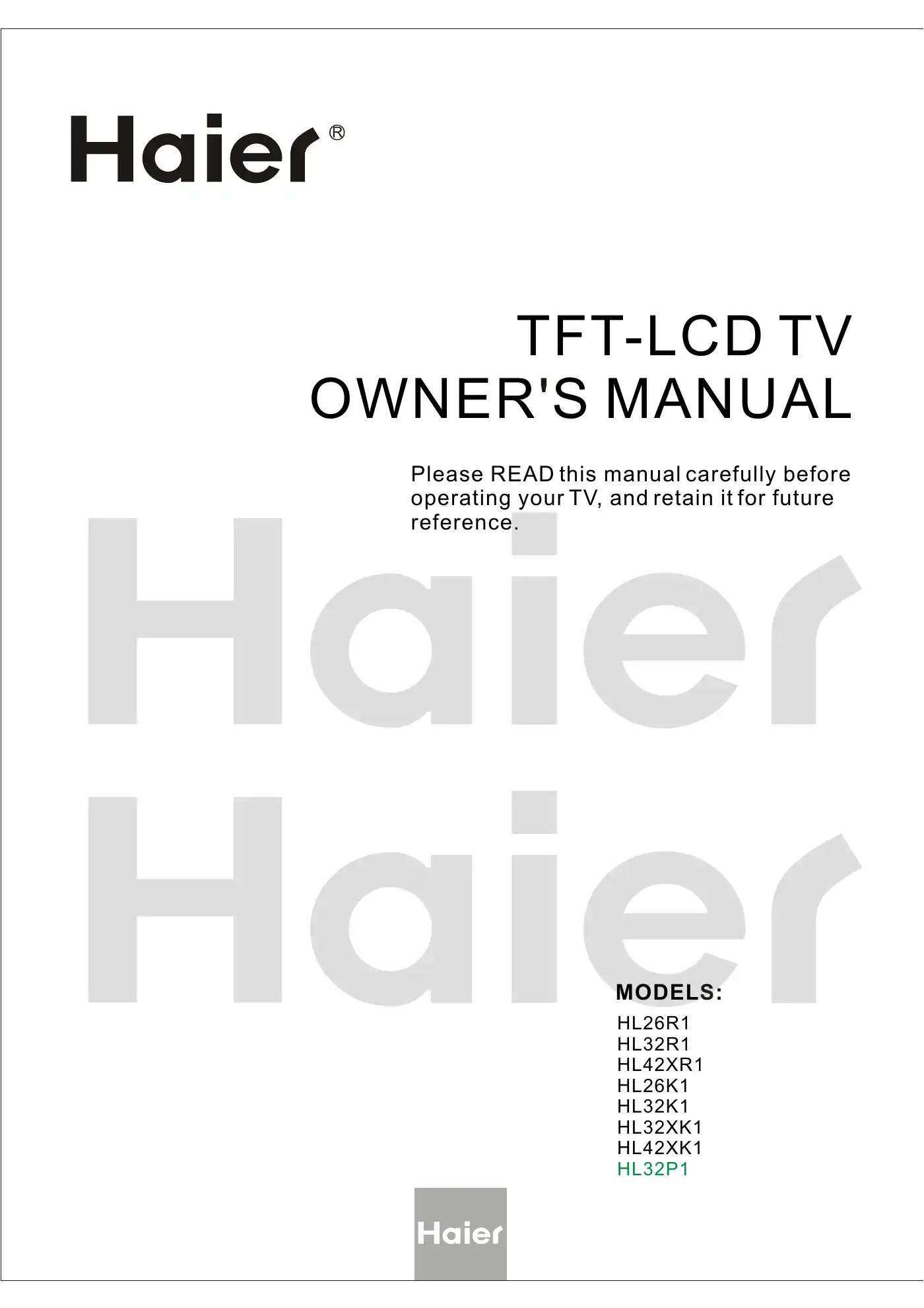

Haier HL32K1b Owner's Manual

Yes, you can connect a computer to the TV using the VGA Video In and VGA Audio In ports. Connect the video cable from the computer to the VGA Video In jack and the audio L/R cables to the VGA Audio In jacks.

To connect your VCR to the TV using AV cables, follow these steps: 1. Connect the audio and video cables from the VCR's output jacks to the TV input jacks. Match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red). 2. Insert a video tape into the VCR and press PLAY on the VCR. 3. Select the input source using the INPUT button on the remote control, and then press the / button to select the source, and press ENTER button to confirm.

Connecting a VCR to the TV using the S-VIDEO input will provide improved picture quality compared to connecting it to the regular VIDEO input. This is because the S-VIDEO connection carries a better quality signal.

To connect a DVD player or Set Top Box to the Haier HL32K1b TV using an HDMI cable, follow these steps: 1. Connect the source device to the HDMI port of the TV with an HDMI cable (not supplied with the product). 2. No separate audio connection is necessary. 3. If the source device supports Auto HDMI, the output resolution will be automatically set to 1280x720p. If not, set the output resolution of the source device to 1280x720p for the best picture quality. 4. Select HDMI input source in the input source option of the Select Main source menu.

To change the picture mode, press the MENU button on your remote, use the / button to select the Video menu, press the / ENTER button, and then use the / button to select Mode. You can choose from Standard, Vivid, Custom, and Mild.

To customize the picture settings, press the MENU button and select the Video menu. Then, press the / ENTER button and use the / button to select the desired items such as Brightness, Contrast, Color, Tint, Sharpness, and Color Temperature. Note that these settings can only be adjusted when the mode is set to Custom.

To change the language, press the MENU button, use the / button to select Function menu, press / ENTER, use the / button to select Language, and then use the / button to select your preferred language (English, Spanish, or French).

To play both pictures and music from a USB drive, insert the USB drive into the TV's USB input. Select the Music folder and choose the MP3 files to be played. Then, select the pictures to be played. Note that the speed of picture operation response might be affected as some files must be read while music is being played. Follow these steps: 1. Press the / button to select the Music folder and press ENTER to enter. 2. Press the / / / button to select the desired music, and then press the ENTER button to play. 3. Press the EXIT button to return to the main menu. 4. Press the / button to select the Picture option and press ENTER to enter. 5. Press the / / / button to select the desired picture, and then press the ENTER button to enter the play interface. 6. Press the USB button to exit USB mode. Do not remove the USB device from the TV until you have exited the USB mode to avoid damaging the USB device.

If the picture operation response is slow while playing music from a USB drive, it is likely because the TV is reading some files while the music is being played. This is a normal occurrence and should not cause concern. To mitigate this, ensure that the USB drive is not overloaded with too many files and that the files are properly organized. If the issue persists, try using a different USB drive or reformatting the current one.

To use the universal remote control, you need to find the correct code for your TV brand from the list provided in the manual. For example, if your TV brand is Panasonic, you would use code 225. Once you have the code, enter it into the remote control to program it to operate your TV.
