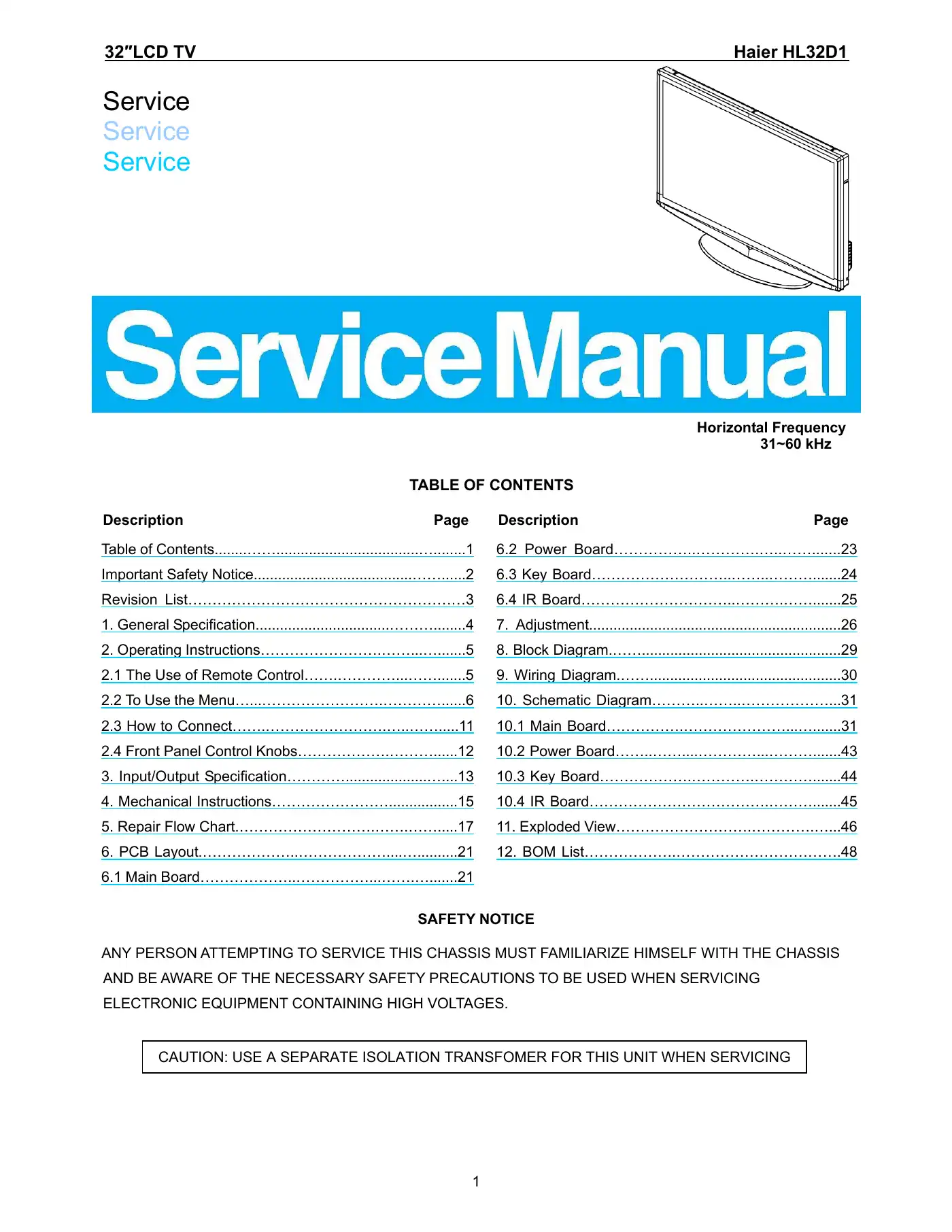

Haier HL32D1 Service Manual

To use the remote control, refer to section 2.1 of the manual titled 'The Use of Remote Control' on page 5.

For instructions on how to connect the TV, refer to section 2.3 titled 'How to Connect' on page 11.

The Channel Menu in TV mode includes options such as Tuning Band (selecting between Air and Cable), Channel Strength (showing the intensity of the received DTV signal), Auto CH Search (automatically scanning and storing channels), Add on CH search (adding new found channels), Channels List (showing and editing the channel list), Channel Labels (modifying channel labels), and FAV Channel Setting (editing favorite channels).

To change the menu language, go to the 'Menu Language' option and select your preferred language from the available options: English, Français, or Español.

To set the current time, navigate to the 'Time' option in the menu. You can choose between 'Auto' or 'Manual' for the time mode, set your current time zone, and adjust the 'Daylight Savings' setting to 'On' or 'Off'.

To reset your Haier HL32D1 TV to its default settings, you can use the 'Reset to Default' option. This will restore all the settings to their factory defaults.

To troubleshoot the main board standby power supply on your Haier HL32D1 TV, first check the power supply circuit. If the issue is not resolved, check the main board standby power supply. If the problem persists, inspect and potentially change component U706. If the issue still exists, check component U401 and consider changing it if necessary.

First, check the power cord and board interface to ensure they are properly connected. If the issue persists, check components F901, BD901, and C907. If any of these are faulty, replace them. If the problem continues, check IC931, Q931, and T931, and replace any faulty components. Finally, check D935, C926, and C928, and replace any that are faulty.

First, check the source and reset it. If the issue persists, check the LVDS cable and reset it. If the problem continues, check components Q932, IC901, and Q901, and replace any faulty ones. If the issue still persists, check IC951, Q951, and Q952, and replace any faulty components. If the problem continues, check T951 and replace it if faulty. If the issue still persists, check D955 and D956, and replace them if faulty. If the problem continues, check U401 and replace the main board if necessary. If none of these steps resolve the issue, check the panel and replace it if faulty.

To connect a VGA input to the Haier HL32D1 TV, use the VGA input port (CN206, DB15) located on the TV. Ensure that the VGA cable is properly connected to both the TV and the source device. The VGA input supports standard VGA signals, including RGB_HSY and RGB_VSY.
