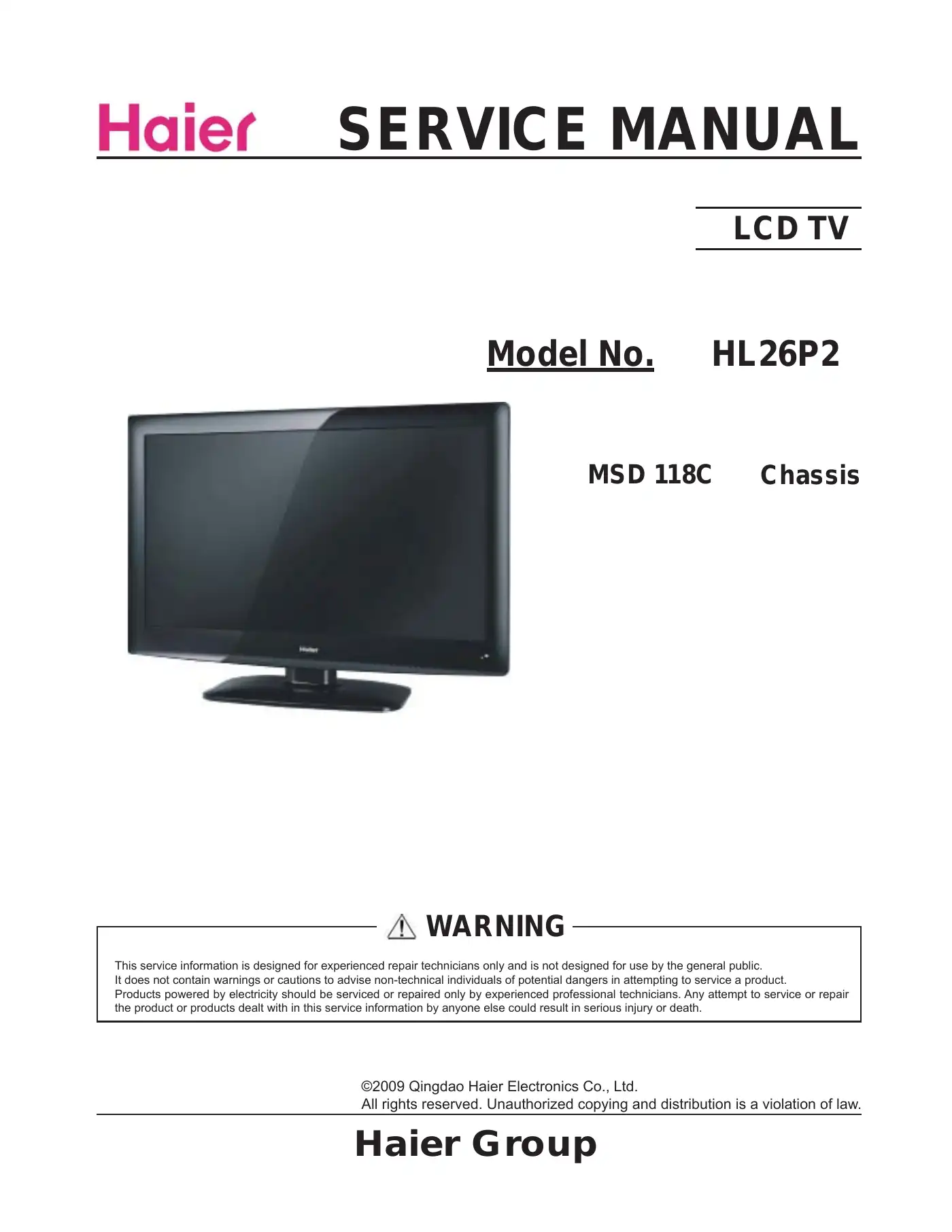

Haier HL26P2 Service Manual

To perform a simple check on your Haier HL26P2, refer to the section 9-1 in the service manual.

The resolution of the Haier HL26P2 TV is 1366x768.

The total power input for the Haier HL26P2 TV is 130W.

Connect one end of a coaxial cable to the ANT IN jack on the back of your TV/DVD combo, then connect the other end of the cable into the antenna or cable TV wall outlet.

To improve picture quality from an antenna in a poor signal area, install a signal amplifier.

To connect the Haier HL26P2 to an AC power source, use the AC polarized line cord provided. Insert the AC cord plug into a standard polarized AC outlet. Ensure that the specified voltage matches the outlet's voltage.

If the polarized AC cord does not fit into a non-polarized AC outlet, do not attempt to file or cut the blade. It is recommended to have an electrician replace the obsolete outlet with a polarized one.

To turn on or off the device, use the PWR-ON/OFF function. This function is likely controlled by a switch or button labeled PWR-ON/OFF on the device.

The 5VSTB and 12V power supplies are essential for providing the necessary voltage levels to various components in the circuit. The 5VSTB is likely used for stable 5V power, while the 12V supply provides higher voltage for components that require it. Specific components like capacitors (e.g., C101, C165) and resistors (e.g., R130, R126) are connected to these power supplies to ensure proper functioning of the device.

The cacophony sound when turning the panel is likely due to mechanical noise from the backlight unit. This issue can be caused by a problem between the mechanism and the panel.
