Haier HL24XK2 Service Manual Manual pdf 19 page image

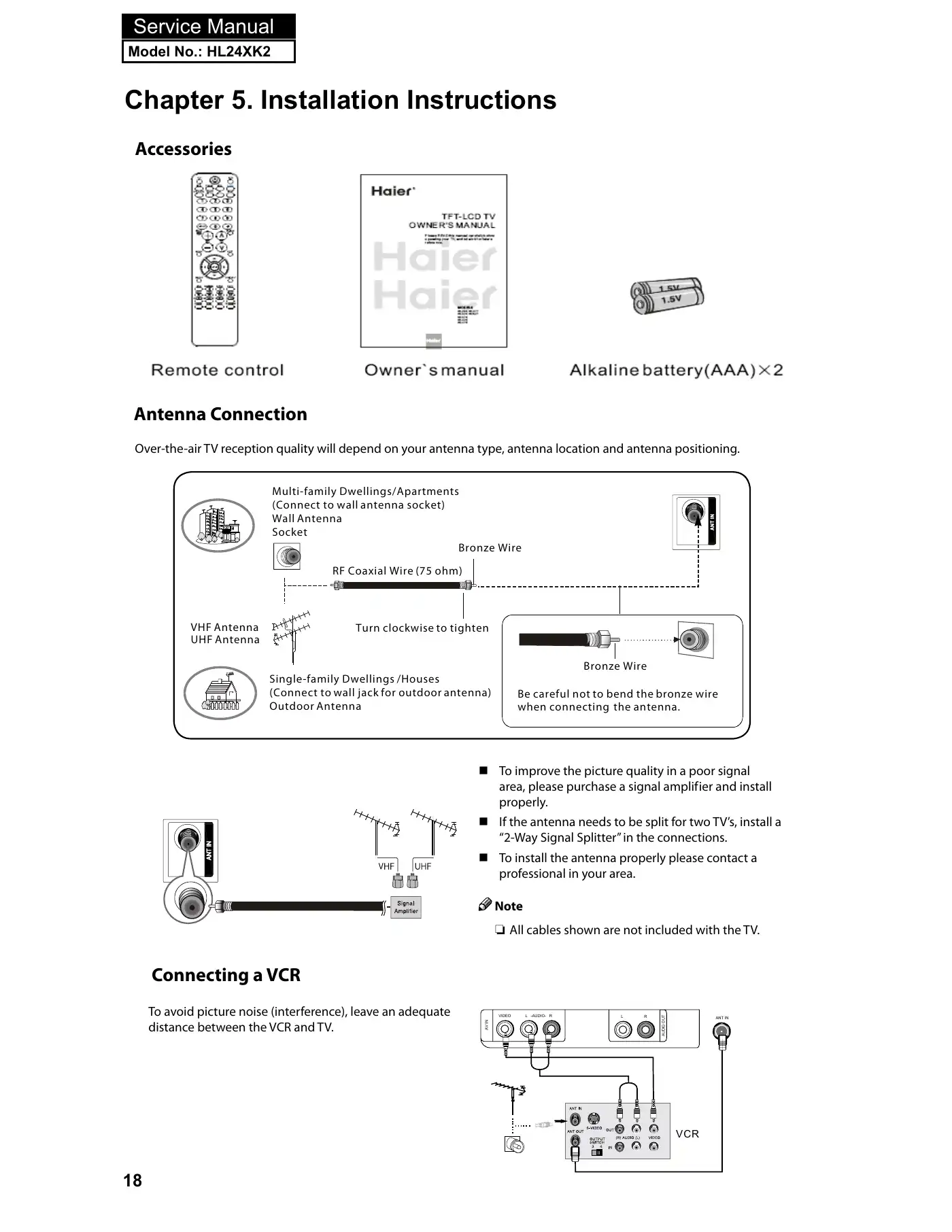

Chapter 5. Installation InstructionsService ManualModel No.: HL24XK218Over-the-air TV reception quality will depend on your antenna type, antenna location and antenna positioning.ANT INVHF AntennaUHF AntennaTurn clockwise to tightenBronze WireBe careful not to bend the bronze wirewhen connecting the antenna.Bronze WireMulti-family Dwellings/Apartments(Connect to wall antenna socket)Wall AntennaSocketRF Coaxial Wire (75 ohm)Single-family Dwellings /Houses(Connect to wall jack for outdoor antenna)Outdoor AntennaTo improve the picture quality in a poor signalarea, please purchase a signal amplifier and installproperly.If the antenna needs to be split for two TV’s, install a“2-Way Signal Splitter” in the connections.To install the antenna properly please contact aprofessional in your area.NoteAll cables shown are not included with the TV.RANT INAccessoriesAntenna ConnectionConnecting a VCRTo avoid picture noise (interference), leave an adequatedistance between the VCR and TV.VCRVIDEOAV INAUDIO OUTL RL -AUDIO- R ANT IN

/ 56

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

To turn on the TV using the front panel controls, refer to Chapter 6-1 of the manual for detailed instructions.

The Haier HL24XK2a has a screen size of 23.6 inches with a resolution of 1920x1080 pixels.

The response time of the Haier HL24XK2a is 5 milliseconds (gray to gray). The viewing angles are 170 degrees horizontally and 60 degrees vertically.

To connect your computer to the Haier HL24XK2 TV, follow these steps: Connect the audio and video cables from the external equipment’s output jacks to the TV input jacks. For the best picture quality, adjust the VGA graphics card to 1024x768 resolution. Use the TV’s VGA or DVI (Digital Visual Interface) port for video connections and the Audio IN port for audio connections. If your graphic card does not output analog and digital RGB simultaneously, connect only one of either VGA IN or HDMI IN. If it does output both, set the TV to either VGA or HDMI; the other mode will be set to Plug and Play automatically by the TV.

To connect headphones, plug a set of headphones into the 3.5mm mini-jack socket located on the rear panel of the TV.

The Haier HL24XK2 supports multiple video input options including HDMI, VGA, YPbPr, and Composite.

The backlight adjustment feature allows you to modify the brightness level of your display according to your preference.

First, verify that the television is properly plugged in and receiving power. Check if electricity is available. Then, press the INPUT button to change the signal input to TV input. Restart the television if the power supply was interrupted. Press the Mute button to ensure Mute mode is not set. Switch to another channel to see if the problem persists. Finally, press the VOL+ button to check if the issue can be resolved.

Verify that the sound system is correctly set up. Refer to the relevant chapter in the manual for adjustments.

A horizontal gray line on the screen indicates a TCP failure or panel failure.
