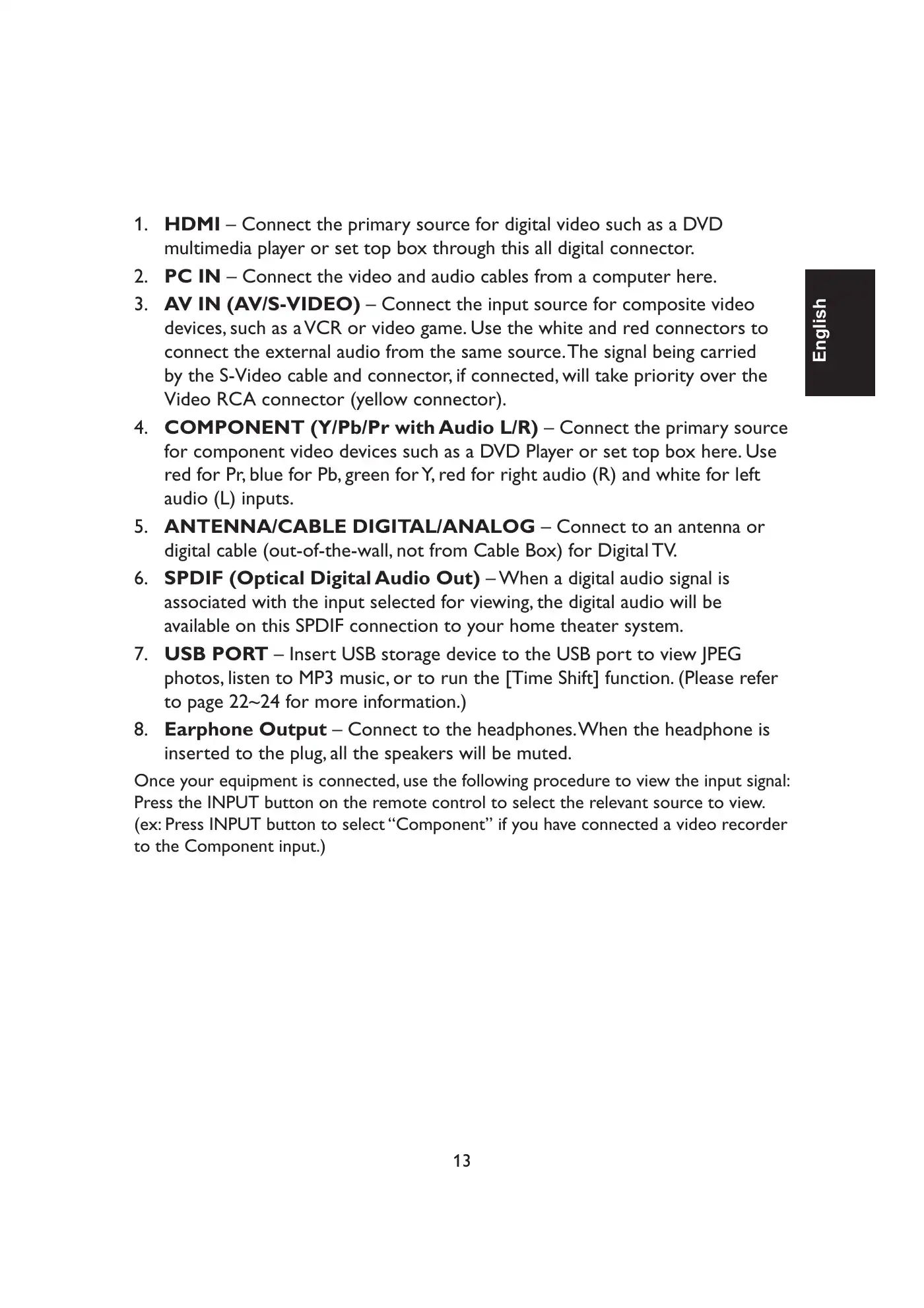

Haier HL22XLTW2a Owner's Manual Manual pdf 15 page image

13HDMI1. – Connect the primary source for digital video such as a DVDmultimedia player or set top box through this all digital connector.PC IN2. – Connect the video and audio cables from a computer here.AV IN (AV/S-VIDEO)3. – Connect the input source for composite videodevices, such as a VCR or video game. Use the white and red connectors toconnect the external audio from the same source. The signal being carriedby the S-Video cable and connector, if connected, will take priority over theVideo RCA connector (yellow connector).COMPONENT (Y/Pb/Pr with Audio L/R)4. – Connect the primary sourcefor component video devices such as a DVD Player or set top box here. Usered for Pr, blue for Pb, green for Y, red for right audio (R) and white for leftaudio (L) inputs.ANTENNA/CABLE DIGITAL/ANALOG5. – Connect to an antenna ordigital cable (out-of-the-wall, not from Cable Box) for Digital TV.SPDIF (Optical Digital Audio Out)6. – When a digital audio signal isassociated with the input selected for viewing, the digital audio will beavailable on this SPDIF connection to your home theater system.USB PORT7. – Insert USB storage device to the USB port to view JPEGphotos, listen to MP3 music, or to run the [Time Shift] function. (Please referto page 22~24 for more information.)Earphone Output8. – Connect to the headphones. When the headphone isinserted to the plug, all the speakers will be muted.Once your equipment is connected, use the following procedure to view the input signal:Press the INPUT button on the remote control to select the relevant source to view.(ex: Press INPUT button to select “Component” if you have connected a video recorderto the Component input.)hsilgnE
