Haier HL22XLT2 Service Manual

Also see for HL22XLT2: Owner's manual Owner's manual

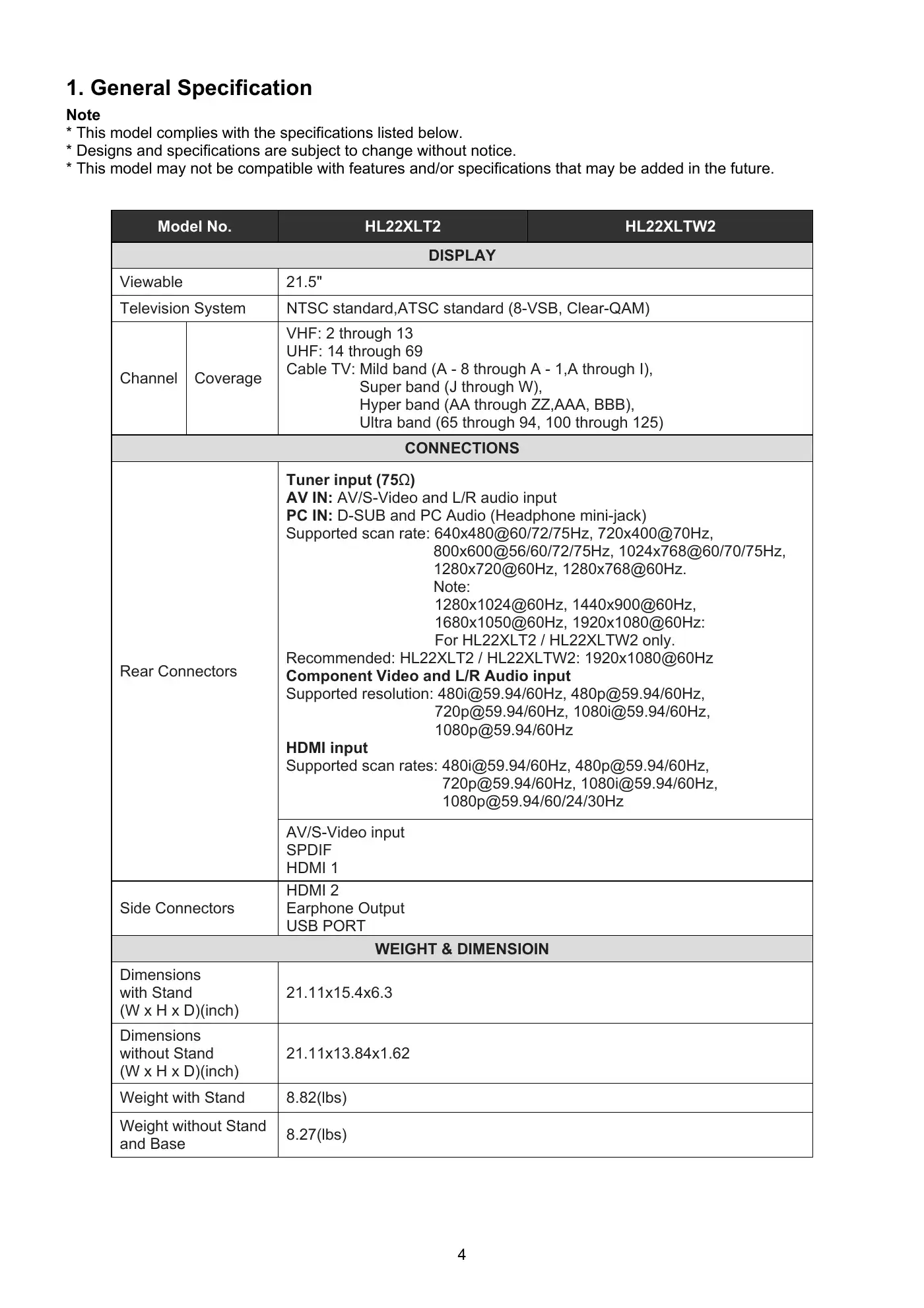

41. General SpecificationNote* This model complies with the specifications listed below.* Designs and specifications are subject to change without notice.* This model may not be compatible with features and/or specifications that may be added in the future.Model No. HL22XLT2 HL22XLTW2DISPLAYViewable 21.5"Television System NTSC standard,ATSC standard (8-VSB, Clear-QAM)Channel CoverageVHF: 2 through 13UHF: 14 through 69Cable TV: Mild band (A - 8 through A - 1,A through I),Super band (J through W),Hyper band (AA through ZZ,AAA, BBB),Ultra band (65 through 94, 100 through 125)CONNECTIONSRear ConnectorsTuner input (75Ω)AV IN: AV/S-Video and L/R audio inputPC IN: D-SUB and PC Audio (Headphone mini-jack)Supported scan rate: 640x480@60/72/75Hz, 720x400@70Hz,800x600@56/60/72/75Hz, 1024x768@60/70/75Hz,1280x720@60Hz, 1280x768@60Hz.Note:1280x1024@60Hz, 1440x900@60Hz,1680x1050@60Hz, 1920x1080@60Hz:For HL22XLT2 / HL22XLTW2 only.Recommended: HL22XLT2 / HL22XLTW2: 1920x1080@60HzComponent Video and L/R Audio inputSupported resolution: 480i@59.94/60Hz, 480p@59.94/60Hz,720p@59.94/60Hz, 1080i@59.94/60Hz,1080p@59.94/60HzHDMI inputSupported scan rates: 480i@59.94/60Hz, 480p@59.94/60Hz,720p@59.94/60Hz, 1080i@59.94/60Hz,1080p@59.94/60/24/30HzAV/S-Video inputSPDIFHDMI 1Side ConnectorsHDMI 2Earphone OutputUSB PORTWEIGHT & DIMENSIOINDimensionswith Stand(W x H x D)(inch)21.11x15.4x6.3Dimensionswithout Stand(W x H x D)(inch)21.11x13.84x1.62Weight with Stand 8.82(lbs)Weight without Standand Base 8.27(lbs)
