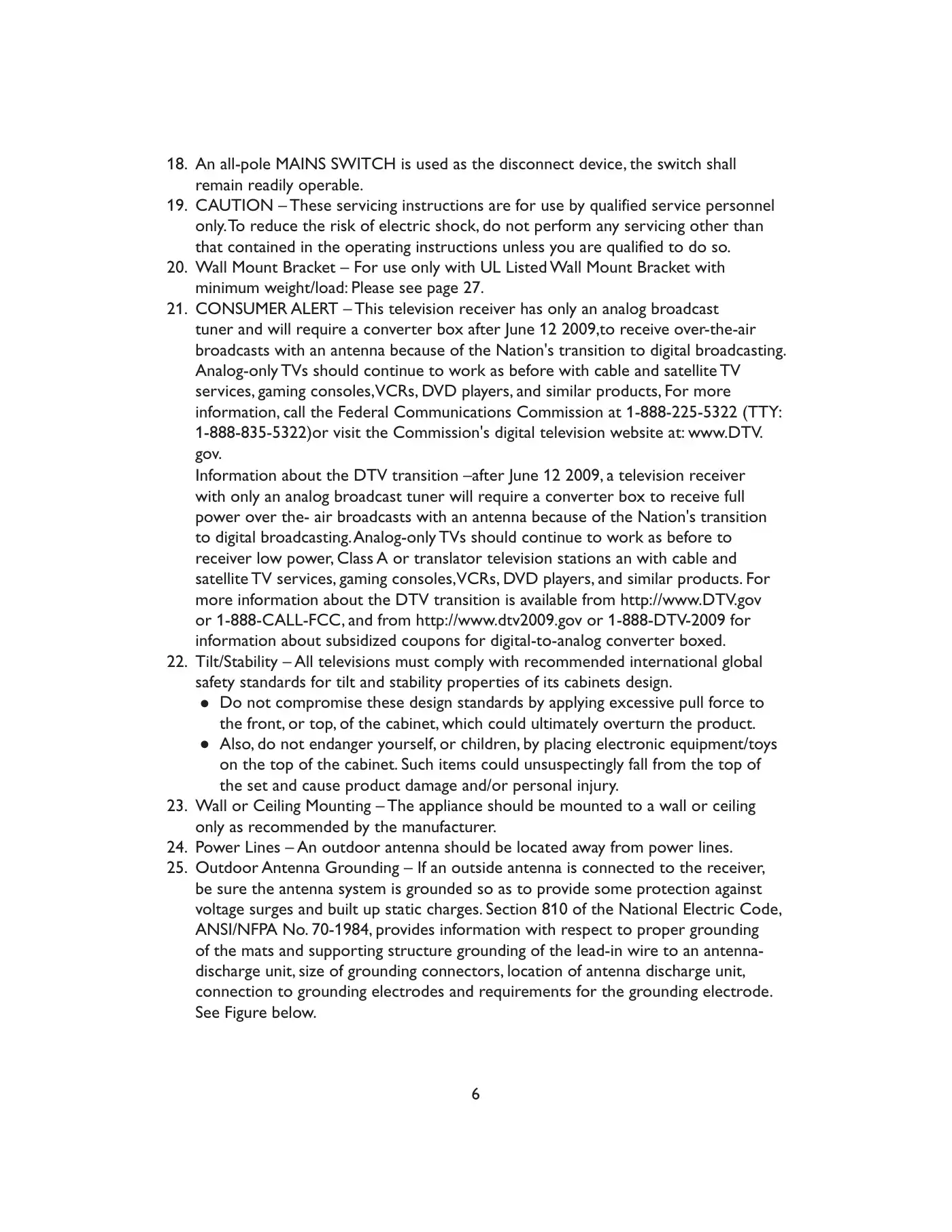

Haier HL22XLT2 Owner's Manual Manual pdf 8 page image

6An all-pole MAINS SWITCH is used as the disconnect device, the switch shall18.remain readily operable.CAUTION – These servicing instructions are for use by qualified service personnel19.only. To reduce the risk of electric shock, do not perform any servicing other thanthat contained in the operating instructions unless you are qualified to do so.Wall Mount Bracket – For use only with UL Listed Wall Mount Bracket with20.minimum weight/load: Please see page 27.CONSUMER ALERT – This television receiver has only an analog broadcast21.tuner and will require a converter box after June 12 2009,to receive over-the-airbroadcasts with an antenna because of the Nation's transition to digital broadcasting.Analog-only TVs should continue to work as before with cable and satellite TVservices, gaming consoles,VCRs, DVD players, and similar products, For moreinformation, call the Federal Communications Commission at 1-888-225-5322 (TTY:1-888-835-5322)or visit the Commission's digital television website at: www.DTV.gov.Information about the DTV transition –after June 12 2009, a television receiverwith only an analog broadcast tuner will require a converter box to receive fullpower over the- air broadcasts with an antenna because of the Nation's transitionto digital broadcasting. Analog-only TVs should continue to work as before toreceiver low power, Class A or translator television stations an with cable andsatellite TV services, gaming consoles,VCRs, DVD players, and similar products. Formore information about the DTV transition is available from http://www.DTV.govor 1-888-CALL-FCC, and from http://www.dtv2009.gov or 1-888-DTV-2009 forinformation about subsidized coupons for digital-to-analog converter boxed.Tilt/Stability – All televisions must comply with recommended international global22.safety standards for tilt and stability properties of its cabinets design.Do not compromise these design standards by applying excessive pull force toƔthe front, or top, of the cabinet, which could ultimately overturn the product.Also, do not endanger yourself, or children, by placing electronic equipment/toysƔon the top of the cabinet. Such items could unsuspectingly fall from the top ofthe set and cause product damage and/or personal injury.Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling23.only as recommended by the manufacturer.Power Lines – An outdoor antenna should be located away from power lines.24.Outdoor Antenna Grounding – If an outside antenna is connected to the receiver,25.be sure the antenna system is grounded so as to provide some protection againstvoltage surges and built up static charges. Section 810 of the National Electric Code,ANSI/NFPA No. 70-1984, provides information with respect to proper groundingof the mats and supporting structure grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antenna discharge unit,connection to grounding electrodes and requirements for the grounding electrode.See Figure below.

/ 108

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

The apparatus should not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, should be placed on the apparatus.

If the TV falls down or if foreign materials are put inside the TV box, you should unplug the TV immediately and contact a service professional for assistance.

Servicing instructions are for qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. If you are not qualified, contact a professional service technician.

Your Haier HL22XLT2 is ENERGY STAR 4.1 compliant, which means it is designed to use less energy while helping the environment and saving you money. To ensure efficient operation, follow the instructions in the manual and maintain the unit as recommended.

To use the back panel control, refer to the instructions provided on page 14 of the manual.

If the TV does not turn on, ensure that the power plug is securely connected to the wall outlet socket and that the power cord is properly inserted into the TV. Also, check that the batteries in the remote control are correctly inserted and have power.

To select the input source, press the INPUT button on the remote control to choose the relevant source you have connected, such as 'Component' for a video recorder.

To connect a DVD player, you can use the HDMI connector for a digital connection or the COMPONENT input for component video devices. For the COMPONENT input, use the red for Pr, blue for Pb, green for Y, red for right audio (R) and white for left audio (L) inputs.

To adjust the volume when the menu is not displayed, press the VOL+ or VOL- buttons on the remote control.

To adjust the video settings, press the Menu button to enter the main OSD. Navigate to the Video menu using the Navigation Ring. Here, you can adjust settings such as Picture Mode, Brightness, Contrast, Color Temp, Noise Reduction, Backlight, Aspect Ratio, and Preset items. Note that some adjustments may only be available in specific source modes, such as VGA.
