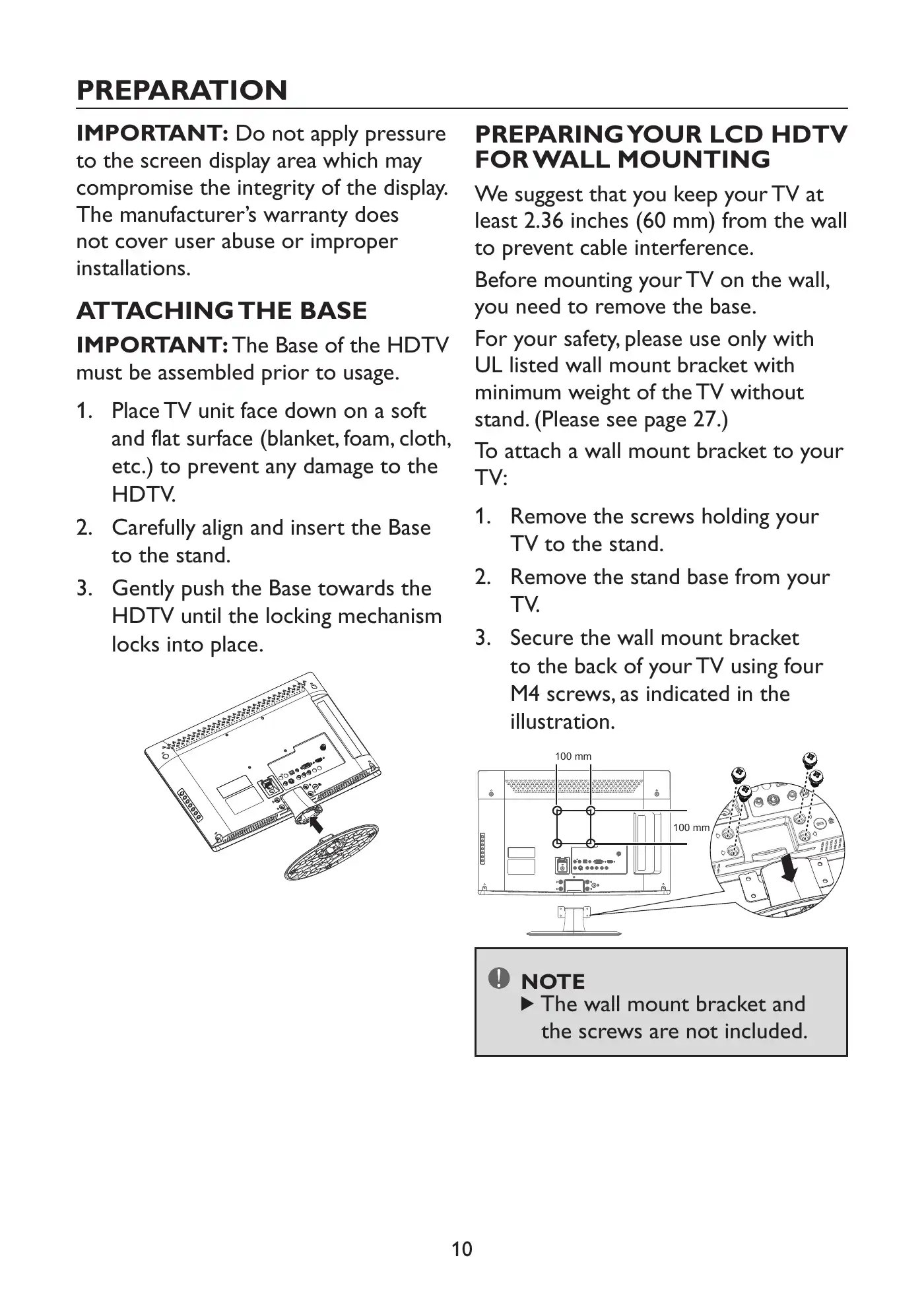

10IMPORTANT: Do not apply pressureto the screen display area which maycompromise the integrity of the display.The manufacturer’s warranty doesnot cover user abuse or improperinstallations.ATTACHING THE BASEIMPORTANT: The Base of the HDTVmust be assembled prior to usage.Place TV unit face down on a soft1.and flat surface (blanket, foam, cloth,etc.) to prevent any damage to theHDTV.Carefully align and insert the Base2.to the stand.Gently push the Base towards the3.HDTV until the locking mechanismlocks into place.PREPARING YOUR LCD HDTVFOR WALL MOUNTINGWe suggest that you keep your TV atleast 2.36 inches (60 mm) from the wallto prevent cable interference.Before mounting your TV on the wall,you need to remove the base.For your safety, please use only withUL listed wall mount bracket withminimum weight of the TV withoutstand. (Please see page 27.)To attach a wall mount bracket to yourTV:Remove the screws holding your1.TV to the stand.Remove the stand base from your2.TV.Secure the wall mount bracket3.to the back of your TV using fourM4 screws, as indicated in theillustration.100 mm100 mmNOTE The wall mount bracket andthe screws are not included.PREPARATION
