Haier HL19LE2 Service Manual
Haier HL19LE2 Service Manual
Also see for HL19LE2:
Owner's manual
Table of content
Contents
Table of Contents
1
Important Safety Notice
1
Revision List
2
1 General Specification
3
2 Operating Instructions
5
The Use of Remote Control
5
To Use the Menus
7
Front Panel Control Knobs
15
How to Connect
16
3 Input/Output Specification
17
4 Mechanical Instructions
20
5 Repair Flow Chart
23
6 PCB Layout
28
Main Board
28
Power Board
30
Key Board
36
IR Board
36
7 Adjustment
37
8 Block Diagram
38
9 Wiring Diagram
39
10 Schematic Diagram
40
Main Board
40
Power Board
50
Key Board
54
IR Board
55

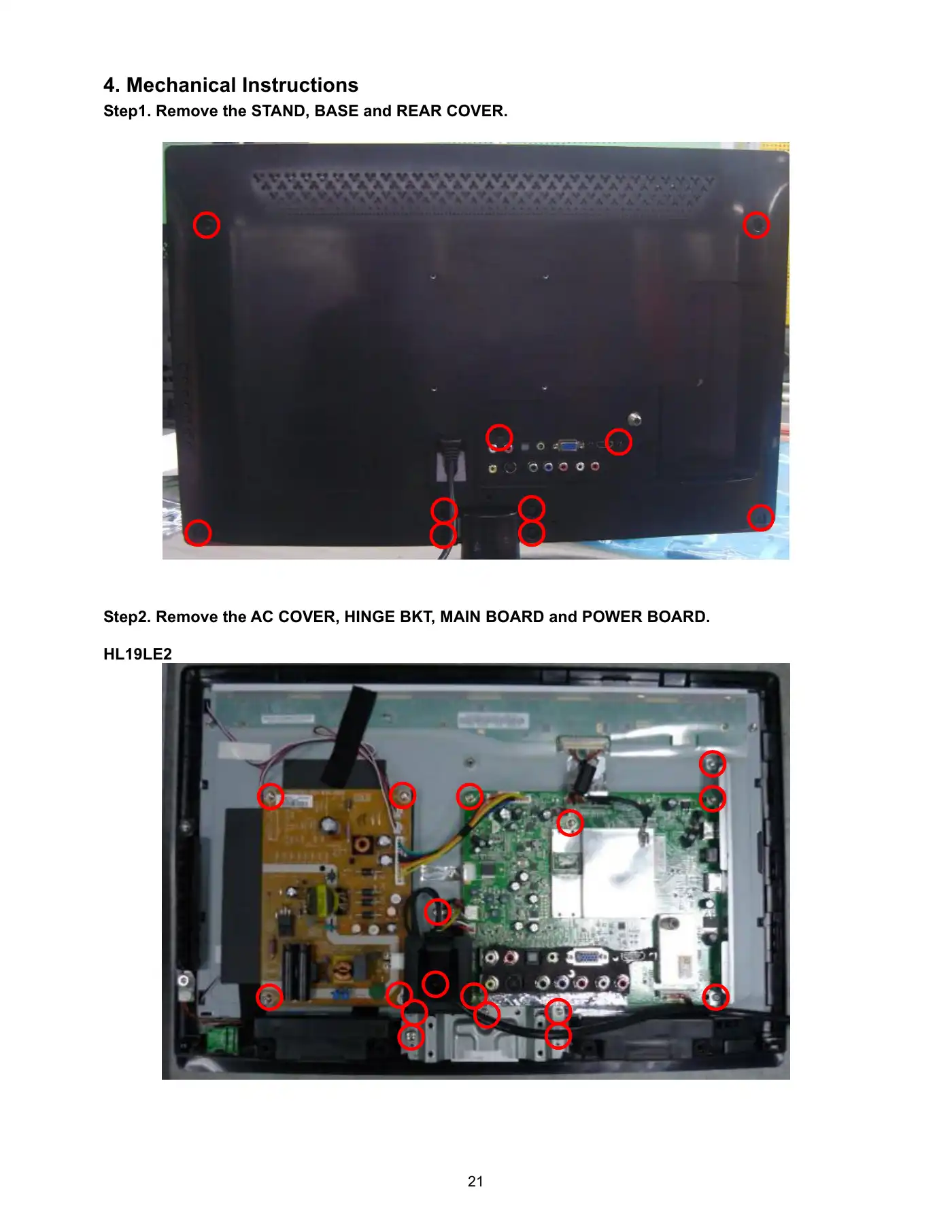

214. Mechanical InstructionsStep1. Remove the STAND, BASE and REAR COVER.Step2. Remove the AC COVER, HINGE BKT, MAIN BOARD and POWER BOARD.HL19LE2
