Haier HL19LE2 Service Manual

Also see for HL19LE2: Owner's manual

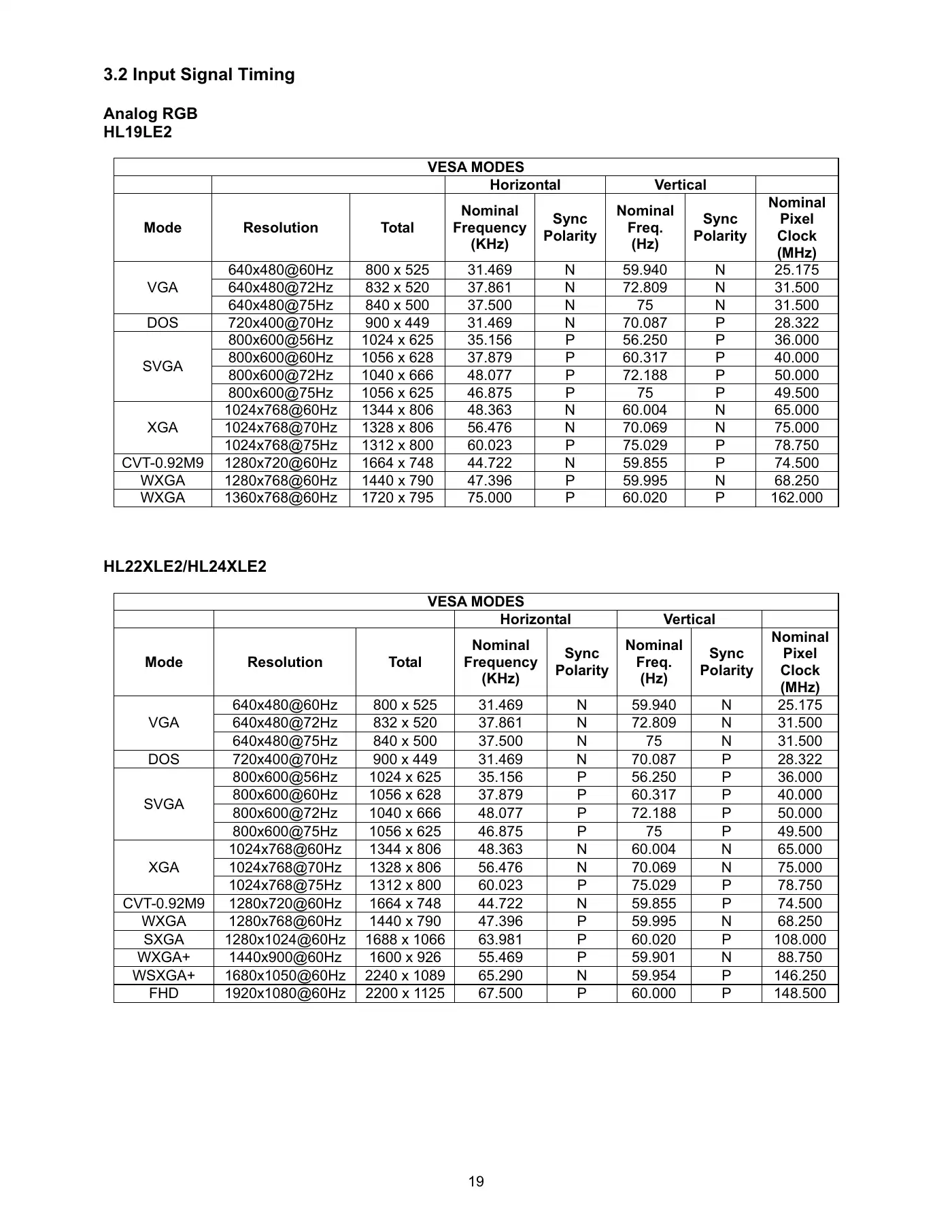

193.2 Input Signal TimingAnalog RGBHL19LE2VESA MODESHorizontal VerticalMode Resolution TotalNominalFrequency(KHz)SyncPolarityNominalFreq.(Hz)SyncPolarityNominalPixelClock(MHz)VGA640x480@60Hz 800 x 525 31.469 N 59.940 N 25.175640x480@72Hz 832 x 520 37.861 N 72.809 N 31.500640x480@75Hz 840 x 500 37.500 N 75 N 31.500DOS 720x400@70Hz 900 x 449 31.469 N 70.087 P 28.322SVGA800x600@56Hz 1024 x 625 35.156 P 56.250 P 36.000800x600@60Hz 1056 x 628 37.879 P 60.317 P 40.000800x600@72Hz 1040 x 666 48.077 P 72.188 P 50.000800x600@75Hz 1056 x 625 46.875 P 75 P 49.500XGA1024x768@60Hz 1344 x 806 48.363 N 60.004 N 65.0001024x768@70Hz 1328 x 806 56.476 N 70.069 N 75.0001024x768@75Hz 1312 x 800 60.023 P 75.029 P 78.750CVT-0.92M9 1280x720@60Hz 1664 x 748 44.722 N 59.855 P 74.500WXGA 1280x768@60Hz 1440 x 790 47.396 P 59.995 N 68.250WXGA 1360x768@60Hz 1720 x 795 75.000 P 60.020 P 162.000HL22XLE2/HL24XLE2VESA MODESHorizontal VerticalMode Resolution TotalNominalFrequency(KHz)SyncPolarityNominalFreq.(Hz)SyncPolarityNominalPixelClock(MHz)VGA640x480@60Hz 800 x 525 31.469 N 59.940 N 25.175640x480@72Hz 832 x 520 37.861 N 72.809 N 31.500640x480@75Hz 840 x 500 37.500 N 75 N 31.500DOS 720x400@70Hz 900 x 449 31.469 N 70.087 P 28.322SVGA800x600@56Hz 1024 x 625 35.156 P 56.250 P 36.000800x600@60Hz 1056 x 628 37.879 P 60.317 P 40.000800x600@72Hz 1040 x 666 48.077 P 72.188 P 50.000800x600@75Hz 1056 x 625 46.875 P 75 P 49.500XGA1024x768@60Hz 1344 x 806 48.363 N 60.004 N 65.0001024x768@70Hz 1328 x 806 56.476 N 70.069 N 75.0001024x768@75Hz 1312 x 800 60.023 P 75.029 P 78.750CVT-0.92M9 1280x720@60Hz 1664 x 748 44.722 N 59.855 P 74.500WXGA 1280x768@60Hz 1440 x 790 47.396 P 59.995 N 68.250SXGA 1280x1024@60Hz 1688 x 1066 63.981 P 60.020 P 108.000WXGA+ 1440x900@60Hz 1600 x 926 55.469 P 59.901 N 88.750WSXGA+ 1680x1050@60Hz 2240 x 1089 65.290 N 59.954 P 146.250FHD 1920x1080@60Hz 2200 x 1125 67.500 P 60.000 P 148.500
