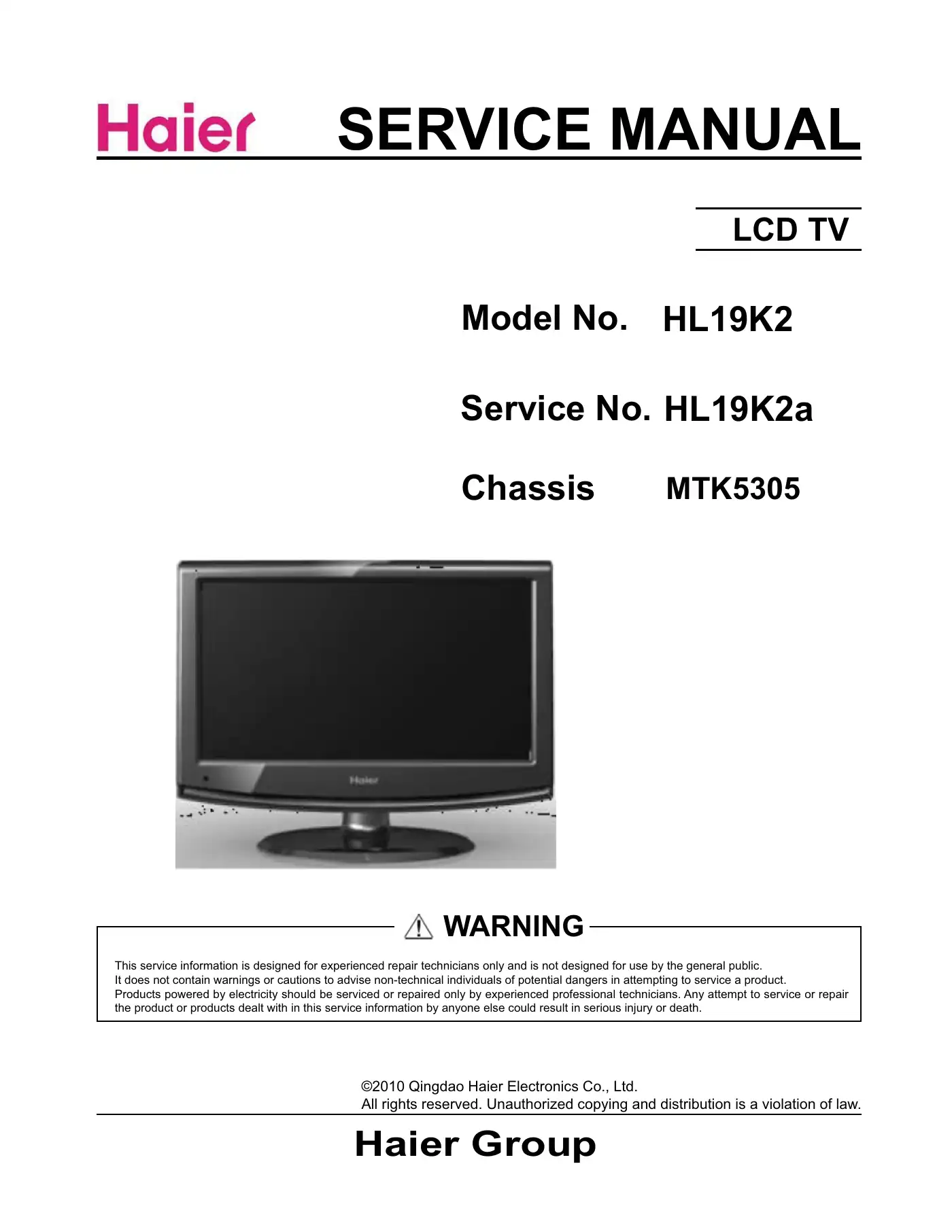

Haier HL19K2A Service Manual

The instructions for setting up the remote control are provided in section 6-3 of the manual. Please refer to that section for detailed steps.

The Haier HL19K2 supports a maximum resolution of 1366x768.

To improve the picture quality in a poor signal area, you can purchase a signal amplifier and install it properly. This will help boost the signal strength and improve reception.

If you need to split the antenna signal for two TVs, you should install a '2-Way Signal Splitter' in the connections. This will allow both TVs to receive the signal without any issues.

To connect a source device with a DVI output to the Haier HL19K2A TV, you need to use an HDMI-to-DVI cable (not supplied with the product). Connect the source device to the HDMI port of the TV with the HDMI-to-DVI cable. Additionally, you will need a separate audio connection. If the source device has an analog audio output connector, connect the source device's audio output to the DVI Audio In port located on the left side of the HDMI port.

If the television does not respond to the remote control, ensure that there is no obstacle between the remote controller and the television set. Also, make sure that the remote controller is aimed at the remote sensor on the TV. Additionally, strong light may interfere with the signals, so try changing your position to operate the remote controller.

If the color appears abnormal on your Haier HL19K2A, you can use the 'Auto Color' function to adjust it automatically. This function is available for models with VGA and Component inputs.

The 'Color Temperature' function on the Haier HL19K2A is used to adjust the color temperature of the display, which can be helpful during the debugging process.

The gamma settings on the Haier HL19K2 can be adjusted to three levels: Bright (GAMMA0.8), Middle (default settings), and Dark (GAMMA1.2). You can select the appropriate setting based on your viewing preferences.

The backlight adjustment feature on the Haier HL19K2 allows you to modify the brightness of the display. This can be useful for optimizing the viewing experience in different lighting conditions.
