Haier HBS01 Operation Manual

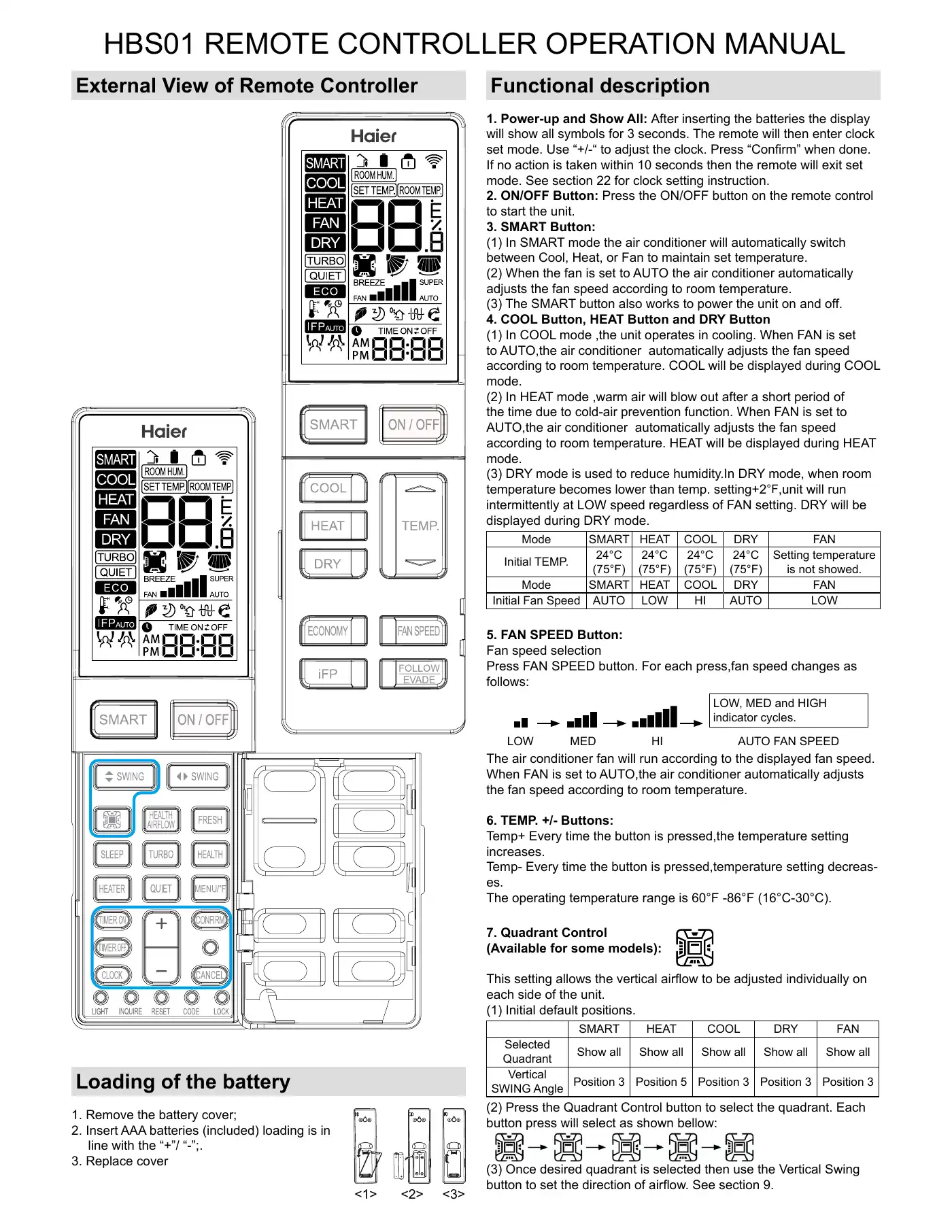

HBS01 REMOTE CONTROLLER OPERATION MANUALExternal View of Remote ControllerLoading of the battery1. Remove the battery cover;2. Insert AAA batteries (included) loading is inline with the “+”/ “-”;.3. Replace cover<1> <2> <3>Functional description1. Power-up and Show All: After inserting the batteries the displaywill show all symbols for 3 seconds. The remote will then enter clockset mode. Use “+/-“ to adjust the clock. Press “Confirm” when done.If no action is taken within 10 seconds then the remote will exit setmode. See section 22 for clock setting instruction.2. ON/OFF Button: Press the ON/OFF button on the remote controlto start the unit.3. SMART Button:(1) In SMART mode the air conditioner will automatically switchbetween Cool, Heat, or Fan to maintain set temperature.(2) When the fan is set to AUTO the air conditioner automaticallyadjusts the fan speed according to room temperature.(3) The SMART button also works to power the unit on and off.4. COOL Button, HEAT Button and DRY Button(1) In COOL mode ,the unit operates in cooling. When FAN is setto AUTO,the air conditioner automatically adjusts the fan speedaccording to room temperature. COOL will be displayed during COOLmode.(2) In HEAT mode ,warm air will blow out after a short period ofthe time due to cold-air prevention function. When FAN is set toAUTO,the air conditioner automatically adjusts the fan speedaccording to room temperature. HEAT will be displayed during HEATmode.(3) DRY mode is used to reduce humidity.In DRY mode, when roomtemperature becomes lower than temp. setting+2 °F,unit will runintermittently at LOW speed regardless of FAN setting. DRY will bedisplayed during DRY mode.Mode SMART HEAT COOL DRY FANInitial TEMP. 24°C(75°F)24°C(75°F)24°C(75°F)24°C(75°F)Setting temperatureis not showed.Mode SMART HEAT COOL DRY FANInitial Fan Speed AUTO LOW HI AUTO LOW5. FAN SPEED Button:Fan speed selectionPress FAN SPEED button. For each press,fan speed changes asfollows:The air conditioner fan will run according to the displayed fan speed.When FAN is set to AUTO,the air conditioner automatically adjuststhe fan speed according to room temperature.6. TEMP. +/- Buttons:Temp+ Every time the button is pressed,the temperature settingincreases.Temp- Every time the button is pressed,temperature setting decreas-es.The operating temperature range is 60°F -86°F (16°C-30°C).7. Quadrant Control(Available for some models):This setting allows the vertical airflow to be adjusted individually oneach side of the unit.(1) Initial default positions.SMART HEAT COOL DRY FANSelectedQuadrant Show all Show all Show all Show all Show allVerticalSWING Angle Position 3 Position 5 Position 3 Position 3 Position 3(2) Press the Quadrant Control button to select the quadrant. Eachbutton press will select as shown bellow:(3) Once desired quadrant is selected then use the Vertical Swingbutton to set the direction of airflow. See section 9.LOW, MED and HIGHindicator cycles.LOW MED HI AUTO FAN SPEED

/ 2
