Haier HBR-1301AA User Manual

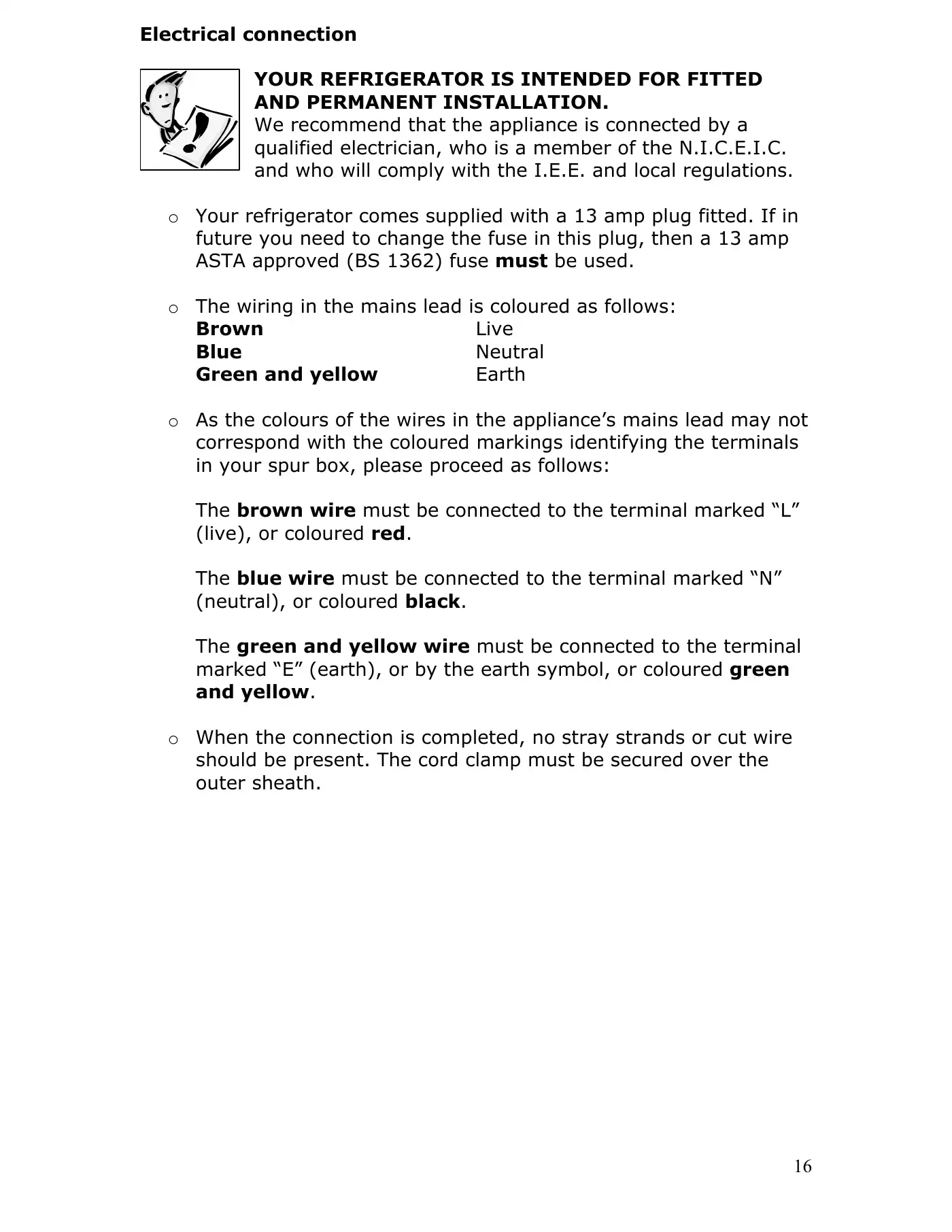

Electrical connectionYOUR REFRIGERATOR IS INTENDED FOR FITTEDAND PERMANENT INSTALLATION.We recommend that the appliance is connected by aqualified electrician, who is a member of the N.I.C.E.I.C.and who will comply with the I.E.E. and local regulations.o Your refrigerator comes supplied with a 13 amp plug fitted. If infuture you need to change the fuse in this plug, then a 13 ampASTA approved (BS 1362) fuse must be used.o The wiring in the mains lead is coloured as follows:Brown LiveBlue NeutralGreen and yellow Eartho As the colours of the wires in the appliance’s mains lead may notcorrespond with the coloured markings identifying the terminalsin your spur box, please proceed as follows:The brown wire must be connected to the terminal marked “L”(live), or coloured red.The blue wire must be connected to the terminal marked “N”(neutral), or coloured black.The green and yellow wire must be connected to the terminalmarked “E” (earth), or by the earth symbol, or coloured greenand yellow.o When the connection is completed, no stray strands or cut wireshould be present. The cord clamp must be secured over theouter sheath.16

/ 26
