Haier HBC-200 Service Manual

Also see for HBC-200:

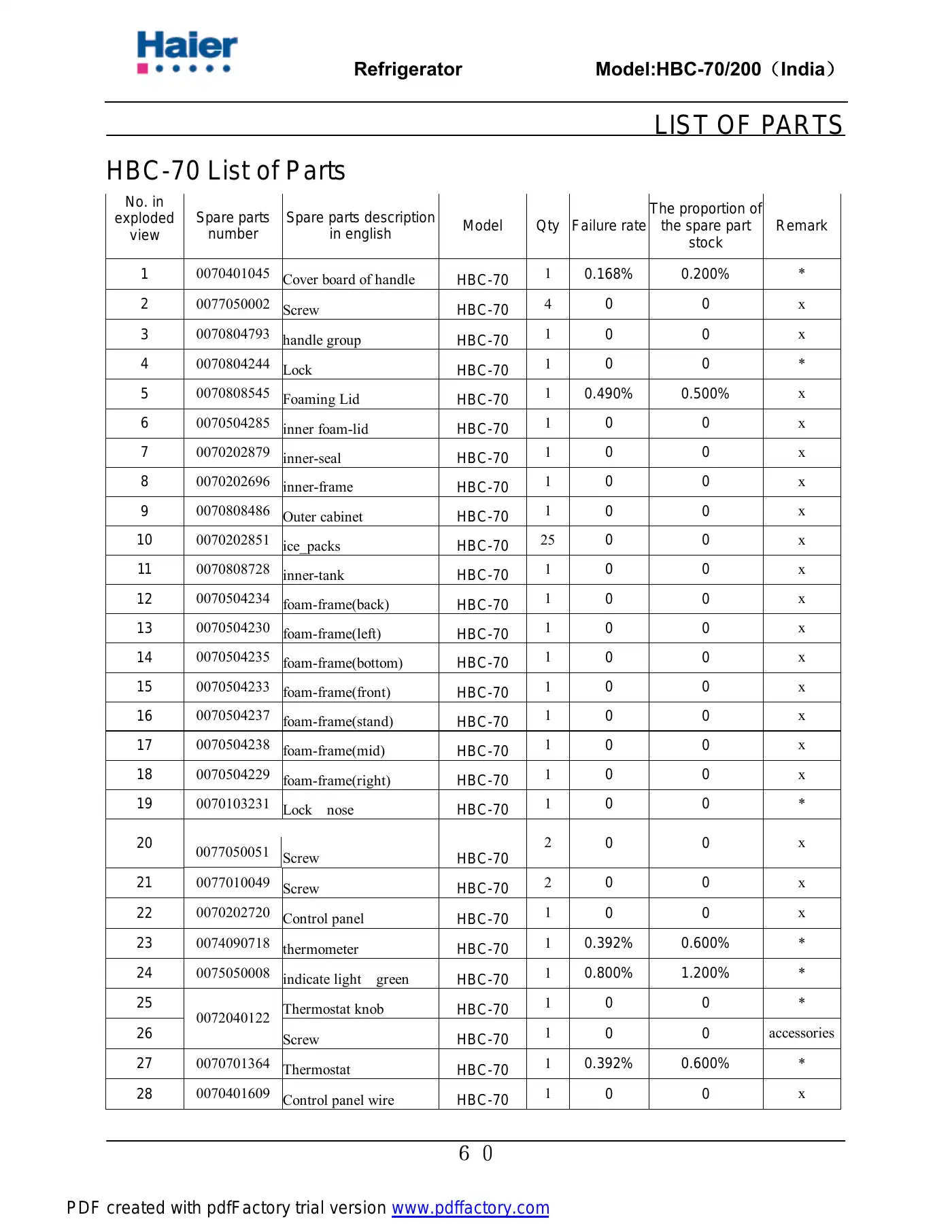

Refrigerator Model:HBC-70/200（India）６０LIST OF PARTSHBC-70 List of PartsNo. inexplodedviewSpare partsnumberSpare parts descriptionin english Model Qty Failure rateThe proportion ofthe spare partstockRemark1 0070401045 Cover board of handle HBC-70 1 0.168% 0.200% *2 0077050002 Screw HBC-70 4 0 0 x3 0070804793 handle group HBC-70 1 0 0 x4 0070804244 Lock HBC-70 1 0 0 *5 0070808545 Foaming Lid HBC-70 1 0.490% 0.500% x6 0070504285 inner foam-lid HBC-70 1 0 0 x7 0070202879 inner-seal HBC-70 1 0 0 x8 0070202696 inner-frame HBC-70 1 0 0 x9 0070808486 Outer cabinet HBC-70 1 0 0 x10 0070202851 ice_packs HBC-70 25 0 0 x11 0070808728 inner-tank HBC-70 1 0 0 x12 0070504234 foam-frame(back) HBC-70 1 0 0 x13 0070504230 foam-frame(left) HBC-70 1 0 0 x14 0070504235 foam-frame(bottom) HBC-70 1 0 0 x15 0070504233 foam-frame(front) HBC-70 1 0 0 x16 0070504237 foam-frame(stand) HBC-70 1 0 0 x17 0070504238 foam-frame(mid) HBC-70 1 0 0 x18 0070504229 foam-frame(right) HBC-70 1 0 0 x19 0070103231 Lock nose HBC-70 1 0 0 *20 0077050051 Screw HBC-702 0 0 x21 0077010049 Screw HBC-70 2 0 0 x22 0070202720 Control panel HBC-70 1 0 0 x23 0074090718 thermometer HBC-70 1 0.392% 0.600% *24 0075050008 indicate light green HBC-70 1 0.800% 1.200% *25 Thermostat knob HBC-70 1 0 0 *260072040122Screw HBC-70 1 0 0 accessories27 0070701364 Thermostat HBC-70 1 0.392% 0.600% *28 0070401609 Control panel wire HBC-70 1 0 0 xPDF created with pdfFactory trial version www.pdffactory.com
