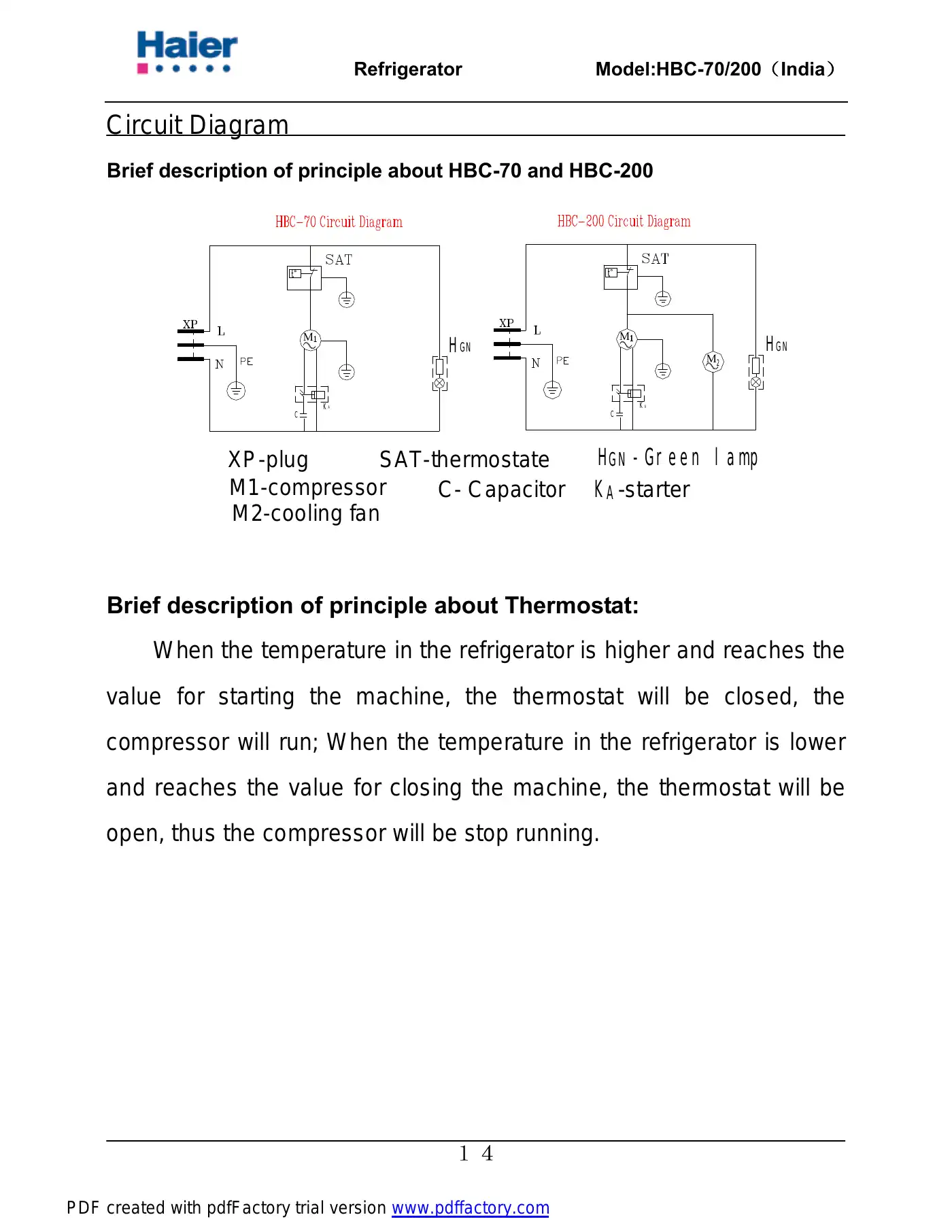

Refrigerator Model:HBC-70/200（India）１４Circuit DiagramBrief description of principle about HBC-70 and HBC-200GNC- CapacitorH -Green lampXP-plug SAT-thermostateM2-cooling fanM1-compressor AK -starterGNCMKAH2MAKGN MHCBrief description of principle about Thermostat:When the temperature in the refrigerator is higher and reaches thevalue for starting the machine, the thermostat will be closed, thecompressor will run; When the temperature in the refrigerator is lowerand reaches the value for closing the machine, the thermostat will beopen, thus the compressor will be stop running.PDF created with pdfFactory trial version www.pdffactory.com

/ 67
