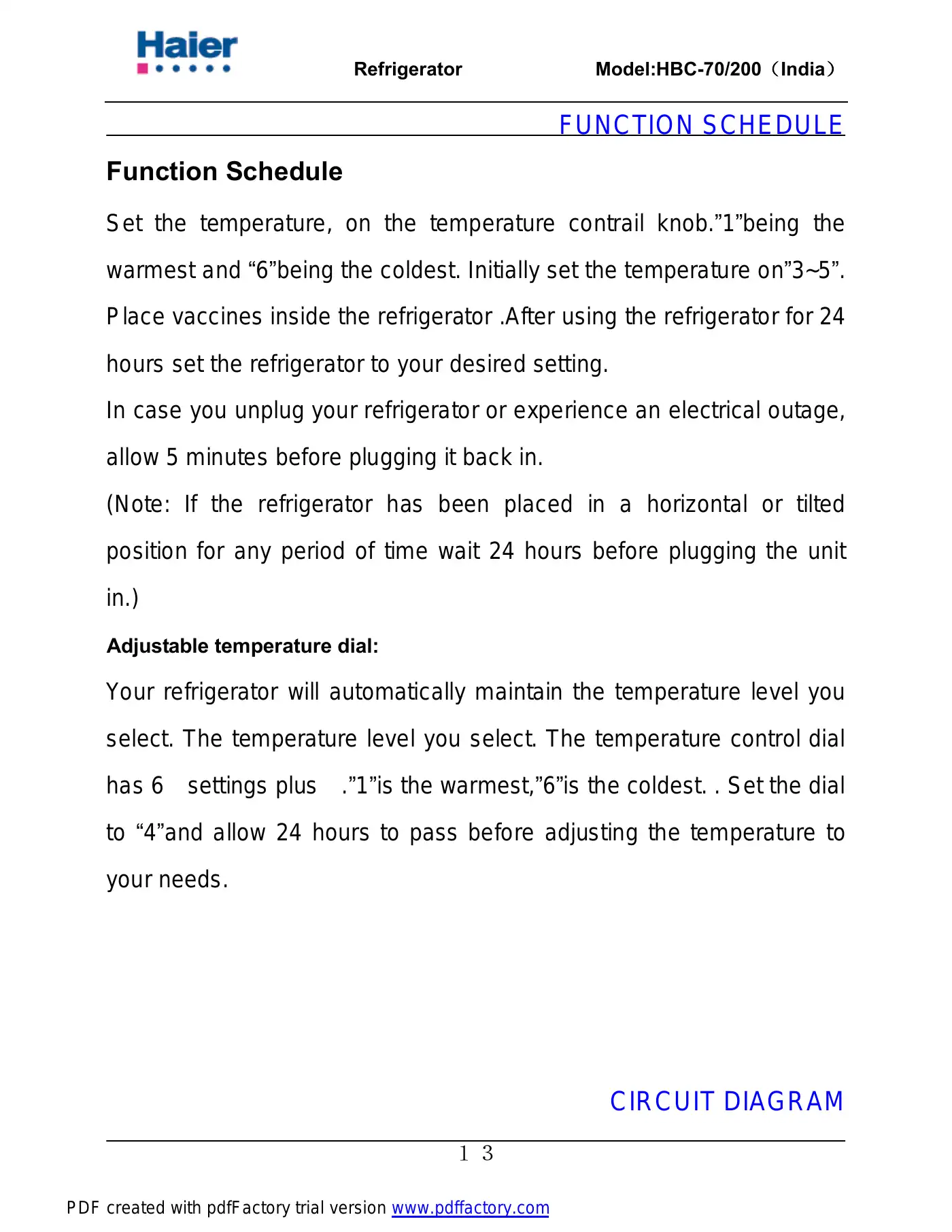

Refrigerator Model:HBC-70/200（India）１３FUNCTION SCHEDULEFunction ScheduleSet the temperature, on the temperature contrail knob.”1”being thewarmest and “6”being the coldest. Initially set the temperature on”3~5”.Place vaccines inside the refrigerator .After using the refrigerator for 24hours set the refrigerator to your desired setting.In case you unplug your refrigerator or experience an electrical outage,allow 5 minutes before plugging it back in.(Note: If the refrigerator has been placed in a horizontal or tiltedposition for any period of time wait 24 hours before plugging the unitin.)Adjustable temperature dial:Your refrigerator will automatically maintain the temperature level youselect. The temperature level you select. The temperature control dialhas 6 settings plus .”1”is the warmest,”6”is the coldest. . Set the dialto “4”and allow 24 hours to pass before adjusting the temperature toyour needs.CIRCUIT DIAGRAMPDF created with pdfFactory trial version www.pdffactory.com
