Haier HB21FWRSS Service Manual

Also see for HB21FWRSS: Installation and user manual

Contents
  1. Table of Contents2
  2. Safety Precautions3
  3. Specifications5
  4. Parts Identifications7
  5. Disassembly8
  6. Control and Display System15
  7. Refrigeration Principle21
  8. Circuit Diagram22
  9. Sensor and Malfunction Code23
  10. Electrical Control Principle25
  11. Troubleshooting32
Haier HB21FWRSS Service Manual Manual pdf 1 page image

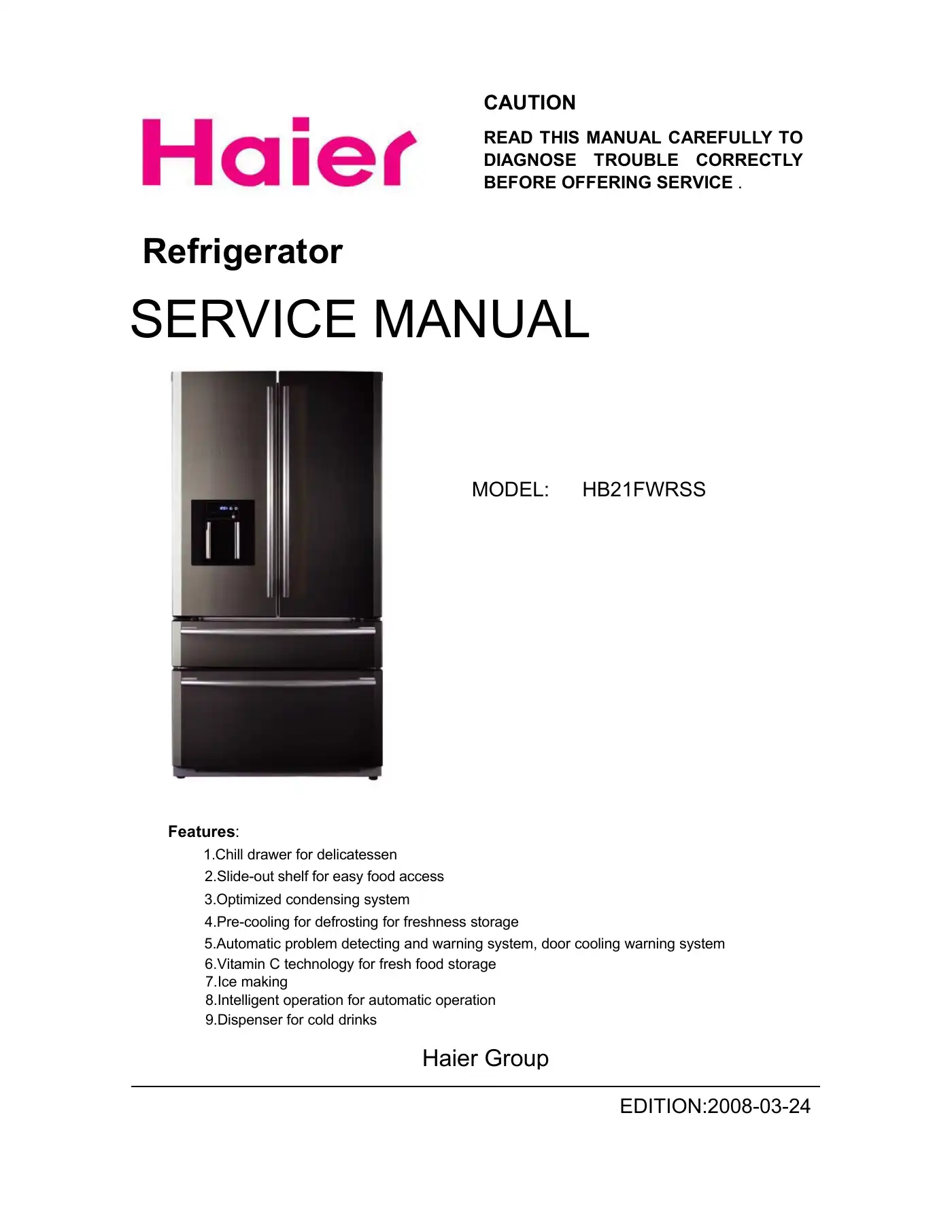

CAUTIONREAD THIS MANUAL CAREFULLY TODIAGNOSE TROUBLE CORRECTLYBEFORE OFFERING SERVICE .RefrigeratorSERVICE MANUALFeatures:1.Chill drawer for delicatessen2.Slide-out shelf for easy food access3.Optimized condensing system4.Pre-cooling for defrosting for freshness storage5.Automatic problem detecting and warning system, door cooling warning systemMODEL: HB21FWRSSHaier Group6.Vitamin C technology for fresh food storage7.Ice making8.Intelligent operation for automatic operation9.Dispenser for cold drinksEDITION:2008-03-24
