Haier H50K6UG User Manual

Contents

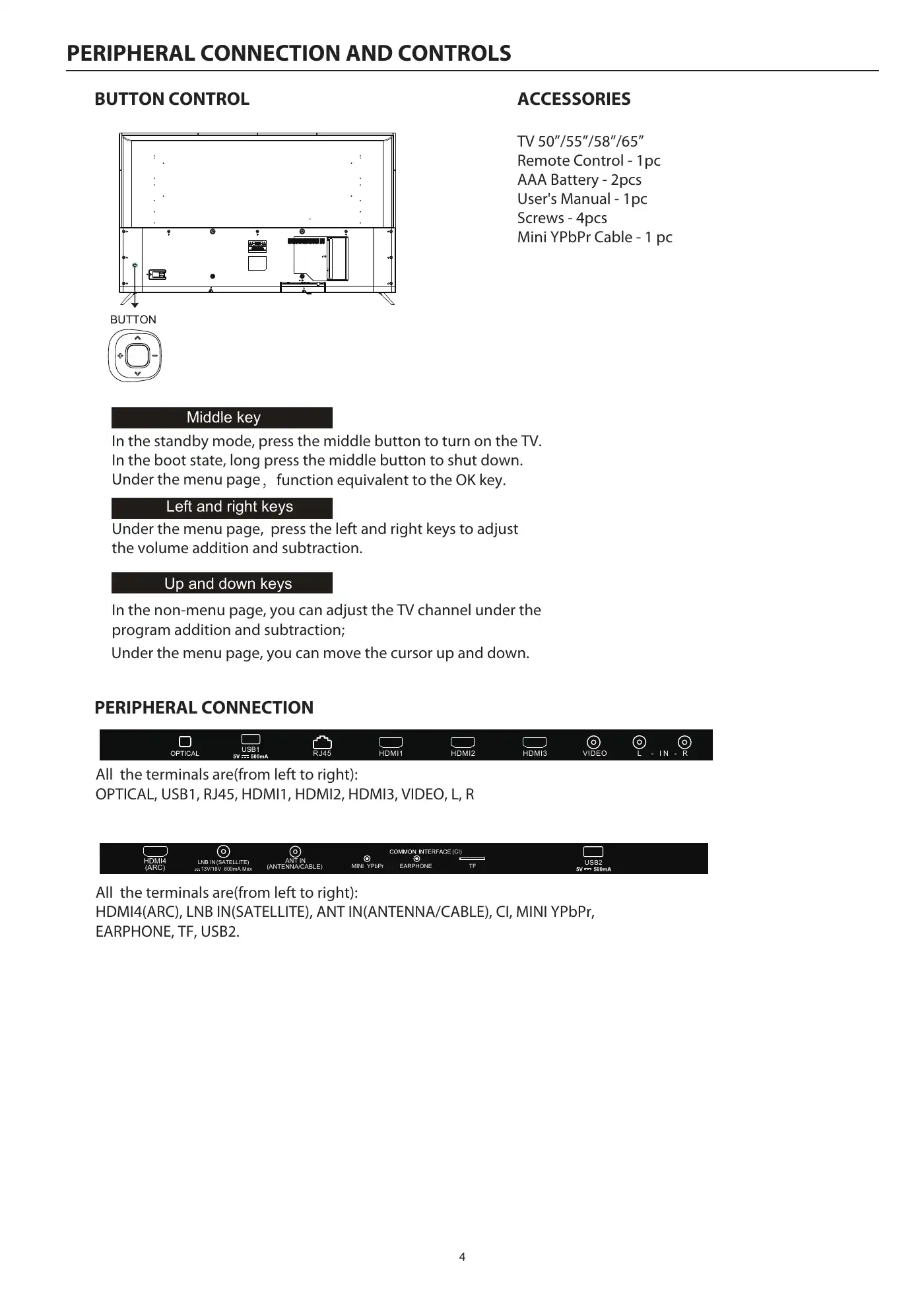

PERIPHERAL CONNECTION AND CONTROLSPERIPHERAL CONNECTIONAll the terminals are(from left to right):OPTICAL, USB1, RJ45, HDMI1, HDMI2, HDMI3, VIDEO, L, RAll the terminals are(from left to right):HDMI4(ARC), LNB IN(SATELLITE), ANT IN(ANTENNA/CABLE), CI, MINI YPbPr,EARPHONE, TF, USB2.BUTTON CONTROLBUTTONMiddle keyUp and down keysLeft and right keysUnder the menu page, press the left and right keys to adjustthe volume addition and subtraction.In the standby mode, press the middle button to turn on the TV.ACCESSORIESTV 50”/55”/58”/65”Remote Control - 1pcAAA Battery - 2pcsUser's Manual - 1pcScrews - 4pcsMini YPbPr Cable - 1 pcIn the boot state, long press the middle button to shut down.In the non-menu page, you can adjust the TV channel under theprogram addition and subtraction;Under the menu page, you can move the cursor up and down.Under the menu page function equivalent to the OK key.4EARPHONE TFMINI YPbPr(CI)HDMI4(ARC) ANT IN(ANTENNA/CABLE)LNB IN (SATELLITE)13V/18V 600mA MaxUSB2USB1 HDMI2 HDMI3HDMI1RJ45 L - I N - RVIDEOOPTICAL

/ 25
