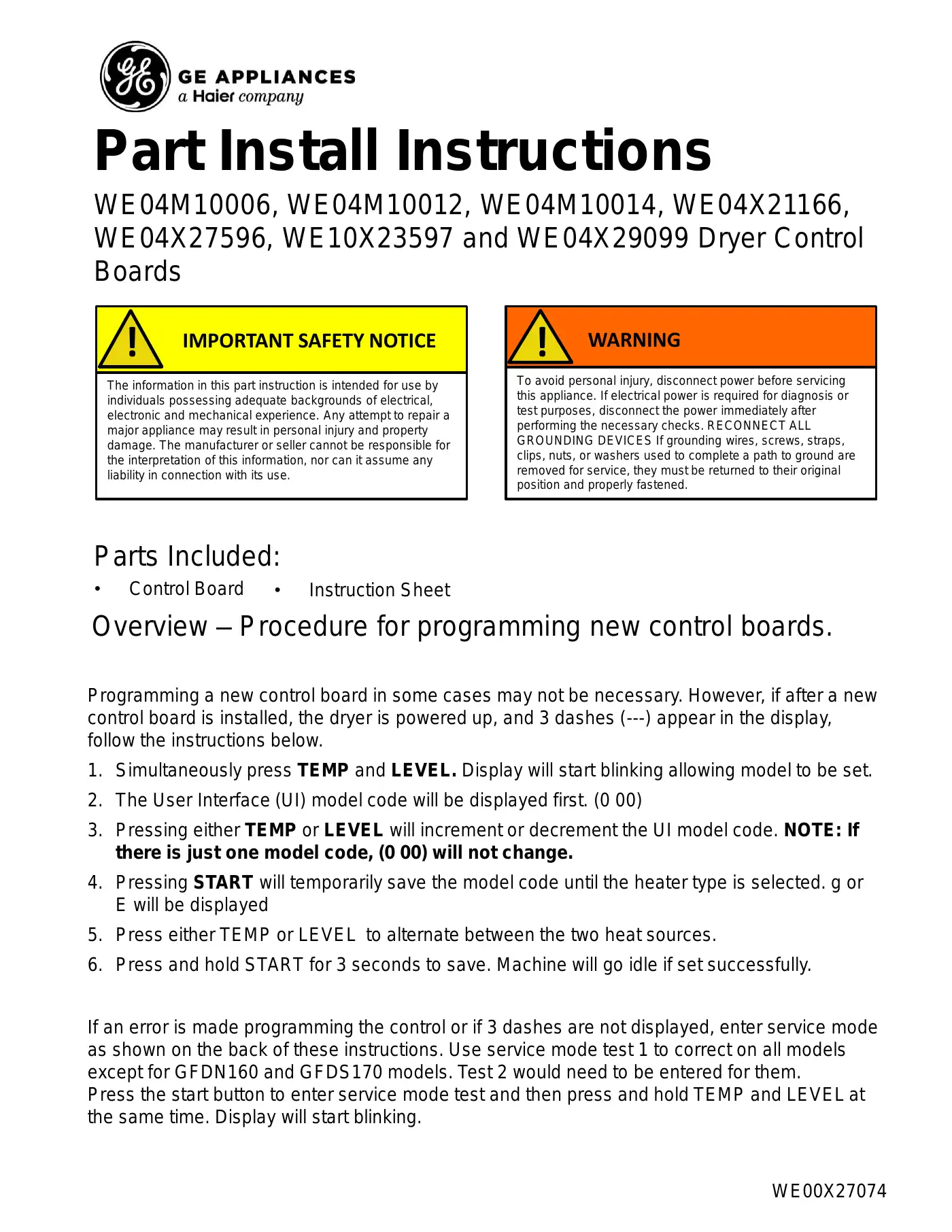

WE00X27074Part Install InstructionsWE04M10006, WE04M10012, WE04M10014, WE04X21166,WE04X27596, WE10X23597 and WE04X29099 Dryer ControlBoardsProgramming a new control board in some cases may not be necessary. However, if after a newcontrol board is installed, the dryer is powered up, and 3 dashes (---) appear in the display,follow the instructions below.1. Simultaneously press TEMP and LEVEL. Display will start blinking allowing model to be set.2. The User Interface (UI) model code will be displayed first. (0 00)3. Pressing either TEMP or LEVEL will increment or decrement the UI model code. NOTE: Ifthere is just one model code, (0 00) will not change.4. Pressing START will temporarily save the model code until the heater type is selected. g orE will be displayed5. Press either TEMP or LEVEL to alternate between the two heat sources.6. Press and hold START for 3 seconds to save. Machine will go idle if set successfully.! IMPORTANT SAFETY NOTICEThe information in this part instruction is intended for use byindividuals possessing adequate backgrounds of electrical,electronic and mechanical experience. Any attempt to repair amajor appliance may result in personal injury and propertydamage. The manufacturer or seller cannot be responsible forthe interpretation of this information, nor can it assume anyliability in connection with its use.! WARNINGTo avoid personal injury, disconnect power before servicingthis appliance. If electrical power is required for diagnosis ortest purposes, disconnect the power immediately afterperforming the necessary checks. RECONNECT ALLGROUNDING DEVICES If grounding wires, screws, straps,clips, nuts, or washers used to complete a path to ground areremoved for service, they must be returned to their originalposition and properly fastened.Parts Included:• Control Board • Instruction SheetOverview – Procedure for programming new control boards.If an error is made programming the control or if 3 dashes are not displayed, enter service modeas shown on the back of these instructions. Use service mode test 1 to correct on all modelsexcept for GFDN160 and GFDS170 models. Test 2 would need to be entered for them.Press the start button to enter service mode test and then press and hold TEMP and LEVEL atthe same time. Display will start blinking.
