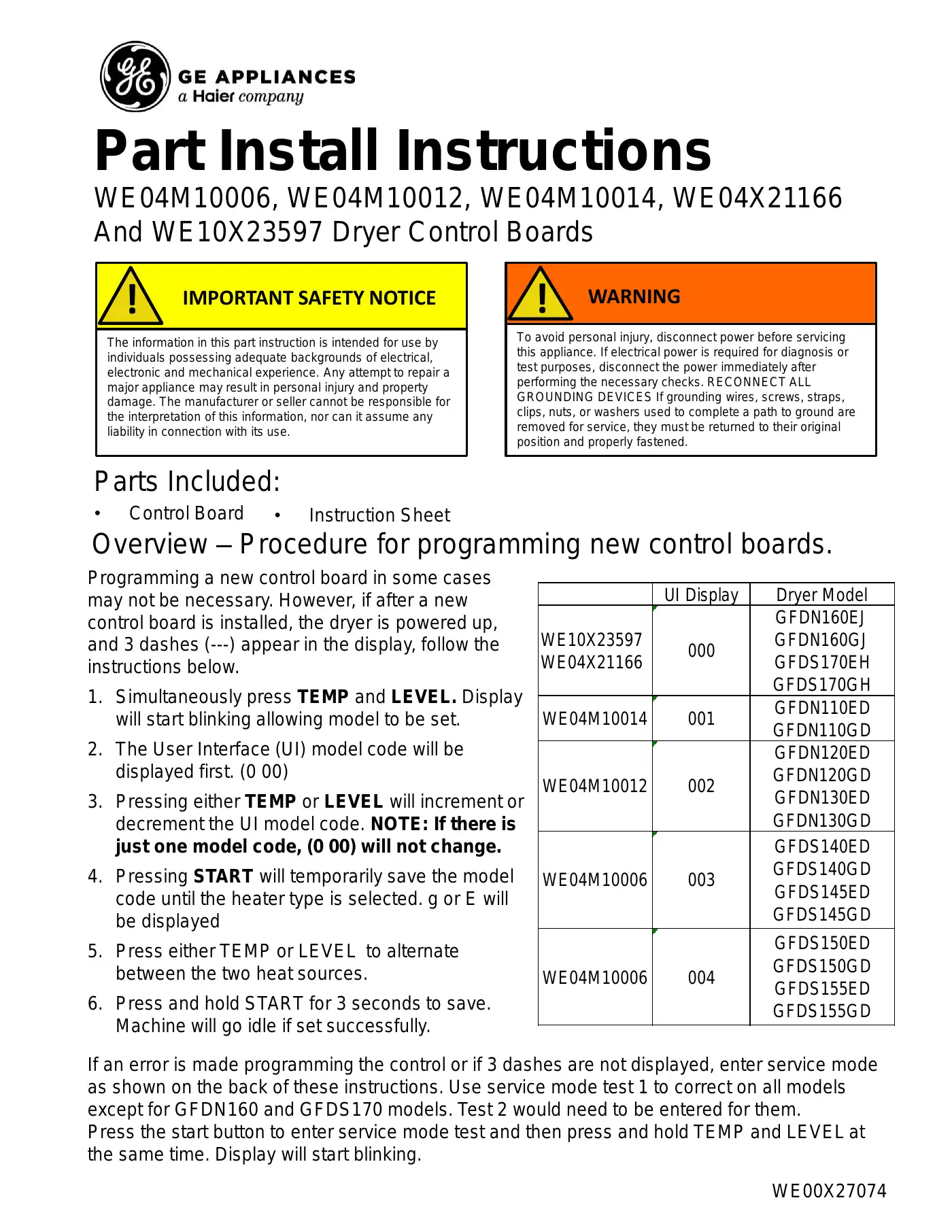

WE00X27074Part Install InstructionsParts Included:• Control BoardWE04M10006, WE04M10012, WE04M10014, WE04X21166And WE10X23597 Dryer Control BoardsProgramming a new control board in some casesmay not be necessary. However, if after a newcontrol board is installed, the dryer is powered up,and 3 dashes (---) appear in the display, follow theinstructions below.1. Simultaneously press TEMP and LEVEL. Displaywill start blinking allowing model to be set.2. The User Interface (UI) model code will bedisplayed first. (0 00)3. Pressing either TEMP or LEVEL will increment ordecrement the UI model code. NOTE: If there isjust one model code, (0 00) will not change.4. Pressing START will temporarily save the modelcode until the heater type is selected. g or E willbe displayed5. Press either TEMP or LEVEL to alternatebetween the two heat sources.6. Press and hold START for 3 seconds to save.Machine will go idle if set successfully.! IMPORTANT SAFETY NOTICEThe information in this part instruction is intended for use byindividuals possessing adequate backgrounds of electrical,electronic and mechanical experience. Any attempt to repair amajor appliance may result in personal injury and propertydamage. The manufacturer or seller cannot be responsible forthe interpretation of this information, nor can it assume anyliability in connection with its use.! WARNINGTo avoid personal injury, disconnect power before servicingthis appliance. If electrical power is required for diagnosis ortest purposes, disconnect the power immediately afterperforming the necessary checks. RECONNECT ALLGROUNDING DEVICES If grounding wires, screws, straps,clips, nuts, or washers used to complete a path to ground areremoved for service, they must be returned to their originalposition and properly fastened.• Instruction SheetUI Display Dryer ModelWE10X23597WE04X21166 000GFDN160EJGFDN160GJGFDS170EHGFDS170GHWE04M10014 001 GFDN110EDGFDN110GDWE04M10012 002GFDN120EDGFDN120GDGFDN130EDGFDN130GDWE04M10006 003GFDS140EDGFDS140GDGFDS145EDGFDS145GDWE04M10006 004GFDS150EDGFDS150GDGFDS155EDGFDS155GDOverview – Procedure for programming new control boards.If an error is made programming the control or if 3 dashes are not displayed, enter service modeas shown on the back of these instructions. Use service mode test 1 to correct on all modelsexcept for GFDN160 and GFDS170 models. Test 2 would need to be entered for them.Press the start button to enter service mode test and then press and hold TEMP and LEVEL atthe same time. Display will start blinking.
