Haier GE APPLIANCES UltraFresh WH22X29532 Install Instructions Manual

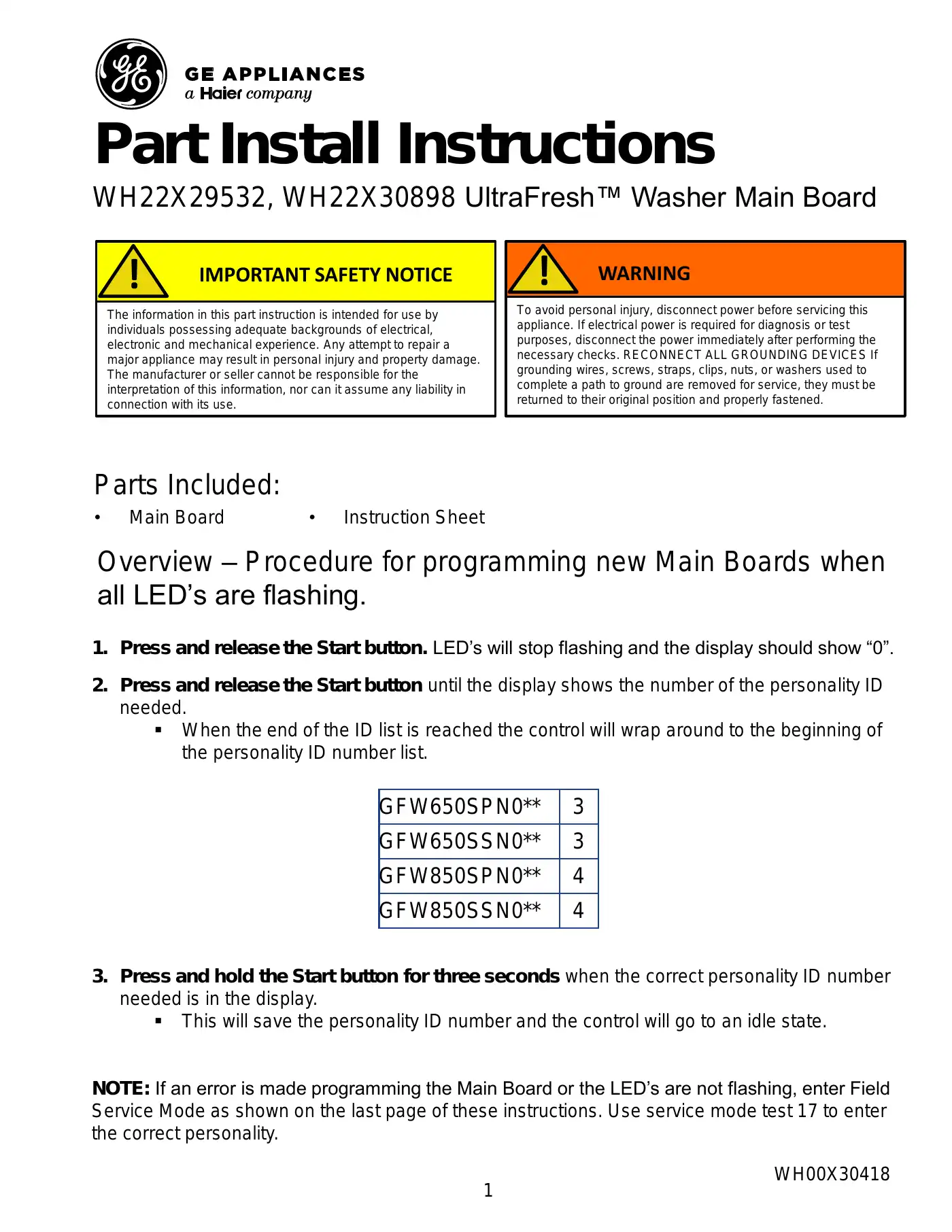

WH00X30418Part Install InstructionsOverview – Procedure for programming new Main Boards whenall LED’s are flashing.WH22X29532, WH22X30898 UltraFresh™ Washer Main Board! IMPORTANT SAFETY NOTICEThe information in this part instruction is intended for use byindividuals possessing adequate backgrounds of electrical,electronic and mechanical experience. Any attempt to repair amajor appliance may result in personal injury and property damage.The manufacturer or seller cannot be responsible for theinterpretation of this information, nor can it assume any liability inconnection with its use.! WARNINGTo avoid personal injury, disconnect power before servicing thisappliance. If electrical power is required for diagnosis or testpurposes, disconnect the power immediately after performing thenecessary checks. RECONNECT ALL GROUNDING DEVICES Ifgrounding wires, screws, straps, clips, nuts, or washers used tocomplete a path to ground are removed for service, they must bereturned to their original position and properly fastened.Parts Included:• Main Board • Instruction Sheet1. Press and release the Start button. LED’s will stop flashing and the display should show “0”.2. Press and release the Start button until the display shows the number of the personality IDneeded.▪ When the end of the ID list is reached the control will wrap around to the beginning ofthe personality ID number list.3. Press and hold the Start button for three seconds when the correct personality ID numberneeded is in the display.▪ This will save the personality ID number and the control will go to an idle state.NOTE: If an error is made programming the Main Board or the LED’s are not flashing, enter FieldService Mode as shown on the last page of these instructions. Use service mode test 17 to enterthe correct personality.1GFW650SPN0** 3GFW650SSN0** 3GFW850SPN0** 4GFW850SSN0** 4

/ 2

Questions and answers

Need help?

Ask question about this manual

Related manuals for Haier GE APPLIANCES UltraFresh WH22X29532

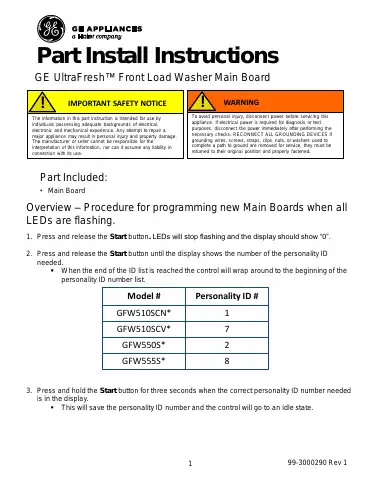

Haier GE UltraFresh GFW510SCN Series Part Install Instructions
