Haier EI35M(AE) Installation And User Instructions Manual

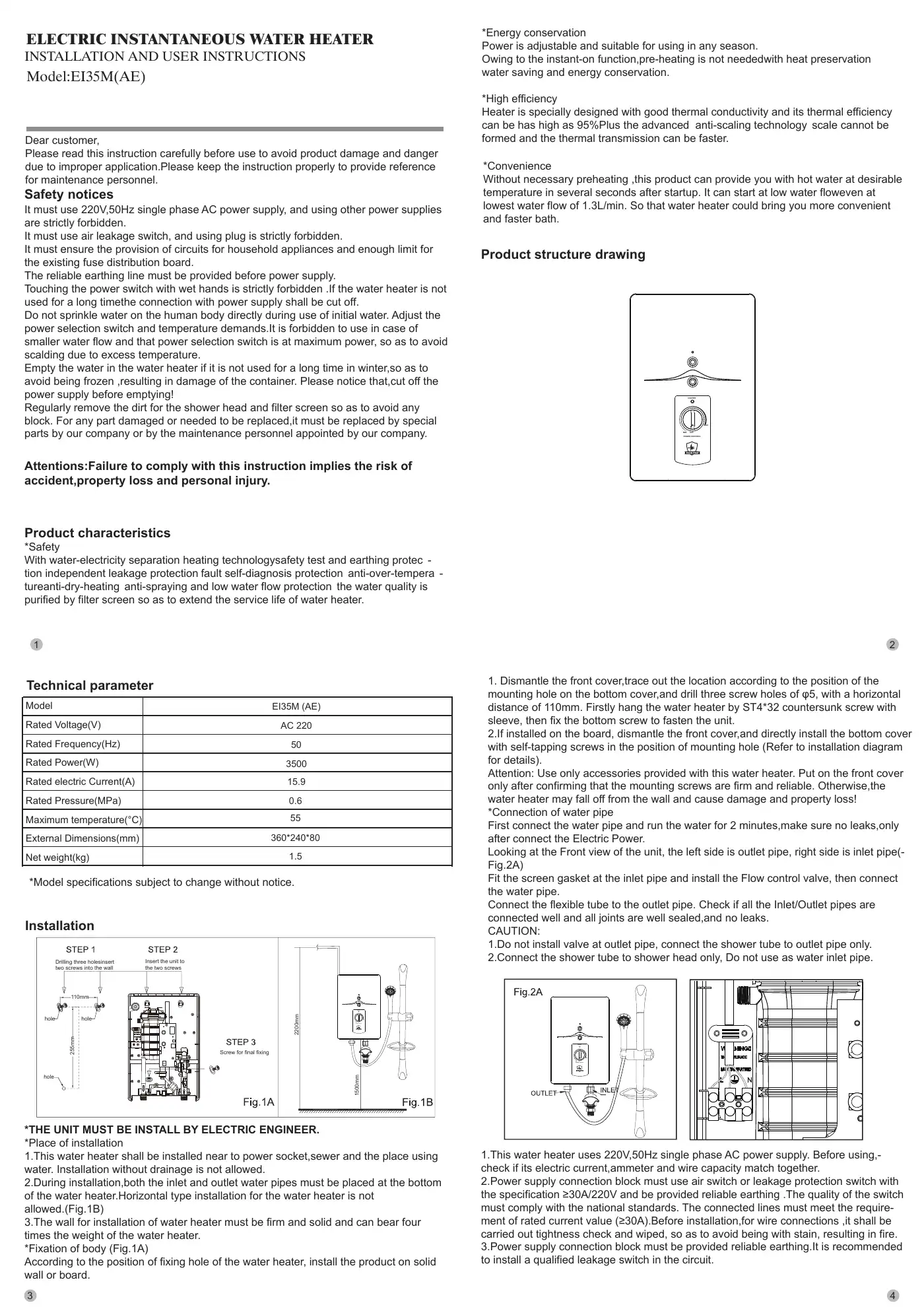

ELECTRIC INSTANTANEOUS WATER HEATERDear customer,Please read this instruction carefully before use to avoid product damage and dangerdue to improper application.Please keep the instruction properly to provide referencefor maintenance personnel.Safety noticesIt must use 220V,50Hz single phase AC power supply, and using other power suppliesare strictly forbidden.It must use air leakage switch, and using plug is strictly forbidden.It must ensure the provision of circuits for household appliances and enough limit forthe existing fuse distribution board.The reliable earthing line must be provided before power supply.Touching the power switch with wet hands is strictly forbidden .If the water heater is notused for a long timethe connection with power supply shall be cut off.Do not sprinkle water on the human body directly during use of initial water. Adjust thepower selection switch and temperature demands.It is forbidden to use in case ofsmaller water flow and that power selection switch is at maximum power, so as to avoidscalding due to excess temperature.Empty the water in the water heater if it is not used for a long time in winter,so as toavoid being frozen ,resulting in damage of the container. Please notice that,cut off thepower supply before emptying!Regularly remove the dirt for the shower head and filter screen so as to avoid anyblock. For any part damaged or needed to be replaced,it must be replaced by specialparts by our company or by the maintenance personnel appointed by our company.Attentions:Failure to comply with this instruction implies the risk ofaccident,property loss and personal injury.Product characteristics*SafetyWith water-electricity separation heating technologysafety test and earthing protec -tion independent leakage protection fault self-diagnosis protection anti-over-tempera -tureanti-dry-heating anti-spraying and low water flow protection the water quality ispurified by filter screen so as to extend the service life of water heater.*Energy conservationPower is adjustable and suitable for using in any season.Owing to the instant-on function,pre-heating is not neededwith heat preservationwater saving and energy conservation.*High efficiencyHeater is specially designed with good thermal conductivity and its thermal efficiencycan be has high as 95%Plus the advanced anti-scaling technology scale cannot beformed and the thermal transmission can be faster.Product structure drawingTechnical parameterModelAC 220500.655360*240*801.515.9EI35M (AE)Rated Voltage(V)Rated Frequency(Hz)Rated Power(W)Rated electric Current(A)Rated Pressure(MPa)Maximum temperature(°C)External Dimensions(mm)Net weight(kg)3500*Model specifications subject to change without notice.Installation1.This water heater uses 220V,50Hz single phase AC power supply. Before using,-check if its electric current,ammeter and wire capacity match together.2.Power supply connection block must use air switch or leakage protection switch withthe specification ≥30A/220V and be provided reliable earthing .The quality of the switchmust comply with the national standards. The connected lines must meet the require-ment of rated current value (≥30A).Before installation,for wire connections ,it shall becarried out tightness check and wiped, so as to avoid being with stain, resulting in fire.3.Power supply connection block must be provided reliable earthing.It is recommendedto install a qualified leakage switch in the circuit.*ConvenienceWithout necessary preheating ,this product can provide you with hot water at desirabletemperature in several seconds after startup. It can start at low water floweven atlowest water flow of 1.3L/min. So that water heater could bring you more convenientand faster bath.INSTALLATION AND USER INSTRUCTIONSModel:EI35M(AE)*THE UNIT MUST BE INSTALL BY ELECTRIC ENGINEER.*Place of installation1.This water heater shall be installed near to power socket,sewer and the place usingwater. Installation without drainage is not allowed.2.During installation,both the inlet and outlet water pipes must be placed at the bottomof the water heater.Horizontal type installation for the water heater is notallowed.(Fig.1B)3.The wall for installation of water heater must be firm and solid and can bear fourtimes the weight of the water heater.*Fixation of body (Fig.1A)According to the position of fixing hole of the water heater, install the product on solidwall or board.213 4255mm110mmDrilling three holesinserttwo screws into the wallInsert the unit tothe two screwshole holeholeScrew for final fixing2200mm1500mmHEATEROFFMINPOWER CONTROLMAXHEATEROFFMINPOWER CONTROLMAXHEATEROFFMINPOWER CONTROLMAX1. Dismantle the front cover,trace out the location according to the position of themounting hole on the bottom cover,and drill three screw holes of φ5, with a horizontaldistance of 110mm. Firstly hang the water heater by ST4*32 countersunk screw withsleeve, then fix the bottom screw to fasten the unit.2.If installed on the board, dismantle the front cover,and directly install the bottom coverwith self-tapping screws in the position of mounting hole (Refer to installation diagramfor details).Attention: Use only accessories provided with this water heater. Put on the front coveronly after confirming that the mounting screws are firm and reliable. Otherwise,thewater heater may fall off from the wall and cause damage and property loss!*Connection of water pipeFirst connect the water pipe and run the water for 2 minutes,make sure no leaks,onlyafter connect the Electric Power.Looking at the Front view of the unit, the left side is outlet pipe, right side is inlet pipe(-Fig.2A)Fit the screen gasket at the inlet pipe and install the Flow control valve, then connectthe water pipe.Connect the flexible tube to the outlet pipe. Check if all the Inlet/Outlet pipes areconnected well and all joints are well sealed,and no leaks.CAUTION:1.Do not install valve at outlet pipe, connect the shower tube to outlet pipe only.2.Connect the shower tube to shower head only, Do not use as water inlet pipe.
