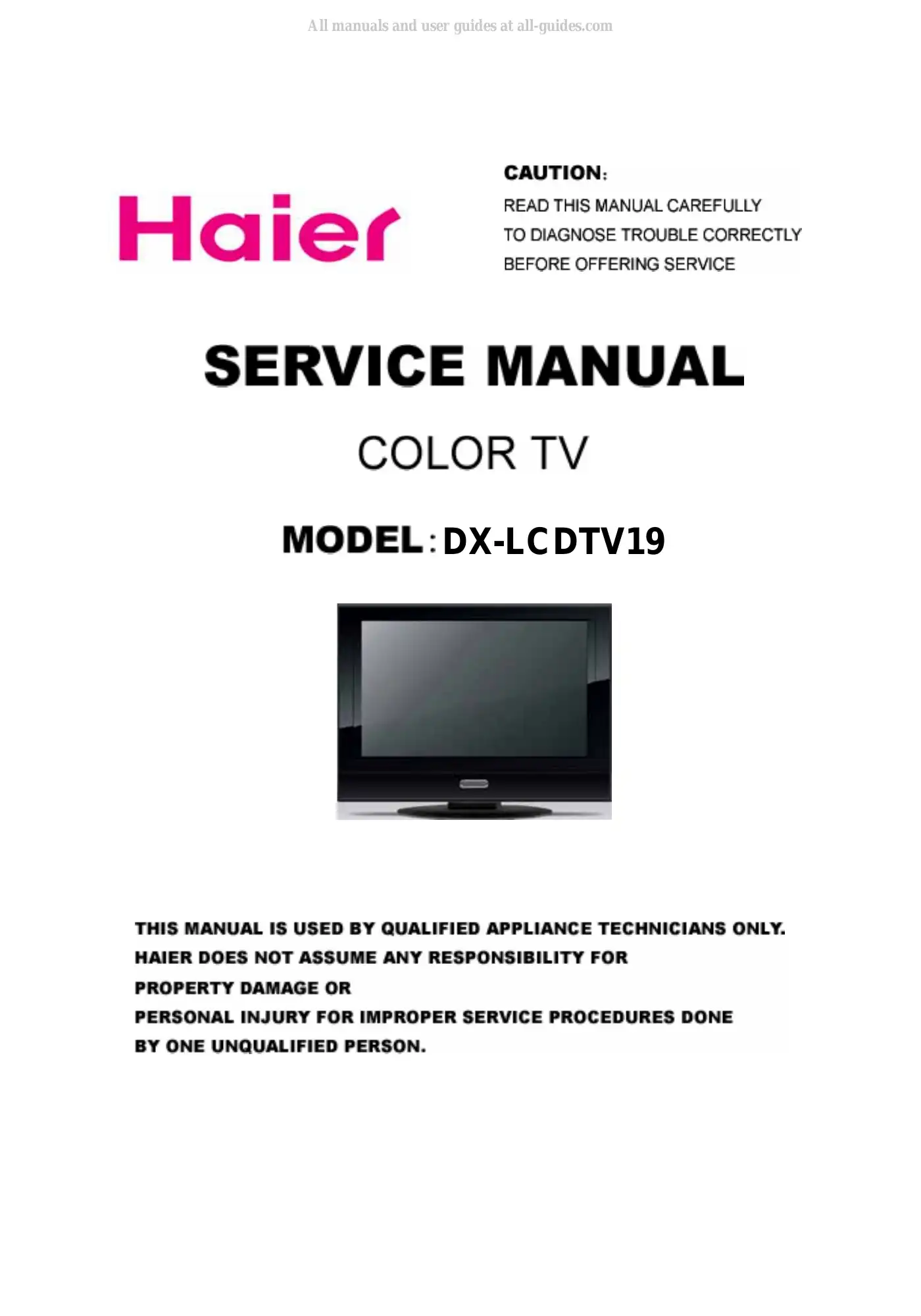

Haier DX-LCDTV19 Service Manual

To adjust the bus control on your Haier DX-LCDTV19, refer to the 'Bus Control Adjustment' section of the service manual. This section provides detailed instructions on how to make the necessary adjustments.

The Haier DX-LCDTV19 has 2 built-in speakers with an audio output power of 2*1.5W.

It is advisable to disconnect the AC power cord from the AC outlet when the product is not used for an extended period of time.

Avoid exposing the main unit to direct sunlight and other sources of heat. Do not block the ventilation holes in the back cover. Ensure the television is placed on a stable surface and not on an unstable cart, stand, shelf, or table. Additionally, do not place the television directly on other products that give off heat, such as video cassette players or audio amplifiers.

The Haier DX-LCDTV19 provides the following audio output options: 1. Up to Six (6) channel I2S Output via three (3) I2S Ports, 2. Two (2) channel Analog Output via DAC Output, and 3. IEC958 (S/PDIF) Output.

If your Haier DX-LCDTV19 does not turn on, first check the power supply. Ensure that F1 has 12V. If it does, check F1 and CN10. If there is still no power, check E33 (470μF/25V) for 5V. If E33 is fine, check F1 for a short circuit. If F1 is okay, check the power output for the LDO. If the LDO is fine, check Pin3 of U13 for a 350Khz switch signal. If the signal is present, check the MCU for power supply and reset issues. If the MCU is fine, check U13/MP1410ES and D17/IN5822. If these components are fine, check L9/47μH for high or low voltage issues.

If your Haier DX-LCDTV19 displays a white screen, you should first check the power supply for the panel. If the power supply is fine, check the voltage of Q24. If the voltage is 0~3.3V (5V or 12V), check the voltage between U25/SM5964 3thQ24 or check U25. If the voltage is not as expected, check the signal output of U5/RTD2023B. If the signal output is fine, check the power supply and time circuit of U5. If the issue persists, check the circuit between CN8 and CN9, and finally, check the LCD or Panel Connector.

If your TV is not searching for channels, follow these steps: Check the RF signal input. If the RF signal is fine, check the voltage at T1/TDQ-6H3PIN6 for 5V. If the voltage is not 5V, check the voltage at T1 PIN3 for 0V and T1 PIN9 for 33V. If these voltages are correct, check the I2C signal at T1 PIN4,5 and the signal at T1 PIN11. If all signals are correct, examine and repair the RF device or check the net between T1 PIN11 and U21 PIN24,25 for the power supply of U21. If necessary, change T1/TDQ-6H3 or examine and repair the I2C net and the circuit connected with U25/SM5964.

To connect an external device to the HDMI port, use an HDMI cable. Plug one end of the HDMI cable into the HDMI port on the TV (labeled as HDMI In) and the other end into the HDMI port on the external device. Ensure the device is powered on and set to the correct input source on the TV.

To troubleshoot audio issues, check the connections related to the audio components such as 'AOUTR', 'AOUTL', 'TV_RIN', and 'TV_LIN'. Ensure that all components like 'C85', 'C89', and 'R129' are properly connected and functioning. If the issue persists, consult the detailed schematic and component list provided in the manual.
