Haier DW-40L92 Service Manual

Also see for DW-40L188:

Contents

Table of Contents3
Designation4
Safe Caution5
Product Appearance6
Product Specifications8
Components and Function Modules9
Disassemble Steps10
Screen Control System13
Control System Principle16
System Schematic Diagram17
System Circuit Diagram18
Inspection and Maintenance Process for Typical Error19
Faq&A20
Troubleshooting21
How to Deal with Poor Cooling22
Testing Date23

Haier DW-40L92 Service Manual Manual pdf 15 page image

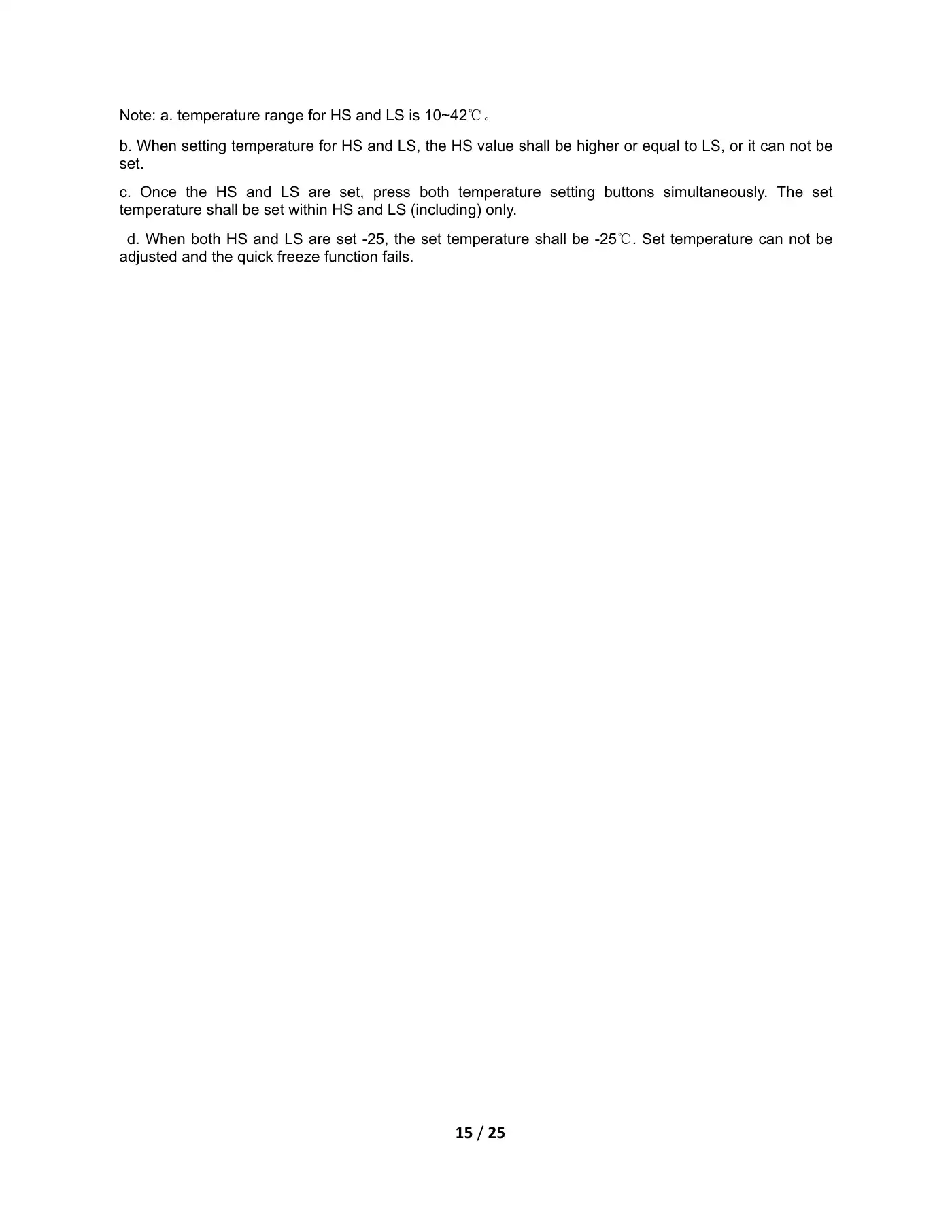

15 / 25Note: a. temperature range for HS and LS is 10~42℃。b. When setting temperature for HS and LS, the HS value shall be higher or equal to LS, or it can not beset.c. Once the HS and LS are set, press both temperature setting buttons simultaneously. The settemperature shall be set within HS and LS (including) only.d. When both HS and LS are set -25, the set temperature shall be -25 . Set temperature can not be℃adjusted and the quick freeze function fails.
