Haier DW-40L92 Service Manual

Also see for DW-40L188:

Contents

Haier DW-40L92 Service Manual Manual pdf 13 page image

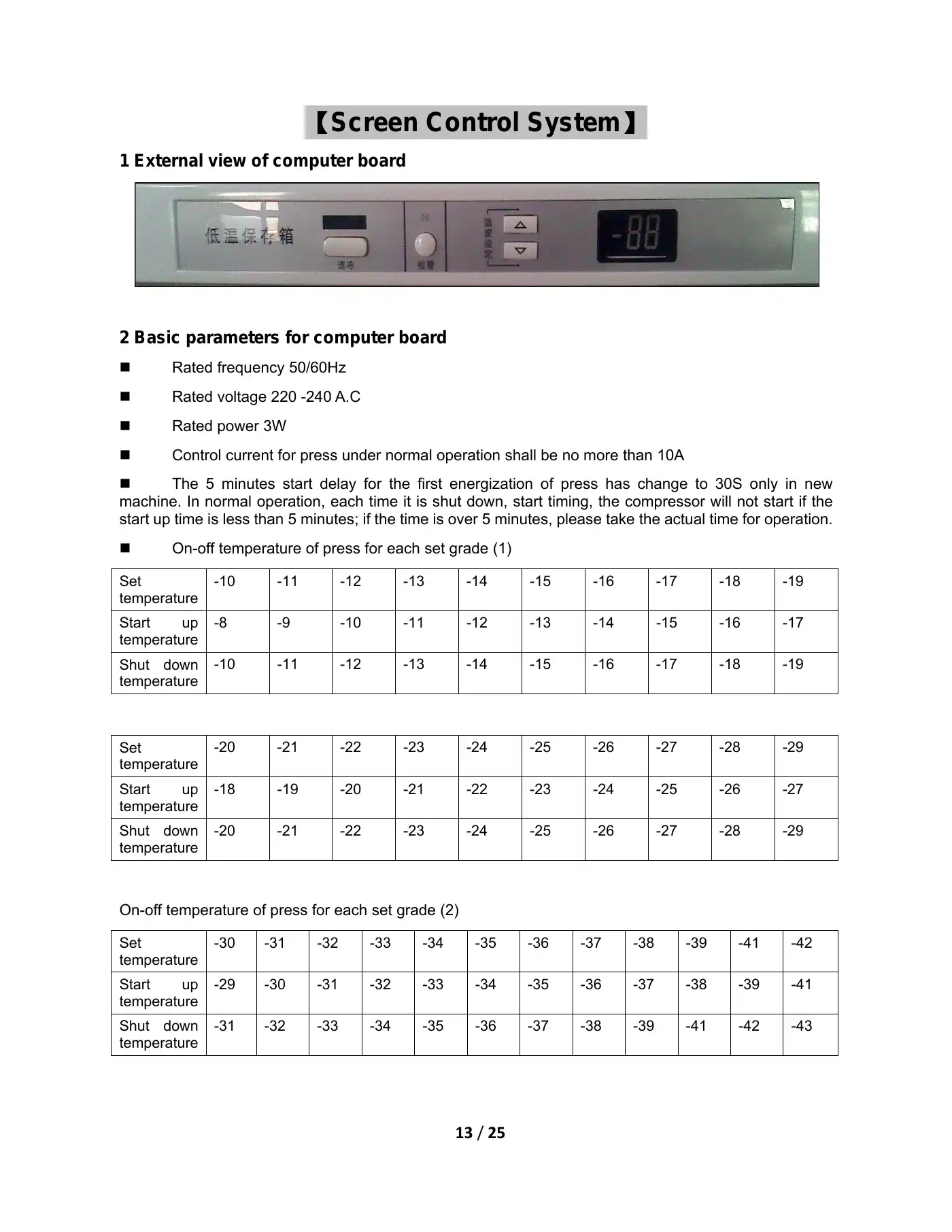

13 / 25【Screen Control System】1 External view of computer board2 Basic parameters for computer board Rated frequency 50/60Hz Rated voltage 220 -240 A.C Rated power 3W Control current for press under normal operation shall be no more than 10A The 5 minutes start delay for the first energization of press has change to 30S only in newmachine. In normal operation, each time it is shut down, start timing, the compressor will not start if thestart up time is less than 5 minutes; if the time is over 5 minutes, please take the actual time for operation. On-off temperature of press for each set grade (1)Settemperature-10 -11 -12 -13 -14 -15 -16 -17 -18 -19Start uptemperature-8 -9 -10 -11 -12 -13 -14 -15 -16 -17Shut downtemperature-10 -11 -12 -13 -14 -15 -16 -17 -18 -19Settemperature-20 -21 -22 -23 -24 -25 -26 -27 -28 -29Start uptemperature-18 -19 -20 -21 -22 -23 -24 -25 -26 -27Shut downtemperature-20 -21 -22 -23 -24 -25 -26 -27 -28 -29On-off temperature of press for each set grade (2)Settemperature-30 -31 -32 -33 -34 -35 -36 -37 -38 -39 -41 -42Start uptemperature-29 -30 -31 -32 -33 -34 -35 -36 -37 -38 -39 -41Shut downtemperature-31 -32 -33 -34 -35 -36 -37 -38 -39 -41 -42 -43
