Haier DLE32C8H Service Manual

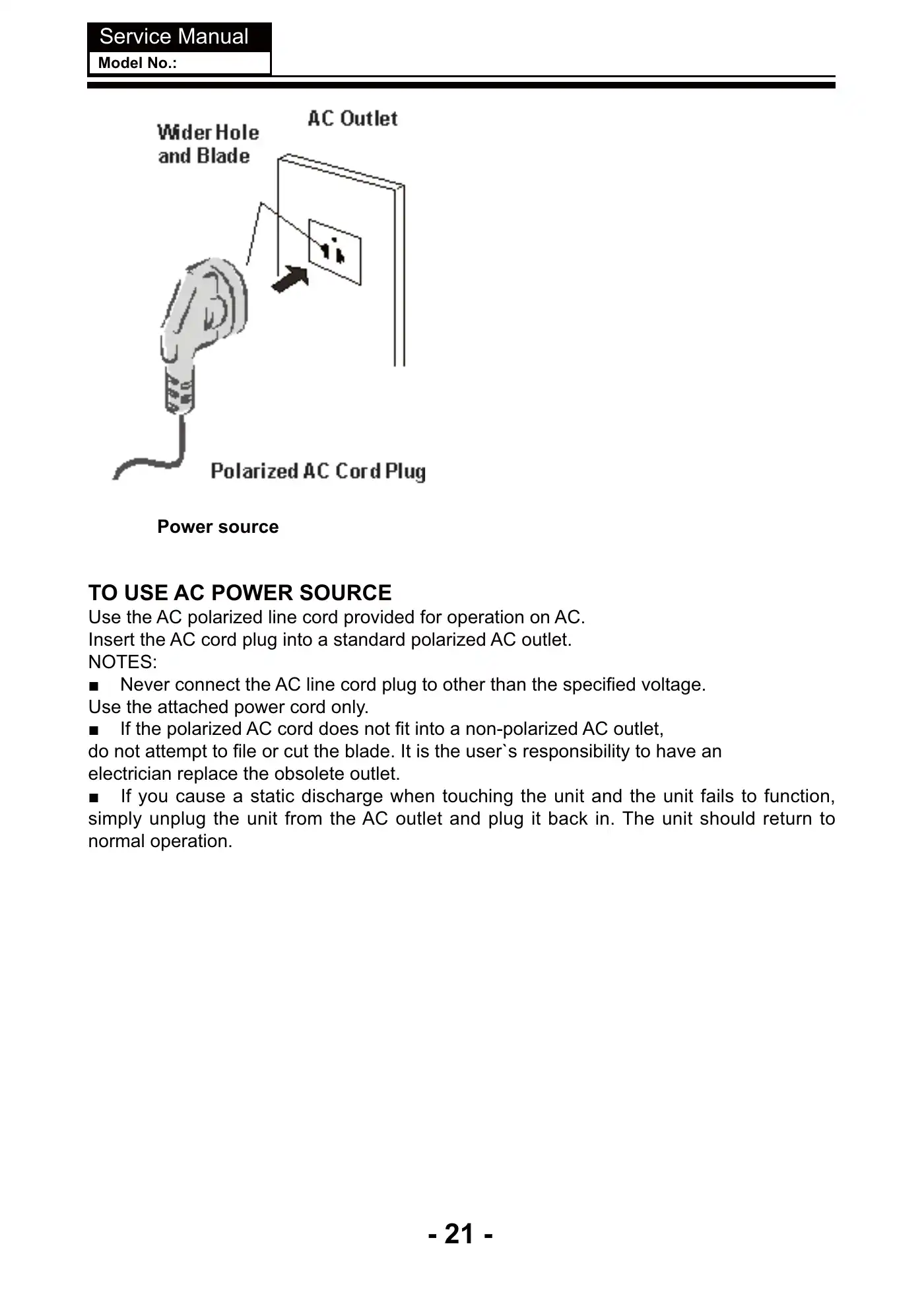

Power sourceTO USE AC POWER SOURCEUse the AC polarized line cord provided for operation on AC.Insert the AC cord plug into a standard polarized AC outlet.NOTES:Ŷ1HYHUFRQQHFWWKH$&OLQHFRUGSOXJWRRWKHUWKDQWKHVSHFL¿HGYROWDJHUse the attached power cord only.Ŷ,IWKHSRODUL]HG$&FRUGGRHVQRW¿WLQWRDQRQSRODUL]HG$&RXWOHWGRQRWDWWHPSWWR¿OHRUFXWWKHEODGH,WLVWKHXVHUCVUHVSRQVLELOLW\WRKDYHDQelectrician replace the obsolete outlet.Ŷ,I\RXFDXVHDVWDWLFGLVFKDUJHZKHQWRXFKLQJWKHXQLWDQGWKHXQLWIDLOVWRIXQFWLRQsimply unplug the unit from the AC outlet and plug it back in. The unit should return tonormal operation.Service ManualModel No.:- 21 -

/ 54

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

To enter into the factory model, refer to section 8-1 of the service manual for detailed instructions.

To connect your computer to the Haier DLE32C8H TV using a VGA cable, follow these steps: 1. Ensure both the TV and computer are powered off. 2. Connect a VGA cable from the computer to the VGA port on the TV. 3. Connect an audio cable if needed for sound. 4. Plug in the power cord to the TV. 5. Turn on the TV and switch it to PC mode. 6. Turn on your PC.

The Haier DLE32C8H supports an aerial connection with IEC (female) and has an input impedance of 75 ohms unbalanced.

You can connect a Blu-ray player to your Haier DLE32C8H TV using one of the two HDMI ports located on the back of the TV. Simply plug the HDMI cable into the HDMI port on both the TV and the Blu-ray player.

The device supports various audio inputs including LINEIN_L1, LINEIN_R1, LINEIN_L3, LINEIN_R3, LINEIN_L5, and LINEIN_R5. These inputs can be used to connect external audio sources.

To adjust the picture settings, go to the PICTURE MENU. You can adjust options such as contrast, brightness, color temperature, VGA setting, aspect ratio, and noise reduction. Press the select button to choose an option and press OK to make adjustments.

To enter Hotel Mode, press 'source-1-0-0-1' on your remote control.

To improve poor sound quality, first verify if the sound system is correctly set up. If issues persist, update the software and make a reboot of the device. If problems continue, consider changing the Mainboard.

If you are still experiencing issues, it is recommended to update the software and make a reboot. If that does not resolve the problem, consider changing the Mainboard.

First, check if the power cord is properly connected to both the outlet and the power board. If it is, verify if there is a 5V standby voltage on the Power board by turning the TV on. Additionally, inspect the J3 voltage (12V) and J8 voltage (5V). If these voltages are correct but the issue persists, check for high-level signals at Pin2 in J7.
