Haier DD400RS Product Dimensions

Also see for DD300RW: Energy guide Manual User manual

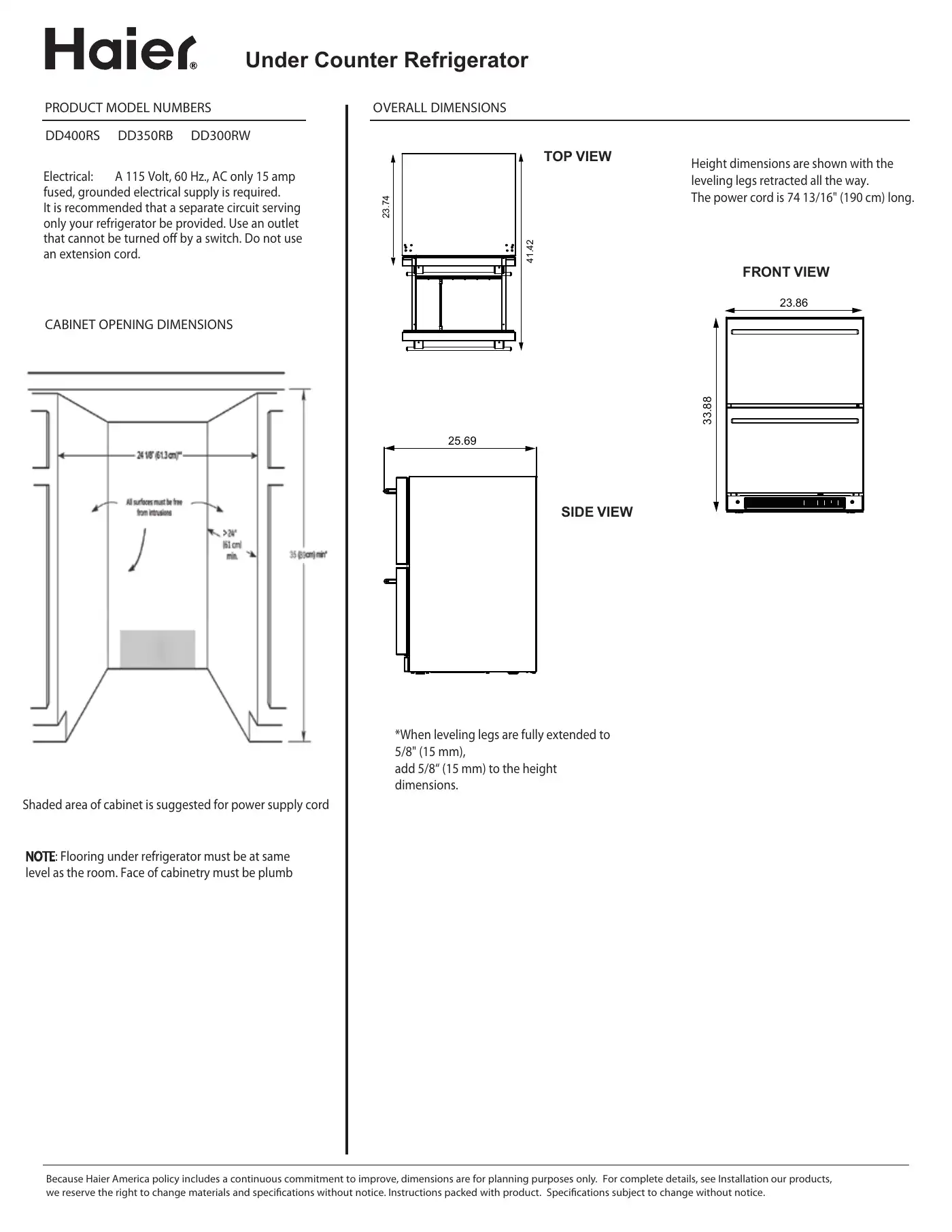

PRODUCT MODEL NUMBERS OVERALL DIMENSIONSCABINET OPENING DIMENSIONSElectrical: A 115 Volt, 60 Hz., AC only 15 ampfused, grounded electrical supply is required.It is recommended that a separate circuit servingonly your refrigerator be provided. Use an outletthat cannot be turned off by a switch. Do not usean extension cord.DD400RS DD350RB DD300RWTOP VIEWFRONT VIEWSIDE VIEW23.8688.3347.3224.14Shaded area of cabinet is suggested for power supply cord25.69Under Counter RefrigeratorHeight dimensions are shown with theleveling legs retracted all the way.The power cord is 74 13/16" (190 cm) long.*When leveling legs are fully extended to5/8" (15 mm),add 5/8“ (15 mm) to the heightdimensions.NOTE: Flooring under refrigerator must be at samelevel as the room. Face of cabinetry must be plumbBecause Haier America policy includes a continuous commitment to improve, dimensions are for planning purposes only. For complete details, see Installation our products,we reserve the right to change materials and specifications without notice. Instructions packed with product. Specifications subject to change without notice.
