Haier Backlit Instruction Manual

Also see for Backlit:

Contents

Connecting Your TV11

Preparation of Your Remote Control12

Setting up12

Tuning Your TV13

Using Your TV17

Adjusting Picture Settings17

To Watch a 3D TV25

USB Mode26

Haier Backlit Instruction Manual Manual pdf 21 page image

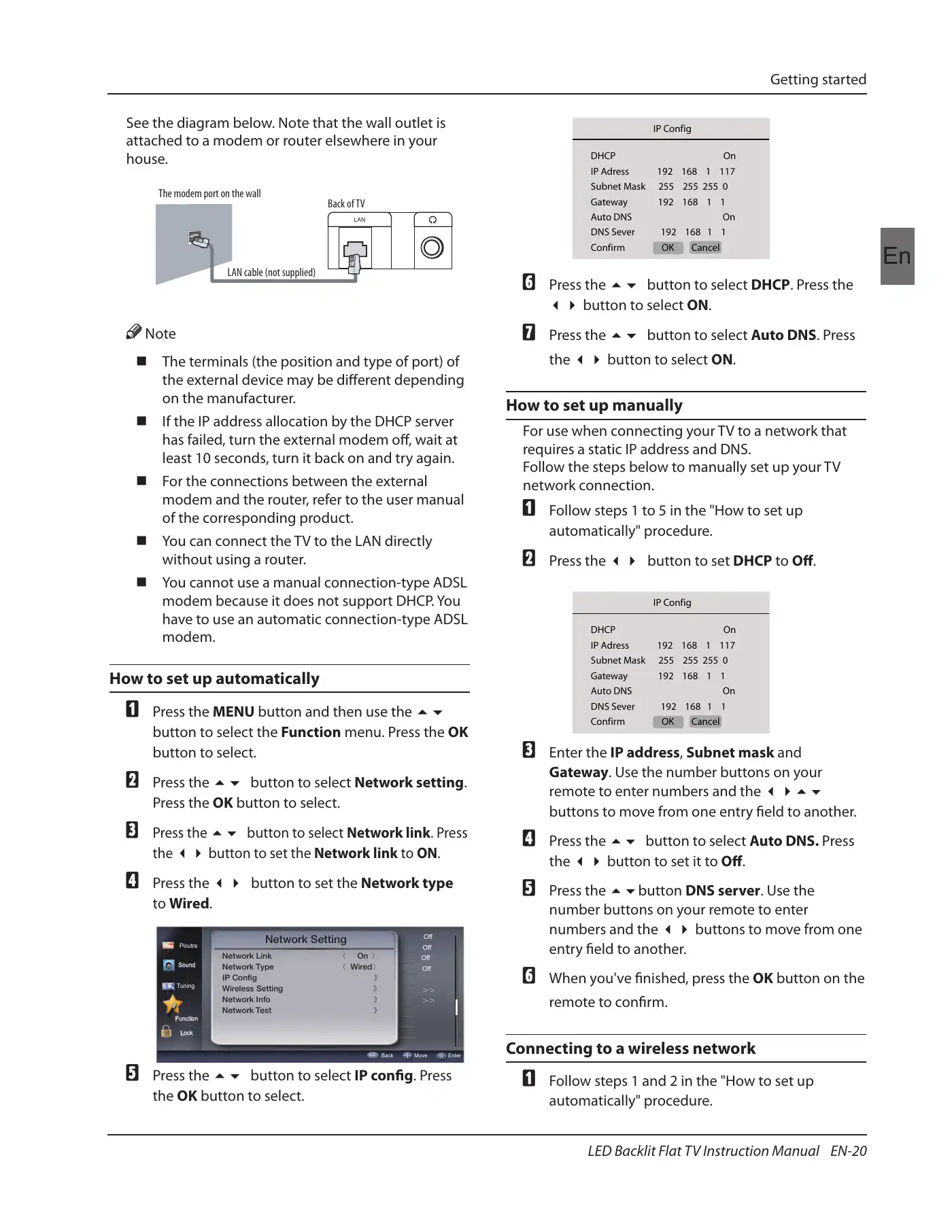

Getting startedLED Backlit Flat TV Instruction Manual EN-20EnSee the diagram below. Note that the wall outlet isattached to a modem or router elsewhere in yourhouse.LANThe modem port on the wallLAN cable (not supplied)Back of TVNoteThe terminals (the position and type of port) ofthe external device may be different dependingon the manufacturer.If the IP address allocation by the DHCP serverhas failed, turn the external modem off, wait atleast 10 seconds, turn it back on and try again.For the connections between the externalmodem and the router, refer to the user manualof the corresponding product.You can connect the TV to the LAN directlywithout using a router.You cannot use a manual connection-type ADSLmodem because it does not support DHCP. Youhave to use an automatic connection-type ADSLmodem.How to set up automaticallyPress theA MENU button and then use the 5button to select the Function menu. Press the OKbutton to select.Press theB 5 button to select Network setting.Press the OK button to select.Press theC 5 button to select Network link. Pressthe 34 button to set the Network link to ON.Press theD 34 button to set the Network typeto Wired.FunctionLockOSD Language OffDPMS OffBlue Screen OffOFF OffShop Mode 》Screen Mode ＞＞Overscan ＞＞OBack Move EnterPicutreSoundTuningNetwork Link 〈 On 〉Network Type 〈 Wired〉IP Config 》Wireless Setting 》Network Info 》Network Test 》Network SettingBackPress theE 5 button to select IP config. Pressthe OK button to select.IP ConfigDHCP OnIP Adress 192 168 1 117Subnet Mask 255 255 255 0Gateway 192 168 1 1Auto DNS OnDNS Sever 192 168 1 1Confirm OK CancelPress theF 5 button to select DHCP. Press the34 button to select ON.Press theG 5 button to select Auto DNS. Pressthe 34 button to select ON.How to set up manuallyFor use when connecting your TV to a network thatrequires a static IP address and DNS.Follow the steps below to manually set up your TVnetwork connection.Follow steps 1 to 5 in the "How to set upA automatically" procedure.Press theB 34 button to set DHCP to Off.IP ConfigDHCP OnIP Adress 192 168 1 117Subnet Mask 255 255 255 0Gateway 192 168 1 1Auto DNS OnDNS Sever 192 168 1 1Confirm OK CancelEnter theC IP address, Subnet mask andGateway. Use the number buttons on yourremote to enter numbers and the 345buttons to move from one entry field to another.Press theD 5 button to select Auto DNS. Pressthe 34 button to set it to Off.Press theE 5button DNS server. Use thenumber buttons on your remote to enternumbers and the 34 buttons to move from oneentry field to another.When you've finished, press theF OK button on theremote to confirm.Connecting to a wireless networkFollow steps 1 and 2 in the "How to set upA automatically" procedure.

/ 34

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

To connect a DVD player to your TV, refer to the 'Connect a DVD Player to Your TV' section on page 10 of the manual. This section provides detailed instructions on how to properly connect your DVD player to the TV.

If you are experiencing signal issues, refer to the 'Improve Your Signal' section on page 10 of the manual. This section offers tips and instructions on how to enhance the signal quality of your TV.

If the product starts to make abnormal sounds, disconnect it from the power supply immediately and contact an authorised after-sales service provider for assistance.

No, to avoid fire hazards, do not use this product in direct sunlight or close to heat sources. Keep the product away from transformers or heat sources as well.

To improve the picture quality in a poor signal area, use a signal amplifier (not supplied).

To install the batteries in the remote control, place the remote control face down, then open the cover of the battery compartment. Insert two AAA batteries, ensuring the + and - symbols on the batteries match the marks on the remote. Close the cover of the battery compartment.

If the remote control is not working properly, ensure that there is nothing between the remote control and the remote sensor of the TV set. Also, avoid using the remote near strong light sources such as sunlight, fluorescent lights, or neon signs, as they can interfere with the signal. Additionally, do not place the remote control in direct heat or in a damp place, as this may damage the remote.

To set the local frequency on your LNB, follow the instructions under the 'LNB Frequency' section in the manual.

If the IP address allocation by the DHCP server fails, turn off the external modem, wait at least 10 seconds, and then turn it back on. Try the connection again.

To enable or disable the child lock feature, press the 34 button to select Off/On.
