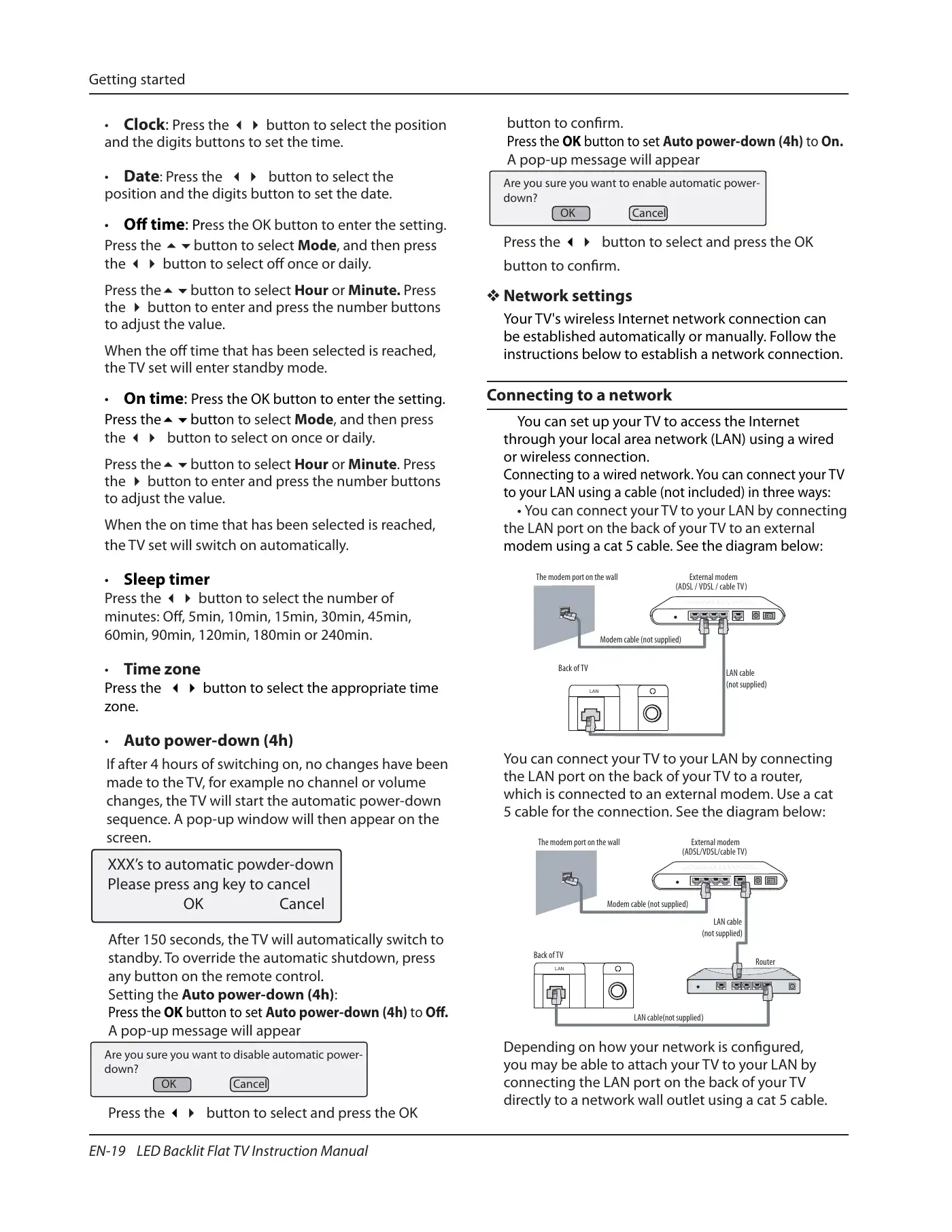

Getting startedEN-19 LED Backlit Flat TV Instruction ManualClock• : Press the 34 button to select the positionand the digits buttons to set the time.Date• : Press the 34 button to select theposition and the digits button to set the date.Off time• : Press the OK button to enter the setting.Press the 5button to select Mode, and then pressthe 34 button to select off once or daily.Press the5button to select Hour or Minute. Pressthe 4 button to enter and press the number buttonsto adjust the value.When the off time that has been selected is reached,the TV set will enter standby mode.On time• : Press the OK button to enter the setting.Press the5button to select Mode, and then pressthe 34 button to select on once or daily.Press the5button to select Hour or Minute. Pressthe 4 button to enter and press the number buttonsto adjust the value.When the on time that has been selected is reached,the TV set will switch on automatically.Sleep• timerPress the 34 button to select the number ofminutes: Off, 5min, 10min, 15min, 30min, 45min,60min, 90min, 120min, 180min or 240min.Time zone•Press the 34 button to select the appropriate timezone.Auto power-down (4h)•If after 4 hours of switching on, no changes have beenmade to the TV, for example no channel or volumechanges, the TV will start the automatic power-downsequence. A pop-up window will then appear on thescreen.XXX’s to automatic powder-downPlease press ang key to cancelOK CancelAfter 150 seconds, the TV will automatically switch tostandby. To override the automatic shutdown, pressany button on the remote control.Setting the Auto power-down (4h):Press the OK button to set Auto power-down (4h) to Off.A pop-up message will appearAre you sure you want to disable automatic power-down?OK CancelPress the 34 button to select and press the OKbutton to confirm.Press the OK button to set Auto power-down (4h) to On.A pop-up message will appearAre you sure you want to enable automatic power-down?OK CancelPress the 34 button to select and press the OKbutton to confirm.Network settings❖Your TV's wireless Internet network connection canbe established automatically or manually. Follow theinstructions below to establish a network connection.Connecting to a networkYou can set up your TV to access the Internetthrough your local area network (LAN) using a wiredor wireless connection.Connecting to a wired network. You can connect your TVto your LAN using a cable (not included) in three ways:• You can connect your TV to your LAN by connectingthe LAN port on the back of your TV to an externalmodem using a cat 5 cable. See the diagram below:LANThe modem port on the wall External modem(ADSL / VDSL / cable TV)LAN cable(not supplied)Modem cable (not supplied)Back of TVYou can connect your TV to your LAN by connectingthe LAN port on the back of your TV to a router,which is connected to an external modem. Use a cat5 cable for the connection. See the diagram below:LANThe modem port on the wall External modem(ADSL/VDSL/cable TV)LAN cable(not supplied)LAN cable(not supplied)Modem cable (not supplied)Back of TV RouterDepending on how your network is configured,you may be able to attach your TV to your LAN byconnecting the LAN port on the back of your TVdirectly to a network wall outlet using a cat 5 cable.
