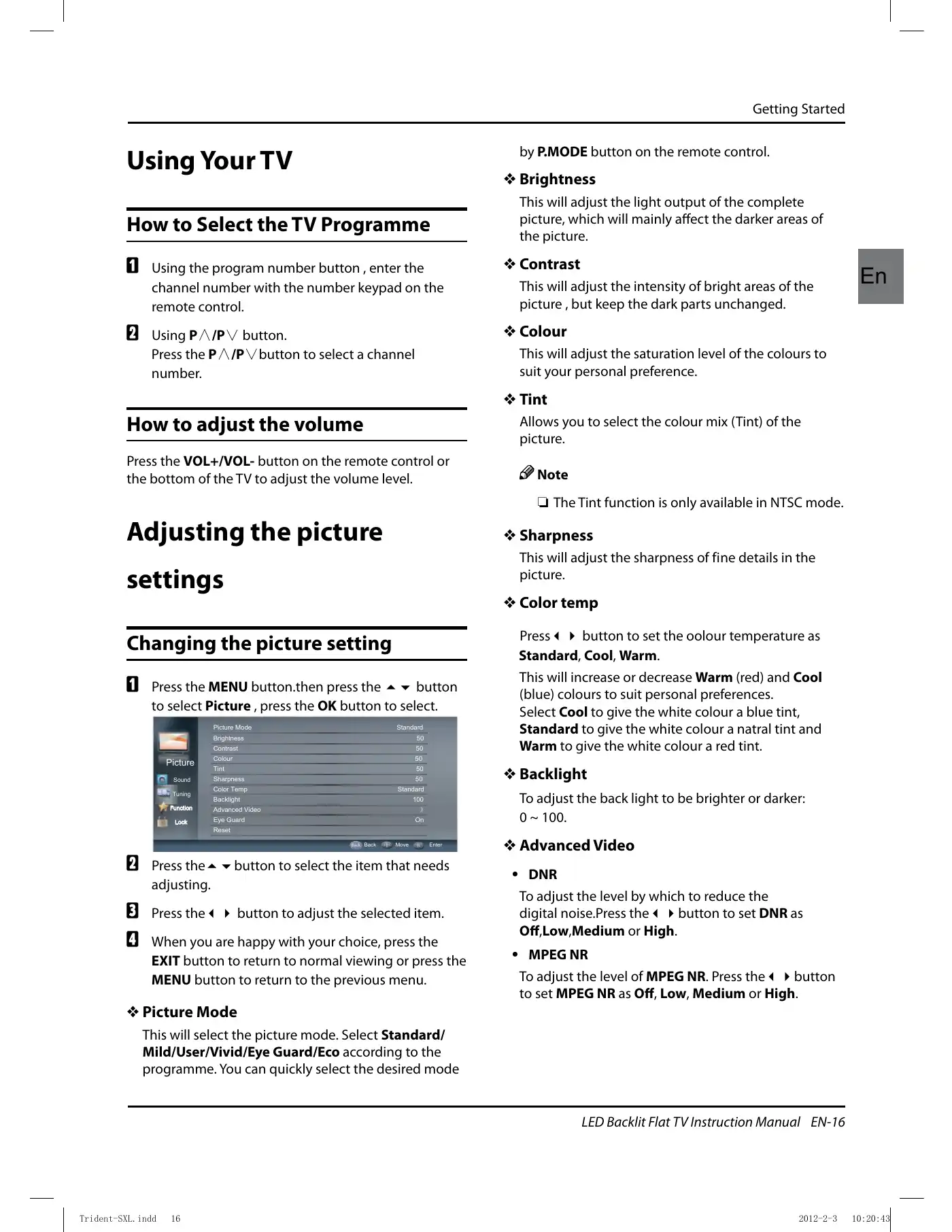

Haier Backlit Instruction Manual Manual pdf 17 page image

Getting StartedLED Backlit Flat TV Instruction Manual EN-16EnUsing Your TVHow to Select the TV ProgrammeUsing the program number button , enter theA channel number with the number keypad on theremote control.UsingB P∧/P∨ button.Press the P∧/P∨button to select a channelnumber.How to adjust the volumePress the VOL+/VOL- button on the remote control orthe bottom of the TV to adjust the volume level.Adjusting the picturesettingsChanging the picture settingPress theA MENU button.then press the  buttonto select Picture , press the OK button to select.SoundTuningFunctionLockPicture Mode StandardBrightness 50Contrast 50Colour 50Tint 50Sharpness 50Color Temp StandardBacklight 100Advanced Video 》Eye Guard OnResetBack Move EnterPicture#BDLPress theB button to select the item that needsadjusting.Press theC 34 button to adjust the selected item.When you are happy with your choice, press theD EXIT button to return to normal viewing or press theMENU button to return to the previous menu.Picture Mode❖This will select the picture mode. Select Standard/Mild/User/Vivid/Eye Guard/Eco according to theprogramme. You can quickly select the desired modeby P.MODE button on the remote control.Brightness❖This will adjust the light output of the completepicture, which will mainly affect the darker areas ofthe picture.Contrast❖This will adjust the intensity of bright areas of thepicture , but keep the dark parts unchanged.Colour❖This will adjust the saturation level of the colours tosuit your personal preference.Tint❖Allows you to select the colour mix (Tint) of thepicture.NoteThe Tint function is only available in NTSC mode.❏Sharpness❖This will adjust the sharpness of fine details in thepicture.Color temp❖Press34 button to set the oolour temperature asStandard, Cool, Warm.This will increase or decrease Warm (red) and Cool(blue) colours to suit personal preferences.Select Cool to give the white colour a blue tint,Standard to give the white colour a natral tint andWarm to give the white colour a red tint.Backlight❖To adjust the back light to be brighter or darker:0 ~ 100.Advanced Video❖DNR•To adjust the level by which to reduce thedigital noise.Press the34button to set DNR asOff,Low,Medium or High.MPEG NR•To adjust the level of MPEG NR. Press the34buttonto set MPEG NR as Off, Low, Medium or High.Trident-SXL.indd 16 2012-2-3 10:20:43
