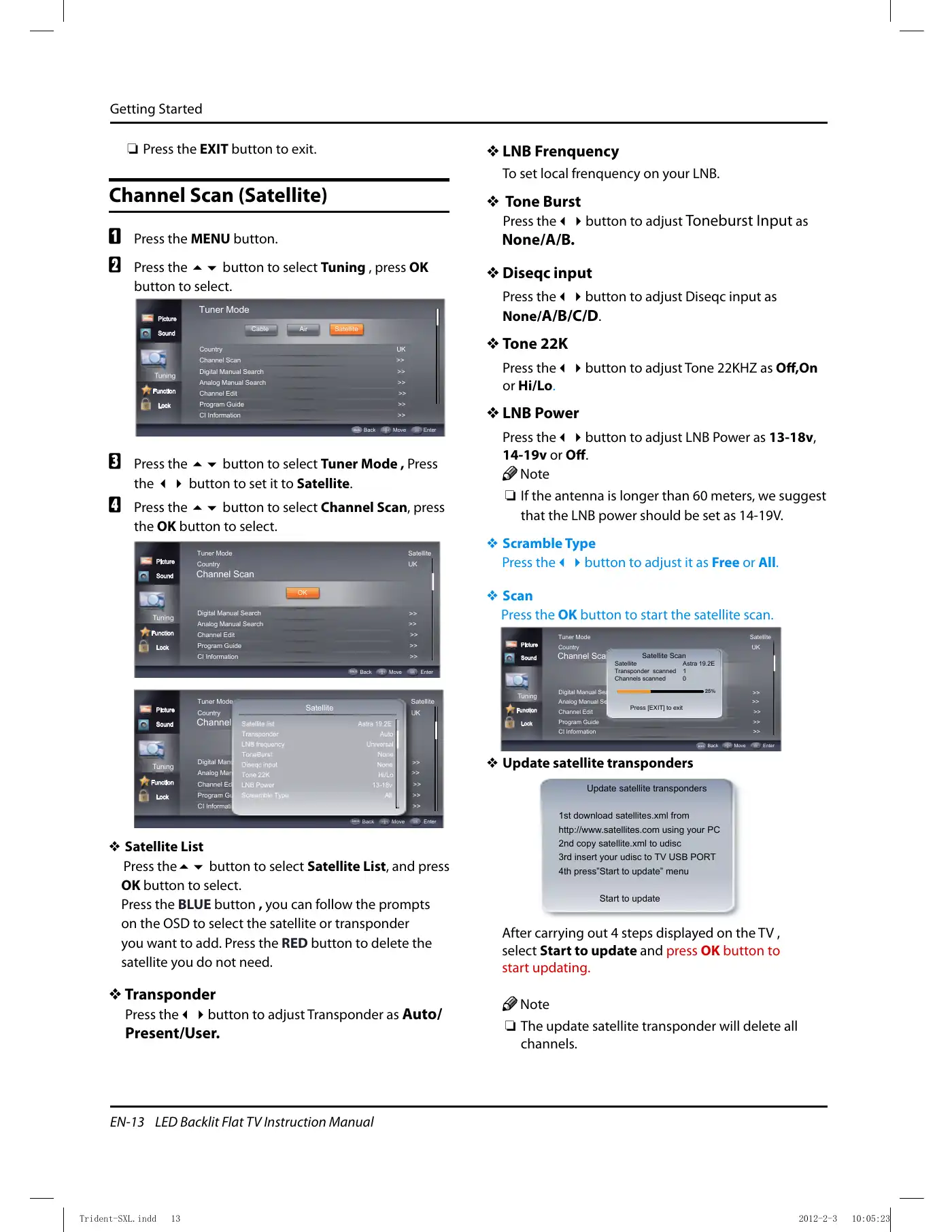

Getting StartedEN-13 LED Backlit Flat TV Instruction ManualPress the❏ EXIT button to exit.Channel Scan (Satellite)Press theA MENU button.Press theB 5 button to select Tuning , press OKbutton to select.FunctionLockCountry UKChannel Scan >>Digital Manual Search >>Analog Manual Search >>Channel Edit >>Program Guide >>CI Information >>PictureSoundTuner ModeTuningCable Air SatelliteBack Move Enter#BDLPress theC 5 button to select Tuner Mode , Pressthe 34 button to set it to Satellite.Press theD 5 button to select Channel Scan, pressthe OK button to select.FunctionLockDigital Manual SearchAnalog Manual Search >>Channel Edit >>Program Guide >>CI Information >>PictureSoundTuner Mode SatelliteCountry UKTuningBack Move EnterOKChannel ScanBack>>FunctionLockDigital Manual SearchAnalog Manual Search >>Channel Edit >>Program Guide >>CI Information >>PictureSoundTuner Mode SatelliteCountry UKTuningBack Move EnterOKChannel ScanBack>>SatelliteSatellite list Astra 19.2ETransponder AutoLNB frequency UniversalToneBurst NoneDiseqc input NoneTone 22K Hi/LoLNB Power 13-18vScreamble Type AllSatellite List❖Press the5 button to select Satellite List, and pressOK button to select.Press the BLUE button , you can follow the promptson the OSD to select the satellite or transponderyou want to add. Press the RED button to delete thesatellite you do not need.Transponder❖Press the34button to adjust Transponder as Auto/Present/User.LNB Frenquency❖To set local frenquency on your LNB.Tone Burst❖Press the34button to adjust Toneburst Input asNone/A/B.Diseqc input❖Press the34button to adjust Diseqc input asNone/ A/B/C/D.Tone 22K❖Press the34button to adjust Tone 22KHZ as Off,Onor Hi/Lo.LNB Power❖Press the34button to adjust LNB Power as 13-18v,14-19v or Off.NoteIf the antenna is longer than 60 meters, we suggest❏that the LNB power should be set as 14-19V.Scramble Type❖Press the34button to adjust it as Free or All.Scan❖Press the OK button to start the satellite scan.FunctionLockDigital Manual SearchAnalog Manual Search >>Channel Edit >>Program Guide >>CI Information >>PictureSoundTuner Mode SatelliteCountry UKTuningBack Move EnterOKChannel ScanBack>>Satellite ScanSatellite Astra 19.2ETransponder scanned 1Channels scanned 0Press [EXIT] to exitUpdate satellite transponders❖Update satellite transponders1st download satellites.xml fromhttp://www.satellites.com using your PC2nd copy satellite.xml to udisc3rd insert your udisc to TV USB PORT4th press”Start to update” menuStart to updateAfter carrying out 4 steps displayed on the TV ,select Start to update and press OK button tostart updating.NoteThe update satellite transponder will delete all❏channels.Trident-SXL.indd 13 2012-2-3 10:05:23
