Haier 75UF5550B Service Manual

Also see for 75UF5550: Service manual

Contents

Table of Contents2

Chapter 1. 1. 1. 1. General4

Chapter 2. 2. 2. 2. Speci9

Chapter 4. 4. 4. 4. Location14

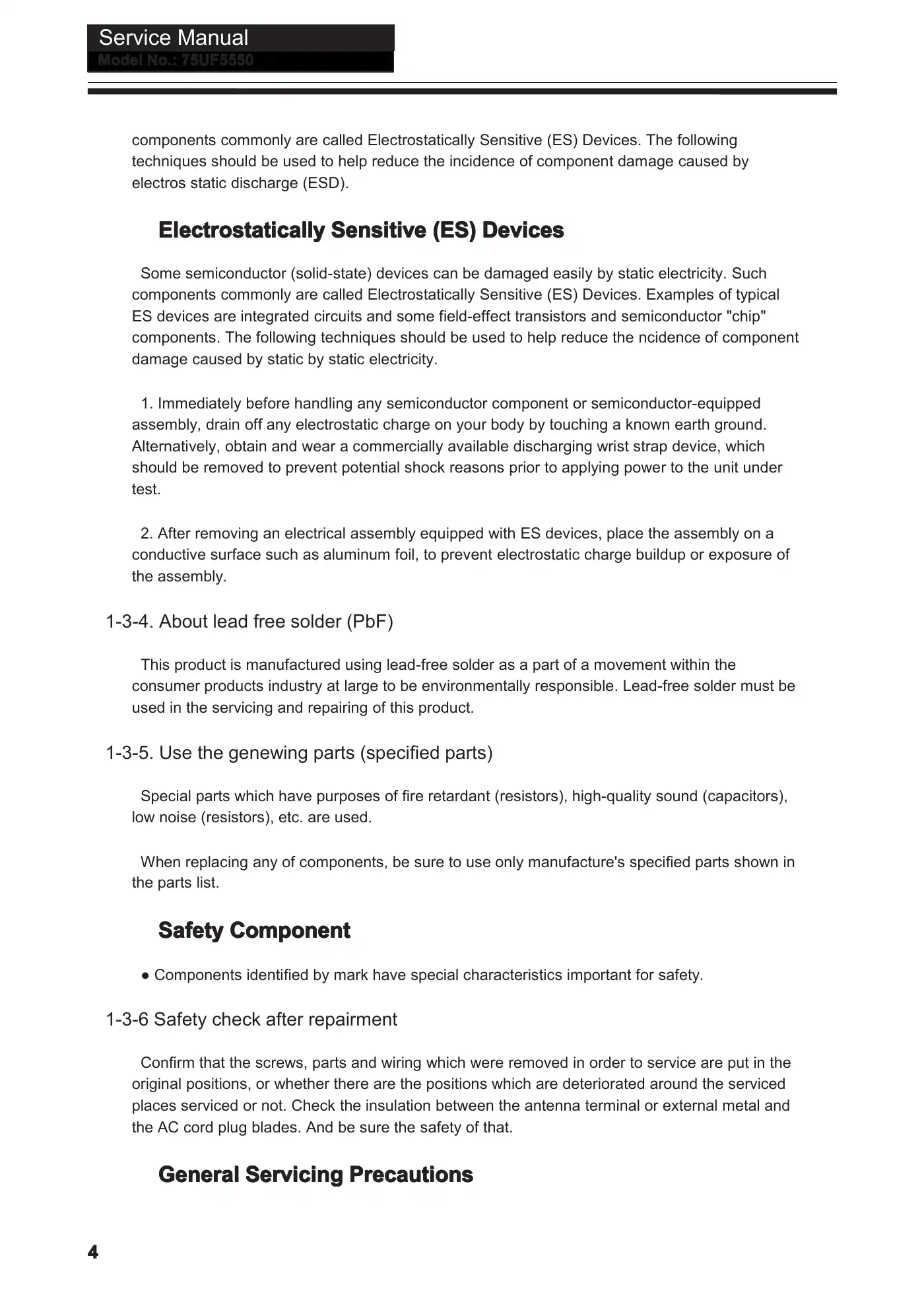

Haier 75UF5550B Service Manual Manual pdf 5 page image

ervice Manualodelodelodelodel No.:No.:No.:No.: 75UF555075UF555075UF555075UF5550components commonly are called Electrostatically Sensitive (ES) Devices. The followingtechniques should be used to help reduce the incidence of component damage caused byelectros static discharge (ESD).ElectrostaticallyElectrostaticallyElectrostaticallyElectrostatically SensitiveSensitiveSensitiveSensitive (ES)(ES)(ES)(ES) DevicesDevicesDevicesDevicesSome semiconductor (solid-state) devices can be damaged easily by static electricity. Suchcomponents commonly are called Electrostatically Sensitive (ES) Devices. Examples of typicalES devices are integrated circuits and some field-effect transistors and semiconductor "chip"components. The following techniques should be used to help reduce the ncidence of componentdamage caused by static by static electricity.1. Immediately before handling any semiconductor component or semiconductor-equippedassembly, drain off any electrostatic charge on your body by touching a known earth ground.Alternatively, obtain and wear a commercially available discharging wrist strap device, whichshould be removed to prevent potential shock reasons prior to applying power to the unit undertest.2. After removing an electrical assembly equipped with ES devices, place the assembly on aconductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure ofthe assembly.1-3-4. About lead free solder (PbF)This product is manufactured using lead-free solder as a part of a movement within theconsumer products industry at large to be environmentally responsible. Lead-free solder must beused in the servicing and repairing of this product.1-3-5. Use the genewing parts (specified parts)Special parts which have purposes of fire retardant (resistors), high-quality sound (capacitors),low noise (resistors), etc. are used.When replacing any of components, be sure to use only manufacture's specified parts shown inthe parts list.SafetySafetySafetySafety ComponentComponentComponentComponent● Components identified by mark have special characteristics important for safety.1-3-6 Safety check after repairmentConfirm that the screws, parts and wiring which were removed in order to service are put in theoriginal positions, or whether there are the positions which are deteriorated around the servicedplaces serviced or not. Check the insulation between the antenna terminal or external metal andthe AC cord plug blades. And be sure the safety of that.GeneralGeneralGeneralGeneral ServicingServicingServicingServicing PrecautionsPrecautionsPrecautionsPrecautions4444

/ 53
