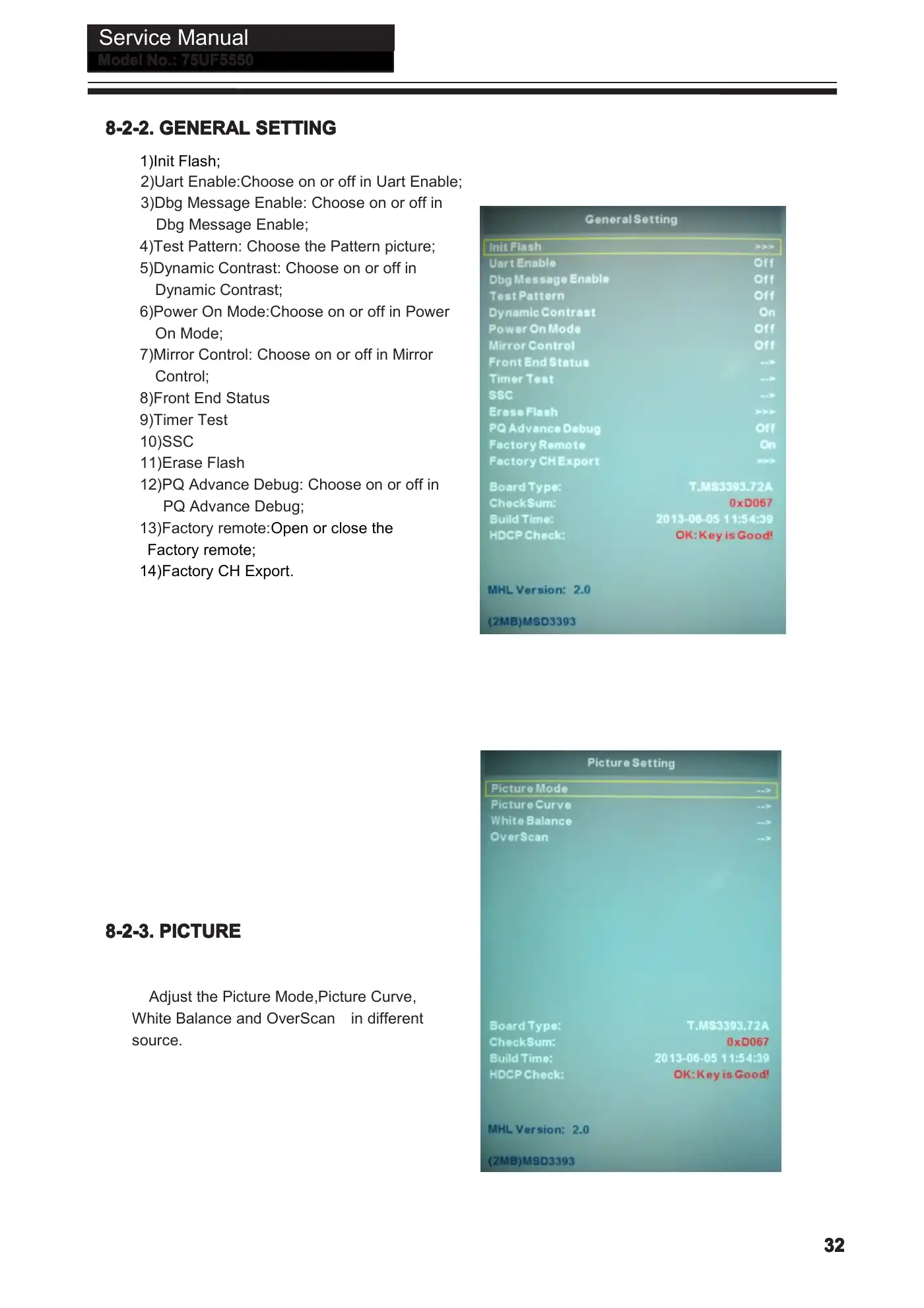

Haier 75UF5550B Service Manual Manual pdf 35 page image

ervice Manualodelodelodelodel No.:No.:No.:No.: 75UF555075UF555075UF555075UF55508-2-2.8-2-2.8-2-2.8-2-2. GENERALGENERALGENERALGENERAL SETTINGSETTINGSETTINGSETTING1)Init Flash;2)Uart Enable:Choose on or off in Uart Enable;3)Dbg Message Enable: Choose on or off inDbg Message Enable;4)Test Pattern: Choose the Pattern picture;5)Dynamic Contrast: Choose on or off inDynamic Contrast;6)Power On Mode:Choose on or off in PowerOn Mode;7)Mirror Control: Choose on or off in MirrorControl;8)Front End Status9)Timer Test10)SSC11)Erase Flash12)PQ Advance Debug: Choose on or off inPQ Advance Debug;13)Factory remote:Open or close theFactory remote;14)Factory CH Export.8-2-3.8-2-3.8-2-3.8-2-3. PICTUREPICTUREPICTUREPICTUREAdjust the Picture Mode,Picture Curve,White Balance and OverScan in differentsource.32323232
