Haier 75UF5550 Service Manual

Also see for 75UF5550: Service manual

Contents

Table of Contents2

Chapter 1. 1. 1. 1. General4

Chapter 2. 2. 2. 2. Speci9

Chapter 4. 4. 4. 4. Location14

Haier 75UF5550 Service Manual Manual pdf 12 page image

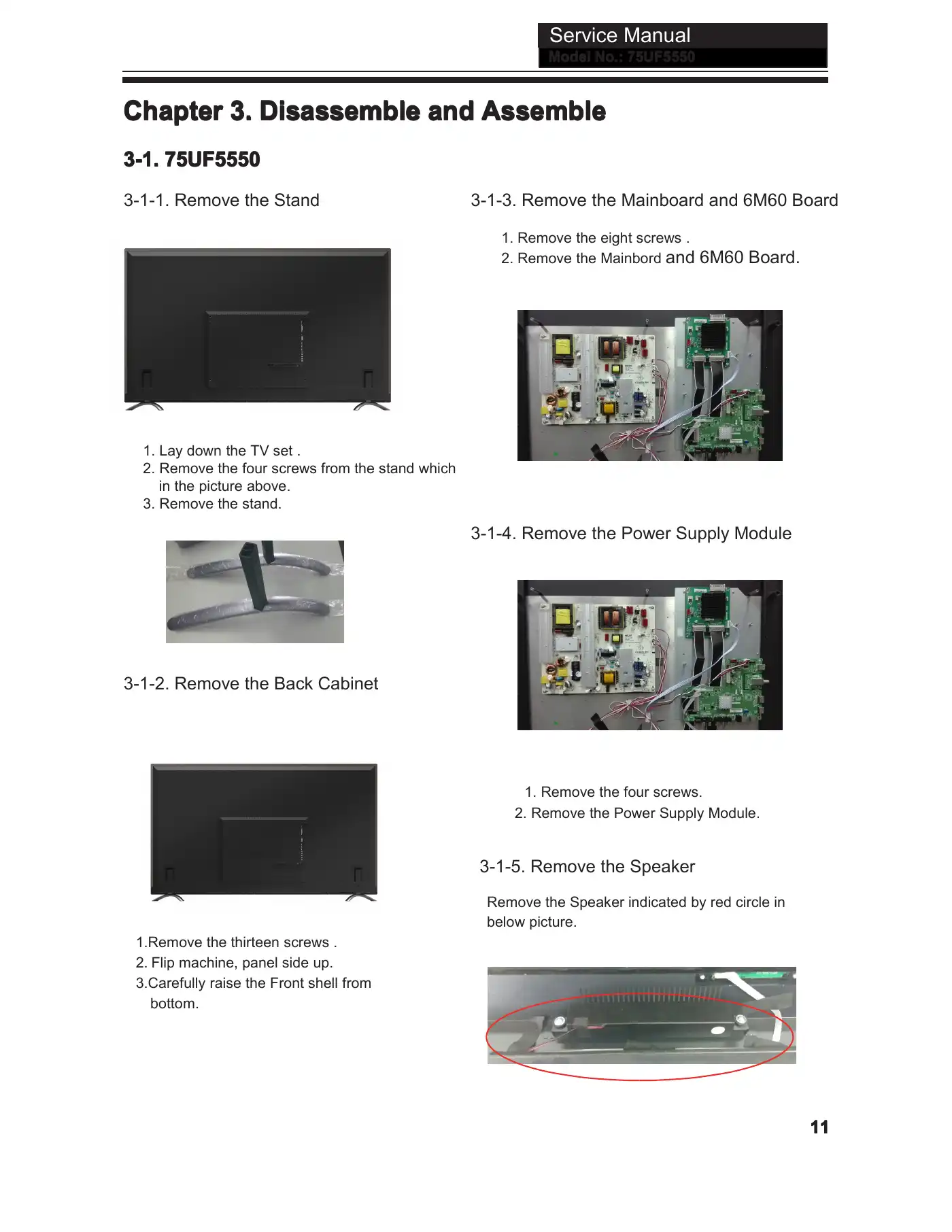

Service ManualModelModelModelModel No.:No.:No.:No.: 75UF555075UF555075UF555075UF5550apterapterhapterhapter 3.3.3.3. DisassembleDisassembleDisassembleDisassemble andandandand AssembleAssembleAssembleAssemble3-1.3-1.3-1.3-1. 75UF555075UF555075UF555075UF55503-1-1. Remove the Stand 3-1-3. Remove the Mainboard and 6M60 Board1. Remove the eight screws .2. Remove the Mainbord and 6M60 Board.1. Lay down the TV set .2. Remove the four screws from the stand whichin the picture above.3. Remove the stand.3-1-4. Remove the Power Supply Module3-1-2. Remove the Back Cabinet1. Remove the four screws.2. Remove the Power Supply Module.3-1-5. Remove the SpeakerRemove the Speaker indicated by red circle inbelow picture.1.Remove the thirteen screws .2. Flip machine, panel side up.3.Carefully raise the Front shell frombottom.11111111
