Haier 55E3500c Service Manual

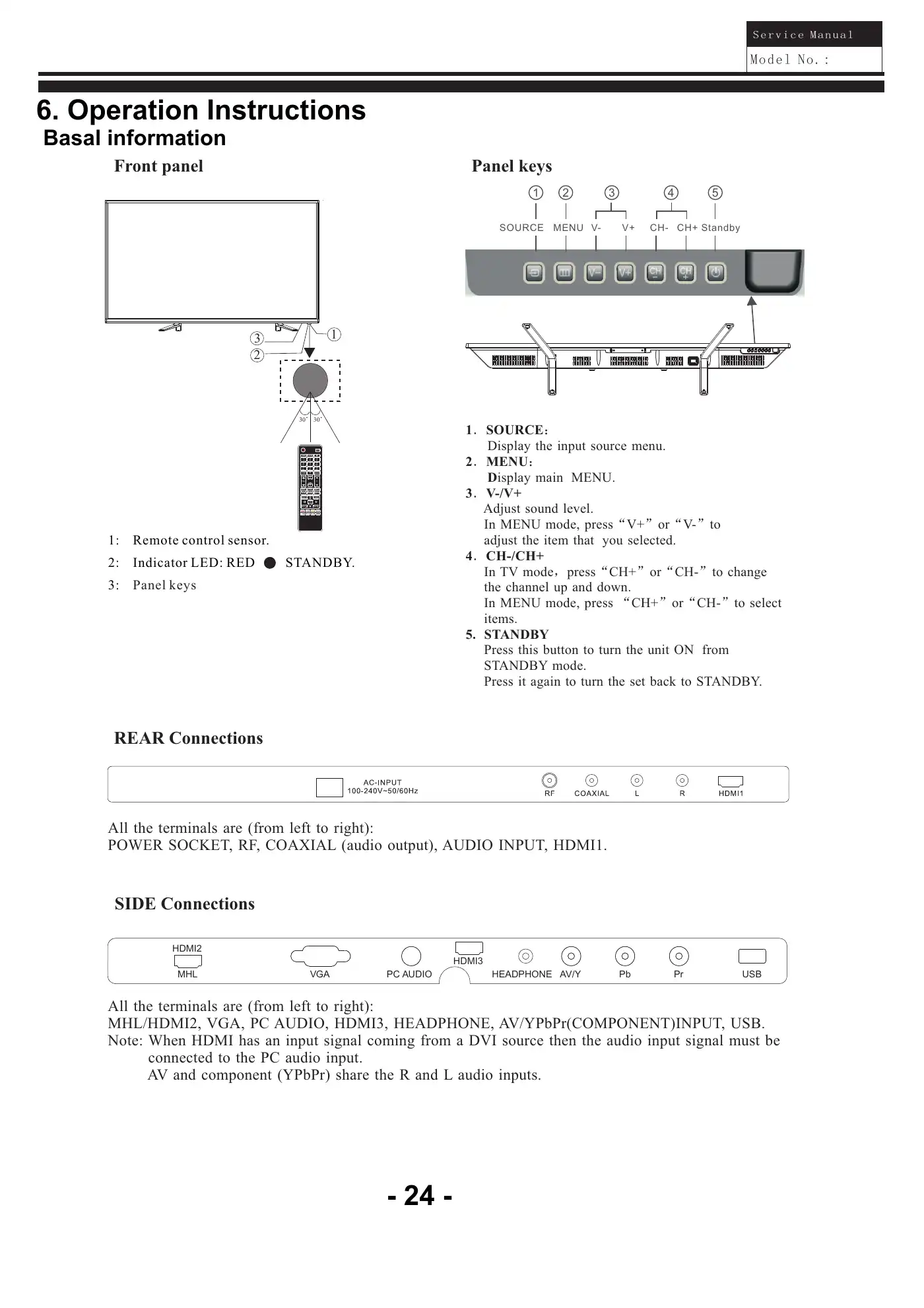

Front panelREAR ConnectionsSIDE ConnectionsAll the terminals are (from left to right):MHL/HDMI2, VGA, PC AUDIO, HDMI3, HEADPHONE, AV/YPbPr(COMPONENT)INPUT, USB.Note: When HDMI has an input signal coming from a DVI source then the audio input signal must beconnected to the PC audio input.AV and component (YPbPr) share the R and L audio inputs.All the terminals are (from left to right):POWER SOCKET, RF, COAXIAL (audio output), AUDIO INPUT, HDMI1.1: Remote control sensor.2: Indicator LED: RED STANDBY.3: Panel keys3230 3011．SOURCE：Display the input source menu.2．MENU：Display main MENU.3．V-/V+Adjust sound level.In MENU mode, press“V+”or“V-”toadjust the item that you selected.4．CH-/CH+In TV mode，press“CH+”or“CH-”to changethe channel up and down.In MENU mode, press “CH+”or“CH-”to selectitems.5. STANDBYPress this button to turn the unit ON fromSTANDBY mode.Press it again to turn the set back to STANDBY.SOURCE MENU V- V+ CH- CH+ Standby1 2 3 4 5Panel keysUSBAV/Y Pb PrVGAHDMI3PC AUDIO HEADPHONEHDMI2MHLService ManualModel No.:6. Operation InstructionsBasal information- 24 -

/ 54
