Haier 55DA5550 Service Manual

Also see for 55DA5550: User manual

Contents

Table of Contents2

Chapter 1. General Information4

Chapter 2. Specification9

Chapter 3. Disassemble and Assemble12

Chapter 4. Location of Controls and Components14

Chapter 6. Operation Instructions21

Chapter 7. Electrical Parts24

Chapter 8. Measurements and Adjustments33

Chapter 9. Trouble Shooting37

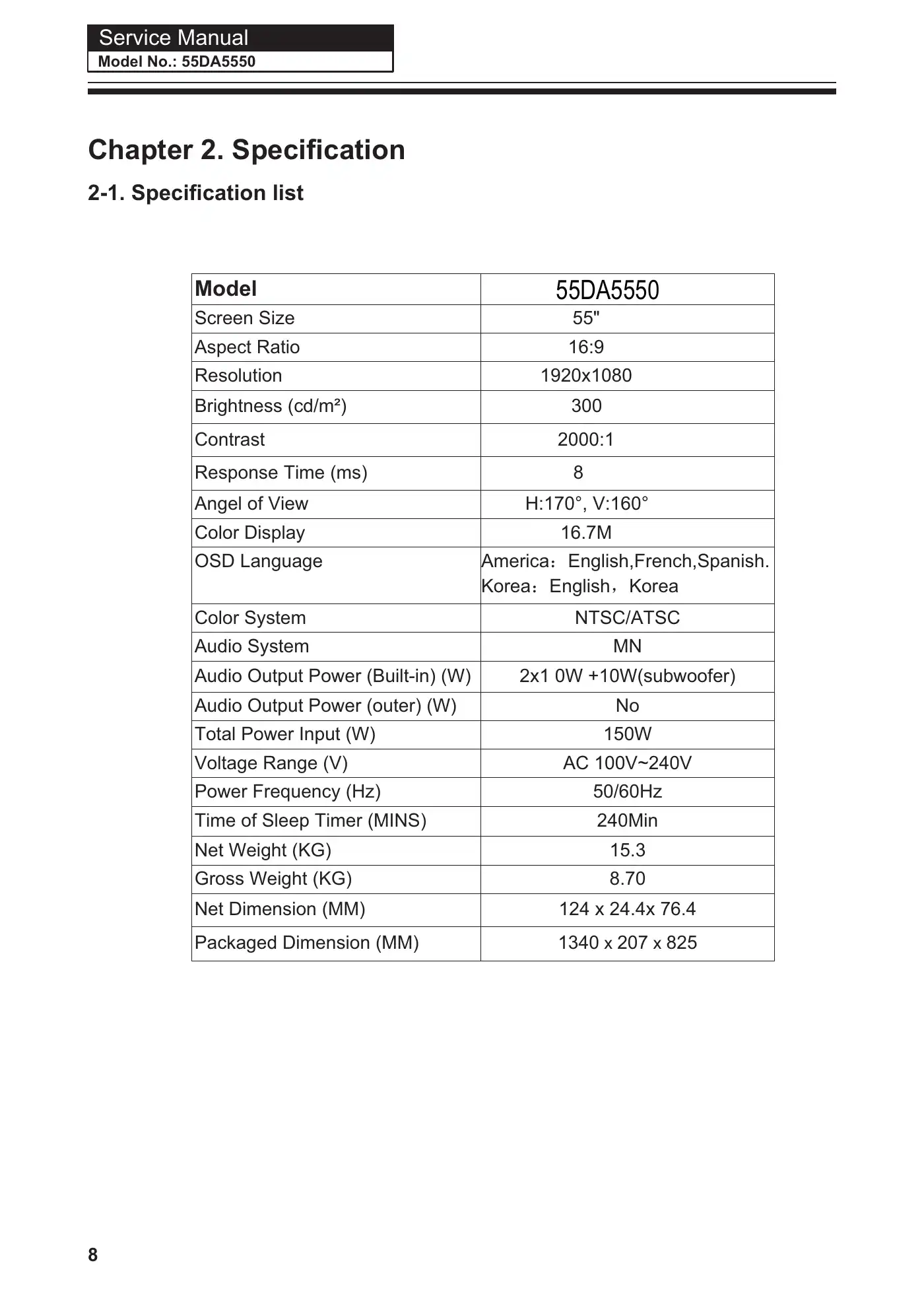

Haier 55DA5550 Service Manual Manual pdf 9 page image

ModelScreen Size 55"Aspect Ratio 16:9Resolution 1920x1080Brightness (cd/m²) 300Contrast 2000:1Response Time (ms) 8Angel of View H:170°, V:160°Color Display 16.7MOSD Language America˖English,French,Spanish.Korea˖EnglishˈKoreaColor System NTSC/ATSCAudio System MNAudio Output Power (Built-in) (W) 2x1 0W +10W(subwoofer)Audio Output Power (outer) (W) NoTotal Power Input (W) 150WVoltage Range (V) AC 100V~240VPower Frequency (Hz) 50/60HzTime of Sleep Timer (MINS) 240MinNet Weight (KG) 15.3Gross Weight (KG) 8.70Net Dimension (MM) 124 x 24.4x 76.4Packaged Dimension (MM) 1340 x 207 x 825Service ManualChapter 2. Specification2-1. Specification list8Model No.: 55DA555055DA5550
