Haier 55DA5550 Service Manual

Also see for 55DA5550: User manual

Contents

Table of Contents2

Chapter 1. General Information4

Chapter 2. Specification9

Chapter 3. Disassemble and Assemble12

Chapter 4. Location of Controls and Components14

Chapter 6. Operation Instructions21

Chapter 7. Electrical Parts24

Chapter 8. Measurements and Adjustments33

Chapter 9. Trouble Shooting37

Haier 55DA5550 Service Manual Manual pdf 12 page image

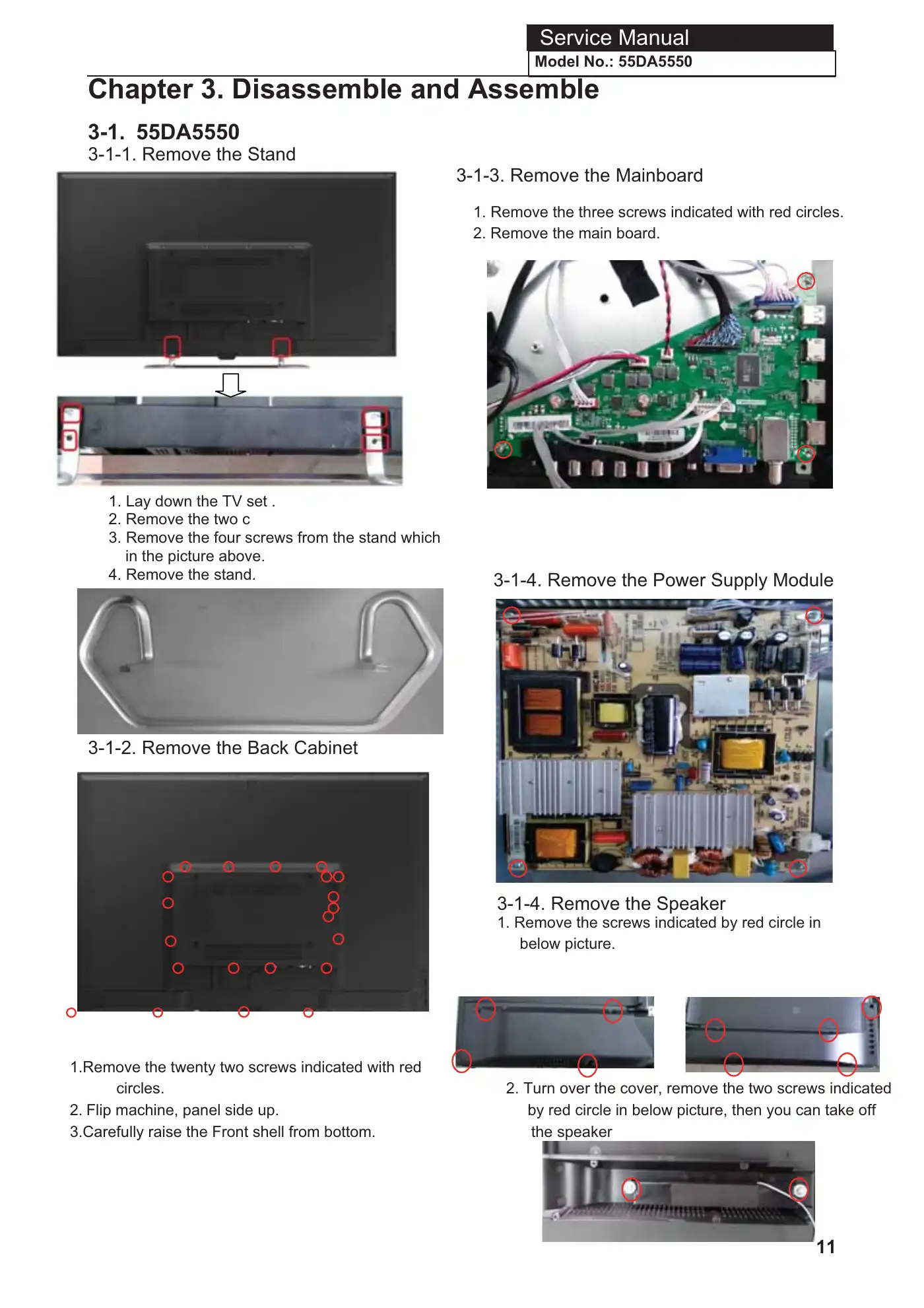

3-1. 55DA5550Service ManualChapter 3. Disassemble and Assemble3-1-1. Remove the Stand3-1-3. Remove the Mainboard1. Remove the three screws indicated with red circles.2. Remove the main board.1. Lay down the TV set .2. Remove the two c3. Remove the four screws from the stand whichin the picture above.4. Remove the stand. 3-1-4. Remove the Power Supply Module3-1-2. Remove the Back Cabinet3-1-4. Remove the Speaker1. Remove the screws indicated by red circle inbelow picture.1.Remove the twenty two screws indicated with redcircles. 2. Turn over the cover, remove the two screws indicated2.Flip machine, panel side up. by red circle in below picture, then you can take off3.Carefully raise the Front shell from bottom. the speaker11Model No.: 55DA5550
