Haier 48E2500 Service Manual

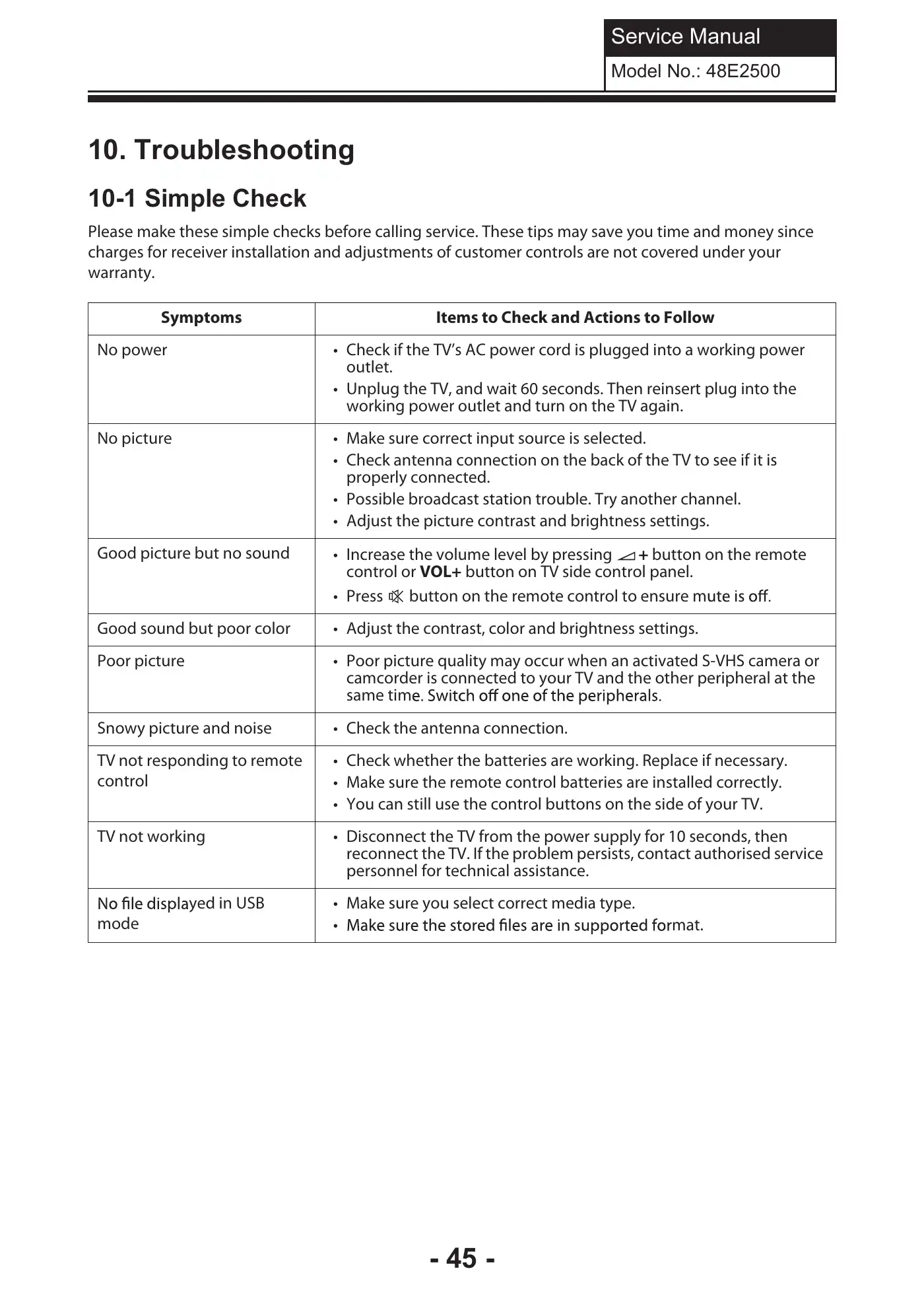

- 45 -Service ManualModel No.: 48E250010. Troubleshooting10-1 Simple CheckPlease make these simple checks before calling service. These tips may save you time and money sincecharges for receiver installation and adjustments of customer controls are not covered under yourwarranty.wolloFotsnoitcAdnakcehCotsmetIsmotpmySNo power • Check if the TV’s AC power cord is plugged into a working poweroutlet.• Unplug the TV, and wait 60 seconds. Then reinsert plug into theworking power outlet and turn on the TV again.No picture • Make sure correct input source is selected.• Check antenna connection on the back of the TV to see if it isproperly connected.• Possible broadcast station trouble. Try another channel.• Adjust the picture contrast and brightness settings.Good picture but no sound • Increase the volume level by pressing + button on the remotecontrol or VOL+ button on TV side control panel.• Press button on the remote control to ensure mGood sound but poor color • Adjust the contrast, color and brightness settings.Poor picture • Poor picture quality may occur when an activated S-VHS camera orcamcorder is connected to your TV and the other peripheral at thesame timSnowy picture and noise • Check the antenna connection.TV not responding to remotecontrol• Check whether the batteries are working. Replace if necessary.• Make sure the remote control batteries are installed correctly.• You can still use the control buttons on the side of your TV.TV not working • Disconnect the TV from the power supply for 10 seconds, thenreconnect the TV. If the problem persists, contact authorised servicepersonnel for technical assistance.yed in USBmode• Make sure you select correct media type.• mat.

/ 53

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

If your Haier 48E2500 LED TV is not turning on, it is recommended to contact an experienced professional technician for service or repair. Attempting to service or repair the product yourself could result in serious injury or death.

The resolution of the Haier 48E2500 TV is 1920 x 1080 pixels.

To prepare the Haier 48E2500 TV for wall mounting, first remove the stand by unscrewing the four MB4 x 22mm screws. Then, secure a UL listed wall mount bracket to the back of the TV using the appropriate screws. Ensure the TV is at least 2.36 inches (60 mm) from the wall to prevent cable interference. Follow the instructions provided with the wall mount bracket for proper installation.

The Haier 48E2500 supports HDMI video/audio, component video (which requires an additional audio connection), composite video (which also requires an additional audio connection), analog audio input, and coaxial digital audio connections.

No, the cables are not included in the package. You will need to purchase them separately.

To connect headphones to the Haier 48E2500 TV, use the HEADPHONE jack. When headphones are inserted, the TV speakers will be muted.

Check the antenna connection on the back of the TV to ensure it is properly connected.

If the EB202 voltage is below 380V, first check if the UB202 voltage is 15V. If it is not, check the power components (DB201, QB201) for any damage. If any components are damaged, replace them. If the issue persists, check if QB304 is damaged and replace it if necessary.

If your Haier 48E2500 TV has no sound, first check the AMP power. If the AMP power is normal, check the voltage at PIN1 of the AMP chip. If that is normal, check the power supply circuit. If the power supply circuit is fine, check the control circuit. If the control circuit is okay, check the input signal. If the input signal is normal, check the circuit from U1 to the AMP. If that is fine, check the output signal. If the output signal is normal, check the circuit between the output jack and the AMP chip. If all else fails, consider changing the AMP chip.

If your Haier 48E2500 TV can't search for any channels or displays no picture, first check the input RF signal. If the RF signal is normal, check the RF source. If the RF source is fine, check the tuner power. If the tuner power is normal, check if the IIC (Inter-Integrated Circuit) is working. If the IIC is fine, check the power supply circuit. If the power supply circuit is okay, check the IIC circuit. If the IIC circuit is fine, check the IFP/IFN output signal. If the IFP/IFN output signal is normal, check the tuner and peripheral components. If all else fails, check the circuit from the tuner to U1 (MSD3393).
