Haier 48E2500 Service Manual

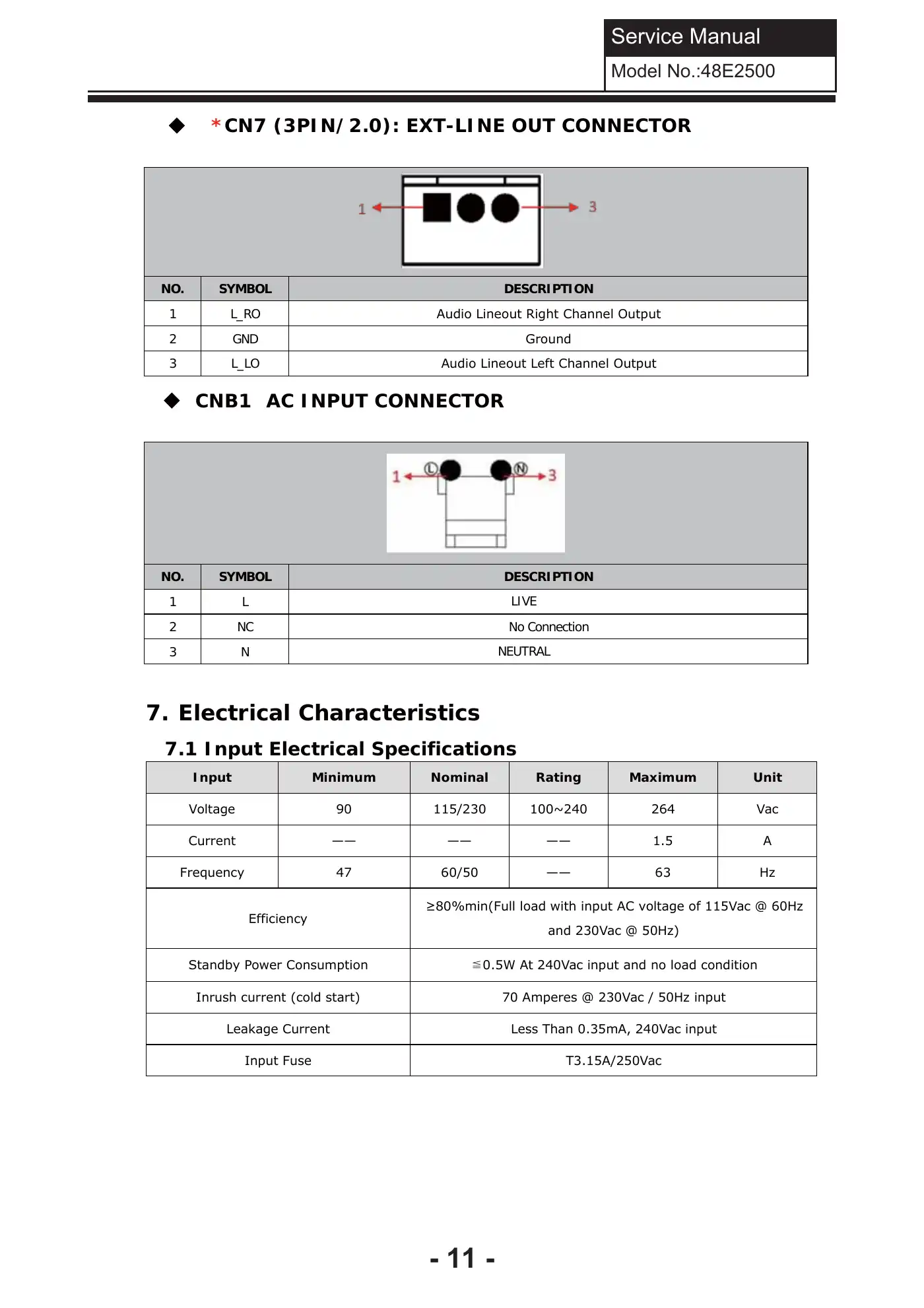

- 11 -Service ManualModel No.:48E2500*CN7 (3PIN/2.0): EXT-LINE OUT CONNECTORNO. SYMBOL DESCRIPTION1 L_RO Audio Lineout Right Channel Output2 GND Ground3 L_LO Audio Lineout Left Channel OutputCNB1 AC INPUT CONNECTORNO. SYMBOL DESCRIPTION1 L LIVE2 NC No Connection3 N NEUTRAL7. Electrical Characteristics7.1 Input Electrical SpecificationsInput Minimum Nominal Rating Maximum UnitVoltage 90 115/230 100~240 264 VacCurrent —— —— —— 1.5 AFrequency 47 60/50 —— 63 HzEfficiency ≥80%min(Full load with input AC voltage of 115Vac @ 60Hzand 230Vac @ 50Hz)Standby Power Consumption̰ 0.5W At 240Vac input and no load conditionInrush current (cold start) 70 Amperes @ 230Vac / 50Hz inputLeakage Current Less Than 0.35mA, 240Vac inputInput Fuse T3.15A/250Vac

/ 53
