Haier 42F3500 User Manual Manual pdf 11 page image

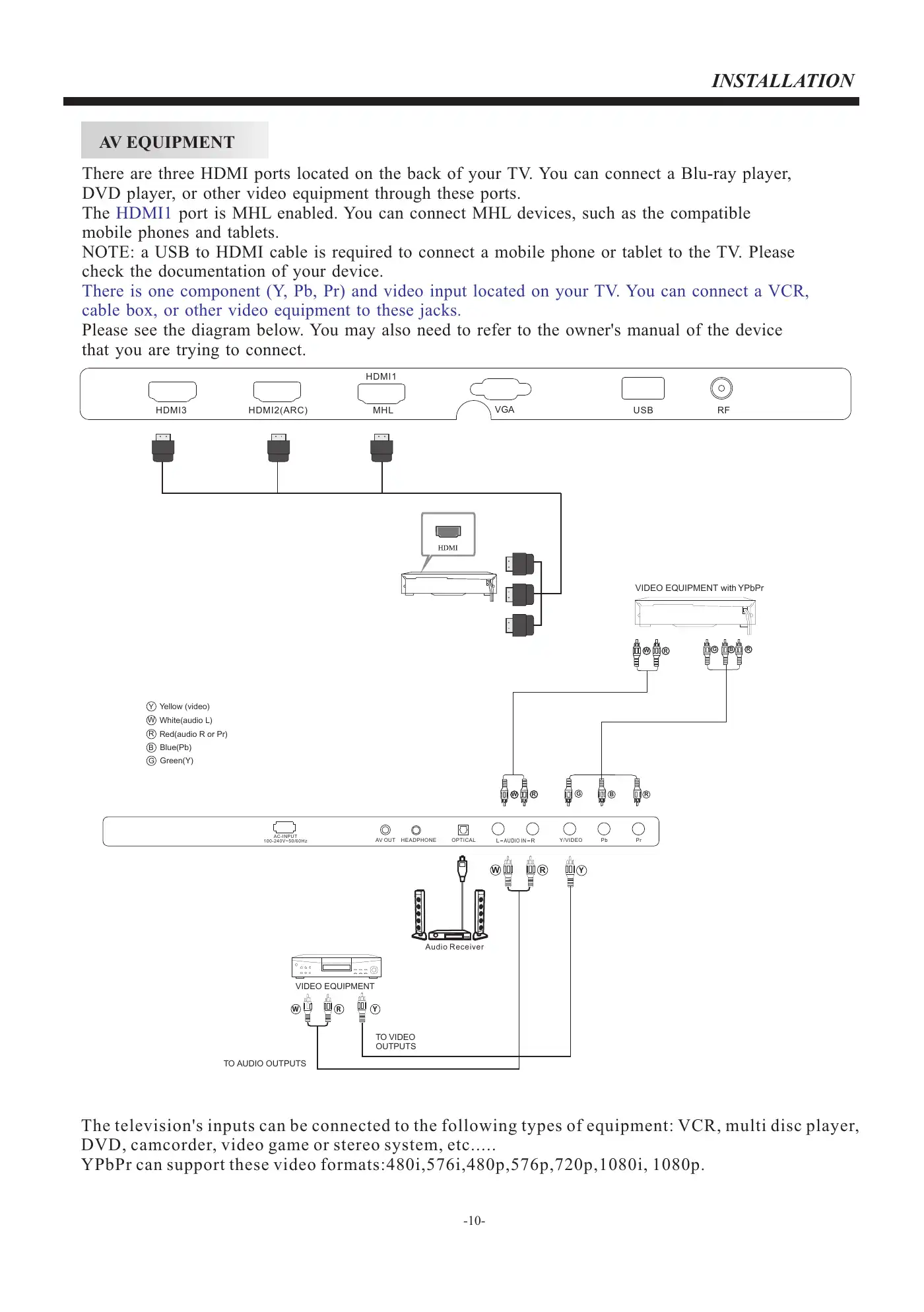

INSTALLATION-10-AV EQUIPMENTThe television's inputs can be connected to the following types of equipment: VCR, multi disc player,DVD, camcorder, video game or stereo system, etc.....YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i, 1080p.Yellow (video)White(audio L)Red(audio R or Pr)YWRBlue(Pb)Green(Y)BGTO AUDIO OUTPUTSVIDEO EQUIPMENTTO VIDEOOUTPUTSVIDEO EQUIPMENT with YPbPrOPTICALAC-INPUT100-240V~50/60Hz Y/VIDEO Pb PrL RAUDIO INHEADPHONEAV OUTHDMI3 HDMI2(ARC) VGA R FUSBMHLHDMI1Audio ReceiverW R YW R YG B RW RG B RW RThere are three HDMI ports located on the back of your TV. You can connect a Blu-ray player,DVD player, or other video equipment through these ports.The port is MHL enabled. You can connect MHL devices, such as the compatiblemobile phones and tablets.NOTE: a USB to HDMI cable is required to connect a mobile phone or tablet to the TV. Pleasecheck the documentation of your device.Please see the diagram below. You may also need to refer to the owner's manual of the devicethat you are trying to connect.HDMI1There is one component (Y, Pb, Pr) and video input located on your TV. You can connect a VCR,cable box, or other video equipment to these jacks.

/ 50
