Haier 42E3500a Service Manual
Haier 42E3500a Service Manual
Table of content
Contents
1 General Information
2
Table of Contents
2
General Guidelines
4
Important Notice
4
How to Read this Service Manual
7
3 Location of Controls and Components
9
Board Location
9
Main Board & AV Board
9
Power Board
12
LCD Panel
14
4 Disassemble and Assemble
15
Remove the Pedestal
15
Remove the
15
Remove the Adhesive Tape
15
Remove the Main Board
16
Remove the Speaker
16
Remove the Remote Control Board
17
Remove the Power Board
17
5 Installation Instructions
18
External Equipment Connections
18
HDMI Connections
22
Back Panel Controls
24
6 Operation Instructions
25
Front Panel Controls
25
Universal Remote Control
26
7 Electrical Parts
27
Wiring Connection Diagram
32
8 Measurements and Adjustments
33
How to Enter into the Factory Model
36
How to Update Software
37
How to Enter into the Hotel Model
38
9 Trouble-Shooting
39
Simple Check
39
Main Board Failure Check
40
Panel Failure
48

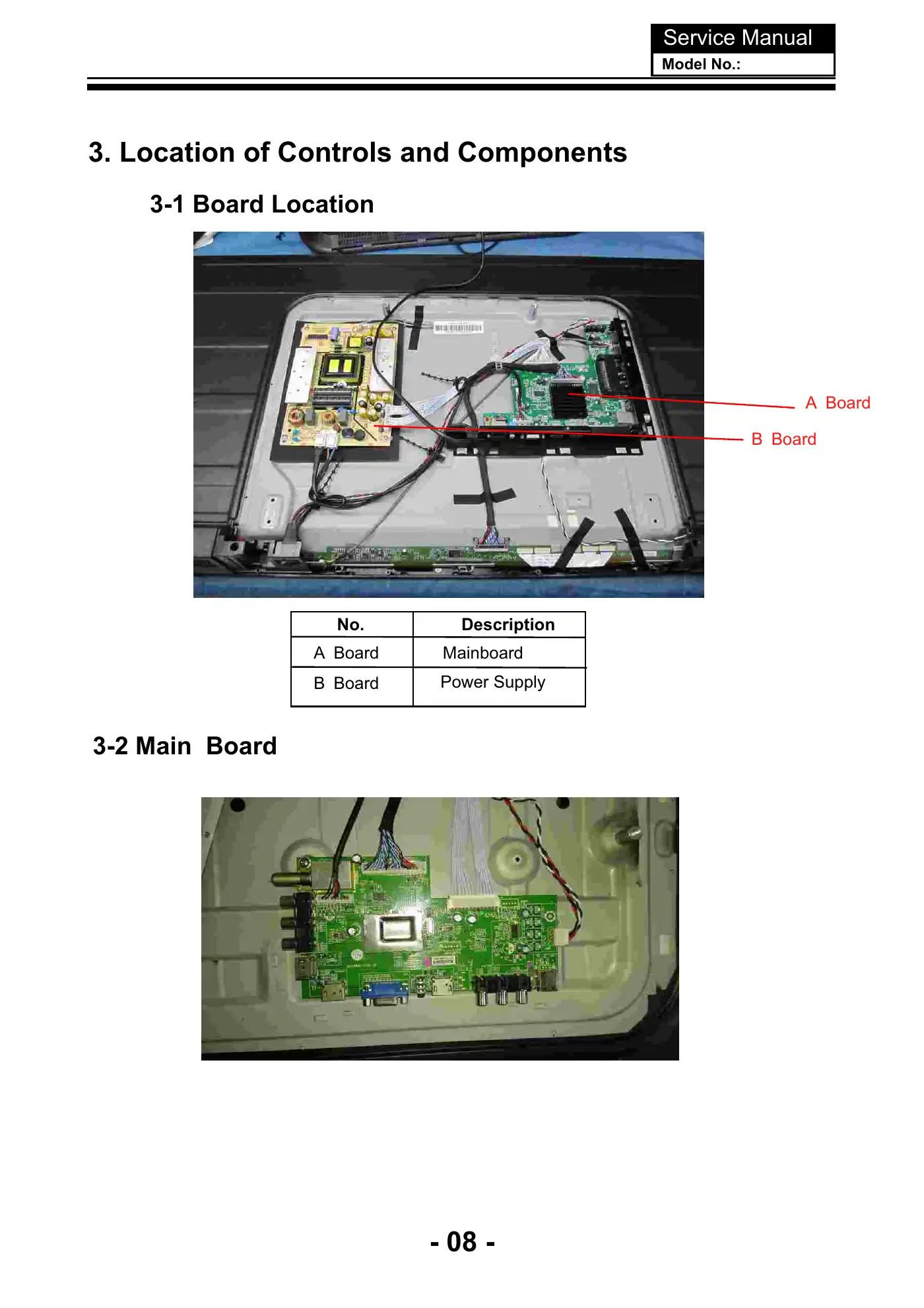

- 08 -Service ManualModel No.:3. Location of Controls and Components3-1 Board LocationNo. Description3-2 Main BoardA BoardA Board MainboardB Board Power SupplyB Board
