Haier 42D3500 Service Manual

Contents

Table of Contents2

Chapter 1. General Information4

Chapter 2. SpeciCation9

Chapter 3. Disassemble and Assemble12

Chapter 4. Location of Controls and Components14

Chapter 5. Installation Instructions19

Chapter 6. Operation Instructions21

Chapter 7. Electrical Parts24

Chapter 8. Measurements and Adjustments32

Chapter 9. Trouble Shooting36

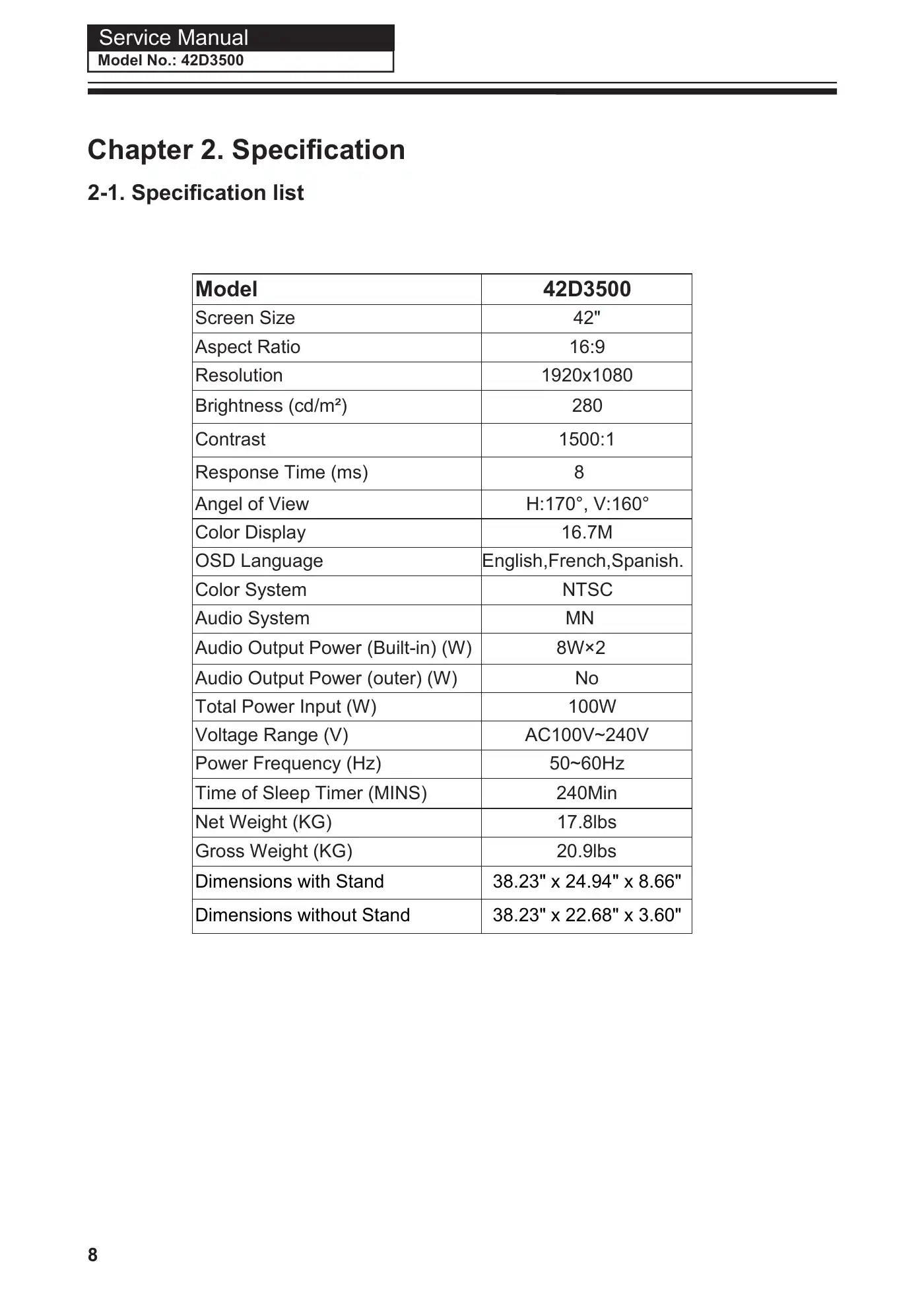

Haier 42D3500 Service Manual Manual pdf 9 page image

Model 42D3500Screen Size 42"Aspect Ratio 16:9Resolution 1920x1080Brightness (cd/m²) 280Contrast 1500:1Response Time (ms) 8Angel of View H:170°, V:160°Color Display 16.7MOSD Language English,French,Spanish.Color System NTSCAudio System MNAudio Output Power (Built-in) (W) 8W×2Audio Output Power (outer) (W) NoTotal Power Input (W) 100WVoltage Range (V) AC100V~240VPower Frequency (Hz) 50~60HzTime of Sleep Timer (MINS) 240MinNet Weight (KG) 17.8lbsGross Weight (KG) 20.9lbsDimensions with Stand 38.23" x 24.94" x 8.66"Dimensions without Stand 38.23" x 22.68" x 3.60"Service ManualModel No.: 42D3500Chapter 2. Specication2-1. Specication list8
