Haier 42D3500 Service Manual

Contents
  1. Table of Contents2
  2. Chapter 1. General Information4
  3. Chapter 2. SpeciCation9
  4. Chapter 3. Disassemble and Assemble12
  5. Chapter 4. Location of Controls and Components14
  6. Chapter 5. Installation Instructions19
  7. Chapter 6. Operation Instructions21
  8. Chapter 7. Electrical Parts24
  9. Chapter 8. Measurements and Adjustments32
  10. Chapter 9. Trouble Shooting36
Haier 42D3500 Service Manual Manual pdf 16 page image

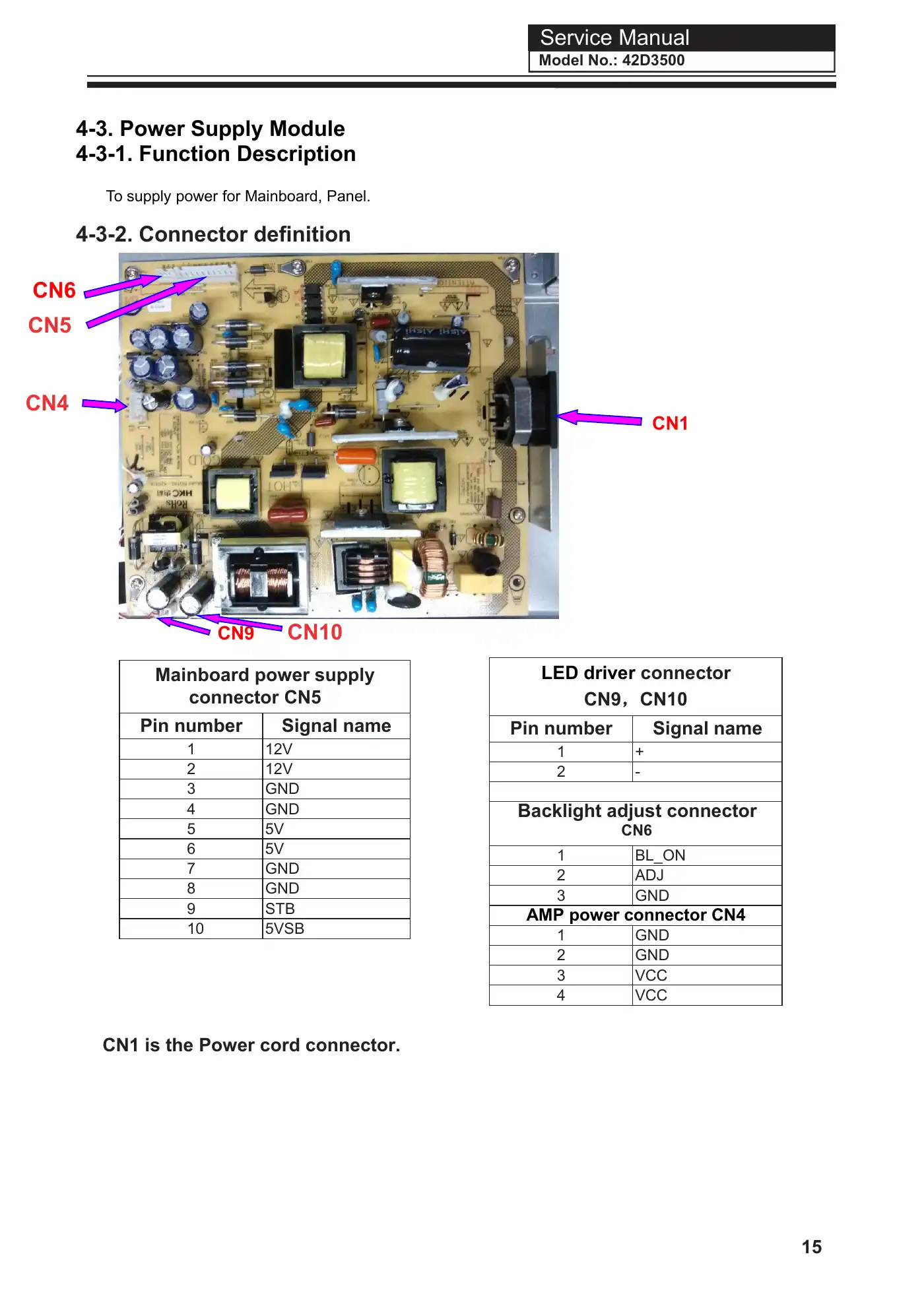

LED driver connectorCN9，CN10Pin number Signal name1 +2 -Backlight adjust connectorCN61 BL_ON2 ADJ3 GNDAMP power connector CN41 GND2 GND3 VCC4 VCCMainboard power supplyconnector CN5Pin number Signal name1 12V2 12V3 GND4 GND5 5V6 5V7 GND8 GND9 STB10 5VSBService ManualModel No.: 42D35004-3. Power Supply Module4-3-1. Function DescriptionTo supply power for Mainboard, Panel.4-3-2. Connector denitionCN6CN5CN4 CN1CN9 CN10CN1 is the Power cord connector.15
