Haier 42D3500 Service Manual

Contents
  1. Table of Contents2
  2. Chapter 1. General Information4
  3. Chapter 2. SpeciCation9
  4. Chapter 3. Disassemble and Assemble12
  5. Chapter 4. Location of Controls and Components14
  6. Chapter 5. Installation Instructions19
  7. Chapter 6. Operation Instructions21
  8. Chapter 7. Electrical Parts24
  9. Chapter 8. Measurements and Adjustments32
  10. Chapter 9. Trouble Shooting36

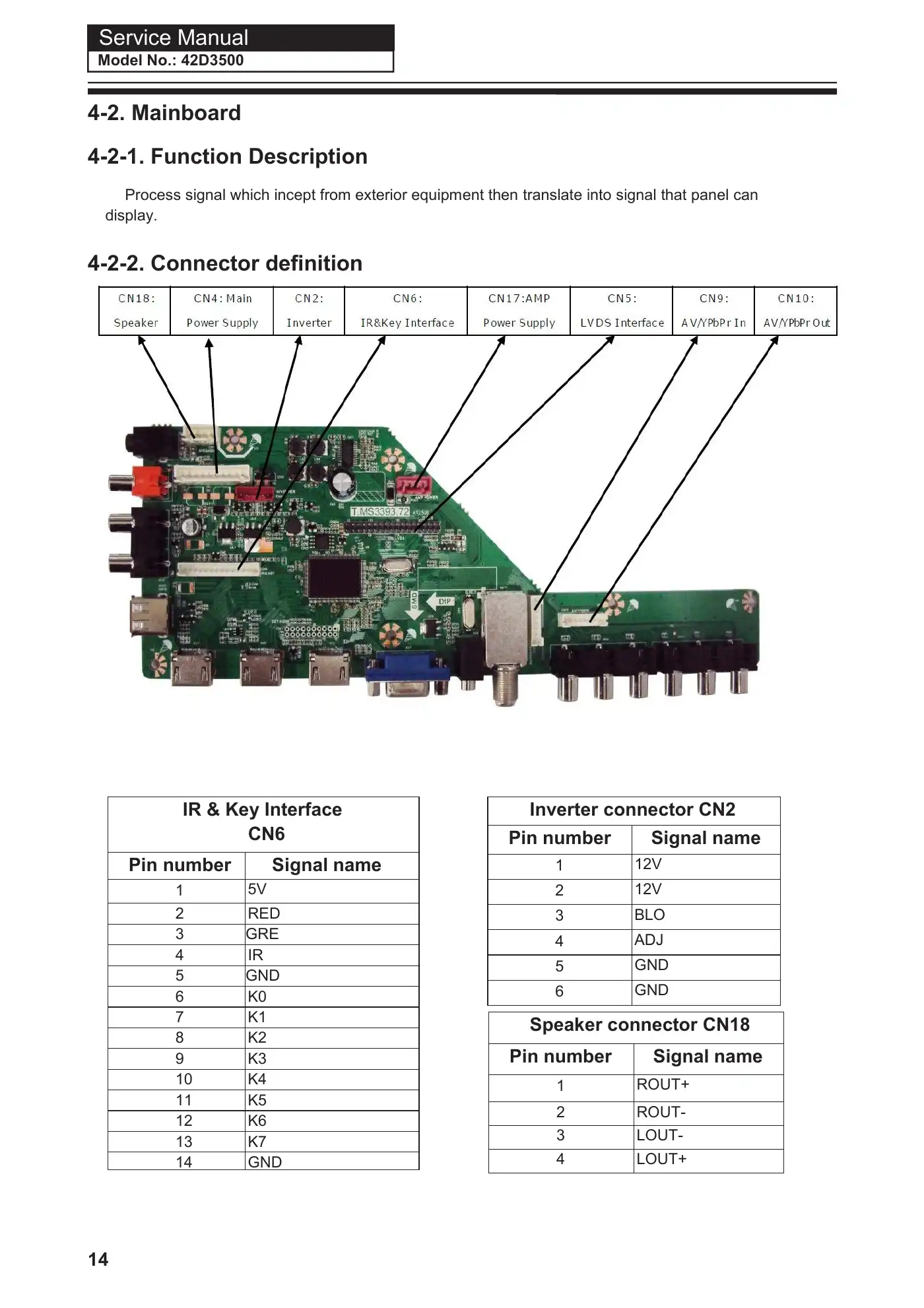

Haier 42D3500 Service Manual Manual pdf 15 page image
Service ManualModel No.: 42D35004-2. Mainboard4-2-1. Function DescriptionProcess signal which incept from exterior equipment then translate into signal that panel candisplay.4-2-2. Connector denition14IR & Key InterfaceCN6Pin number Signal name1 5V2 RED3 GRE4 IR5 GND6 K07 K18 K29 K310 K411 K512 K613 K714 GNDInverter connector CN2Pin number Signal name1 12V2 12V3 BLO4 ADJ5 GND6 GNDSpeaker connector CN18Pin number Signal name1 ROUT+2 ROUT-3 LOUT-4 LOUT+
