Haier 40G2500 User Manual

Language

Contents

Haier 40G2500 User Manual Manual pdf 8 page image

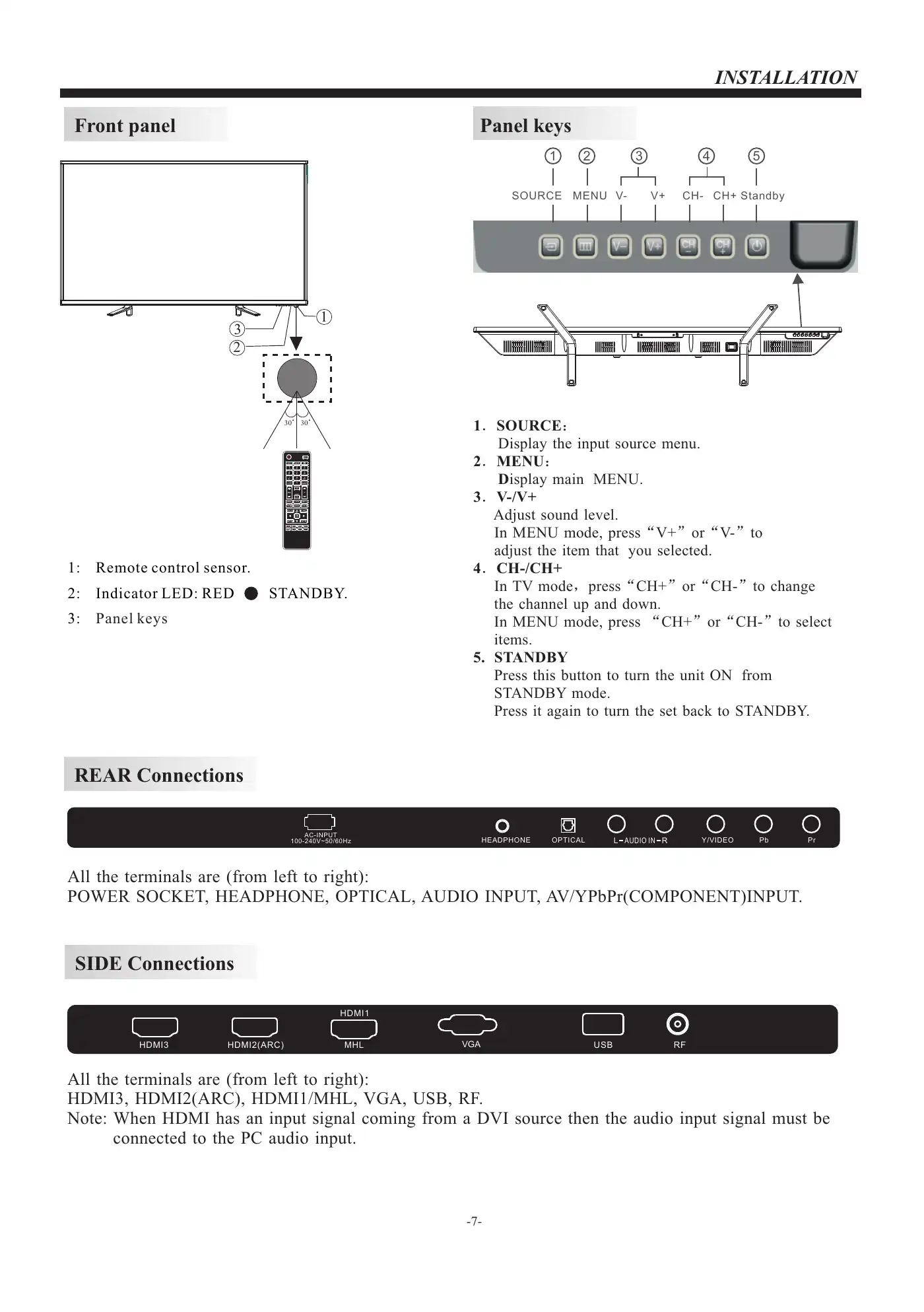

-7-INSTALLATIONFront panelREAR ConnectionsSIDE ConnectionsAll the terminals are (from left to right):HDMI3, VGA, USB, RF.Note: When HDMI has an input signal coming from a DVI source then the audio input signal must beconnected to the PC audio input.HDMI2(ARC), HDMI1/MHL,All the terminals are (from left to right):POWER SOCKET, , AUDIO INPUT,HEADPHONE, OPTICAL AV/YPbPr(COMPONENT)INPUT.1: Remote control sensor.2: Indicator LED: RED STANDBY.3: Panel keys1．SOURCE：Display the input source menu.2．MENU：Display main MENU.3．V-/V+Adjust sound level.In MENU mode, press“V+”or“V-”toadjust the item that you selected.4．CH-/CH+In TV mode，press“CH+”or“CH-”to changethe channel up and down.In MENU mode, press “CH+”or“CH-”to selectitems.5. STANDBYPress this button to turn the unit ON fromSTANDBY mode.Press it again to turn the set back to STANDBY.SOURCE MENU V- V+ CH- CH+ Standby1 2 3 4 5Panel keys3230 301HDMI3 HDMI2(ARC) VGA R FUSBMHLHDMI1OPTICALAC-INPUT100-240V~50/60Hz Y/VIDEO Pb PrL RAUDIO INHEADPHONE
