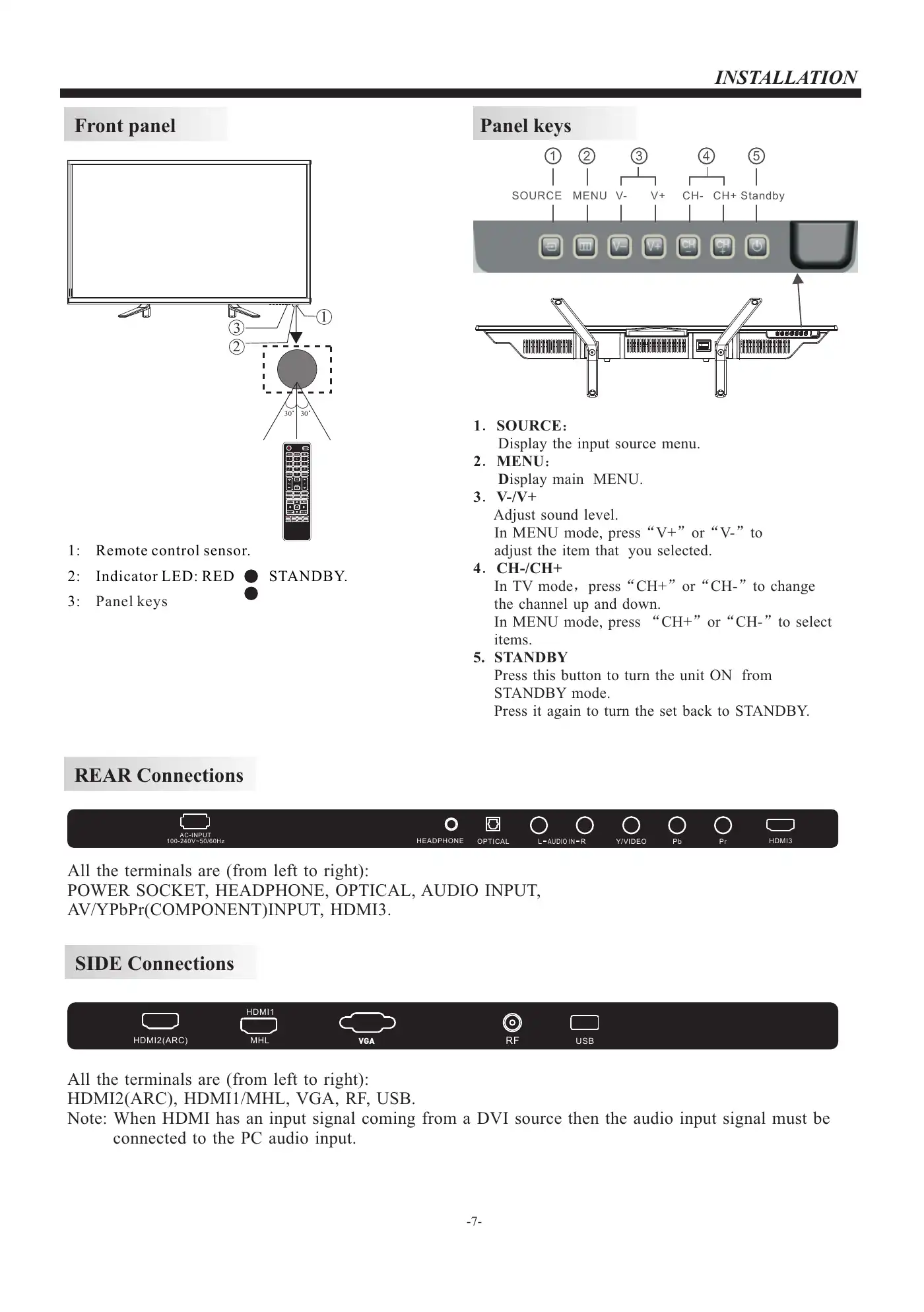

-7-INSTALLATIONFront panelREAR ConnectionsSIDE ConnectionsAll the terminals are (from left to right):VGA, RF, .Note: When HDMI has an input signal coming from a DVI source then the audio input signal must beconnected to the PC audio input.HDMI2(ARC), HDMI1/MHL, USBAll the terminals are (from left to right):POWER SOCKET, , AUDIO INPUT,HEADPHONE, OPTICALAV/YPbPr(COMPONENT)INPUT, HDMI3.1．SOURCE：Display the input source menu.2．MENU：Display main MENU.3．V-/V+Adjust sound level.In MENU mode, press“V+”or“V-”toadjust the item that you selected.4．CH-/CH+In TV mode，press“CH+”or“CH-”to changethe channel up and down.In MENU mode, press “CH+”or“CH-”to selectitems.5. STANDBYPress this button to turn the unit ON fromSTANDBY mode.Press it again to turn the set back to STANDBY.SOURCE MENU V- V+ CH- CH+ Standby1 2 3 4 5Panel keys1: Remote control sensor.2: Indicator LED: RED STANDBY.3: Panel keys3230 301HDMI3Y/VIDEO Pb PrL RAUDIO INOPTICALHEADPHONEAC-INPUT100-240V~50/60HzHDMI2(ARC) USBVGA R FMHLHDMI1
