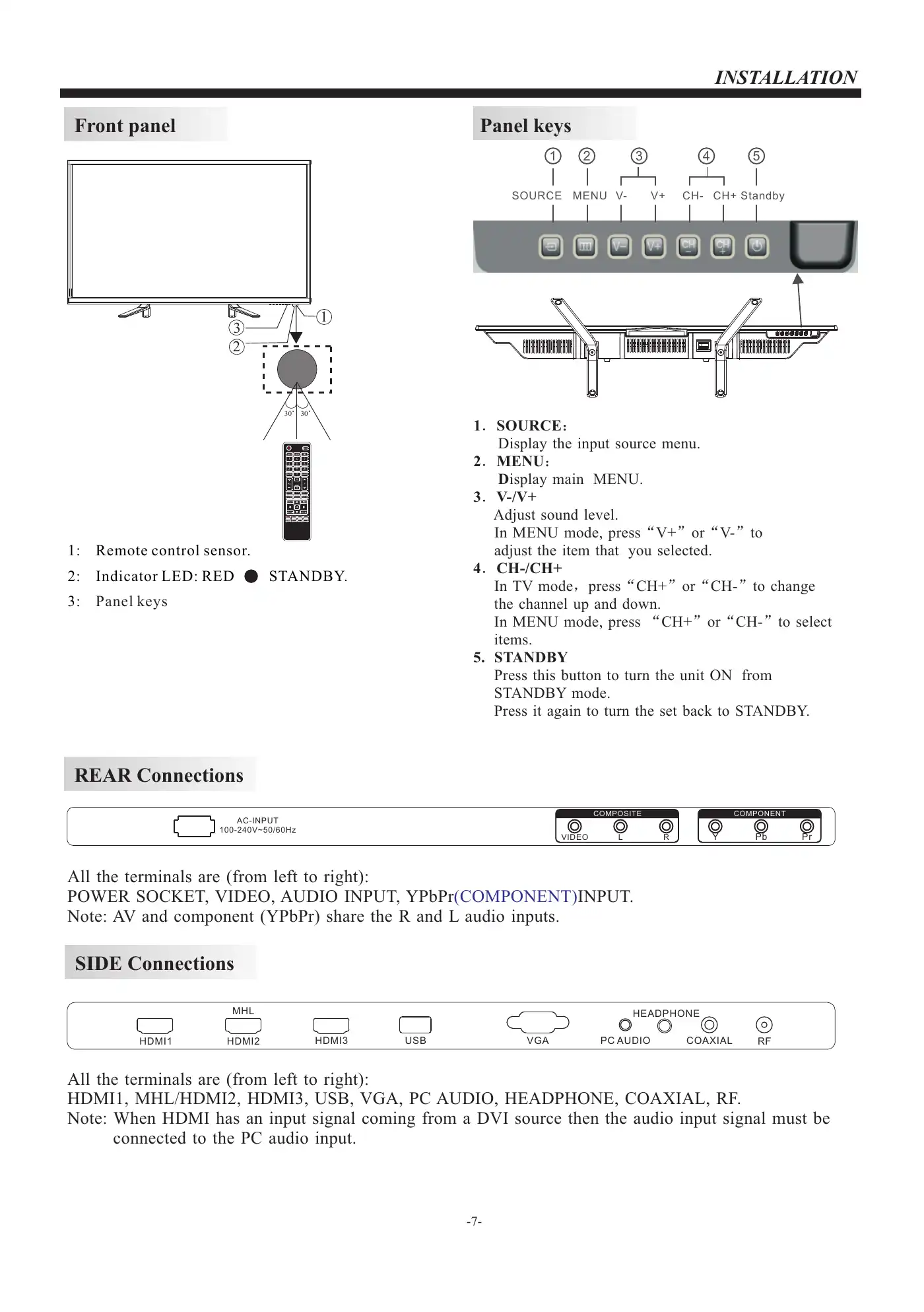

-7-INSTALLATIONFront panelREAR ConnectionsSIDE ConnectionsAll the terminals are (from left to right):HDMI1, MHL/HDMI2, HDMI3, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL, RF.Note: When HDMI has an input signal coming from a DVI source then the audio input signal must beconnected to the PC audio input.All the terminals are (from left to right):POWER SOCKET, VIDEO, AUDIO INPUT, YPbPr INPUT.Note: AV and component (YPbPr) share the R and L audio inputs.(COMPONENT)1: Remote control sensor.2: Indicator LED: RED STANDBY.3: Panel keys3230 3011．SOURCE：Display the input source menu.2．MENU：Display main MENU.3．V-/V+Adjust sound level.In MENU mode, press“V+”or“V-”toadjust the item that you selected.4．CH-/CH+In TV mode，press“CH+”or“CH-”to changethe channel up and down.In MENU mode, press “CH+”or“CH-”to selectitems.5. STANDBYPress this button to turn the unit ON fromSTANDBY mode.Press it again to turn the set back to STANDBY.SOURCE MENU V- V+ CH- CH+ Standby1 2 3 4 5Panel keysAC-INPUT100-240V~50/60Hz VIDEO L RCOMPOSITEY Pb PrCOMPONENTR FCOAXIALPC AUDIOVGAUSBHDMI3HDMI1MHLHDMI2HEADPHONE
