Haier 32D2000 Service Manual

Also see for 32D2000: User manual

Contents

Table of Contents2

Chapter 1. General Information4

Chapter 2. Specification9

Chapter 3. Disassemble and Assemble12

Chapter 4. Location of Controls and Components14

Chapter 5. Installation Instructions18

Chapter 6. Operation Instructions20

Chapter 7. Electrical Parts23

Chapter 8. Measurements and Adjustments31

Chapter 9. Trouble Shooting35

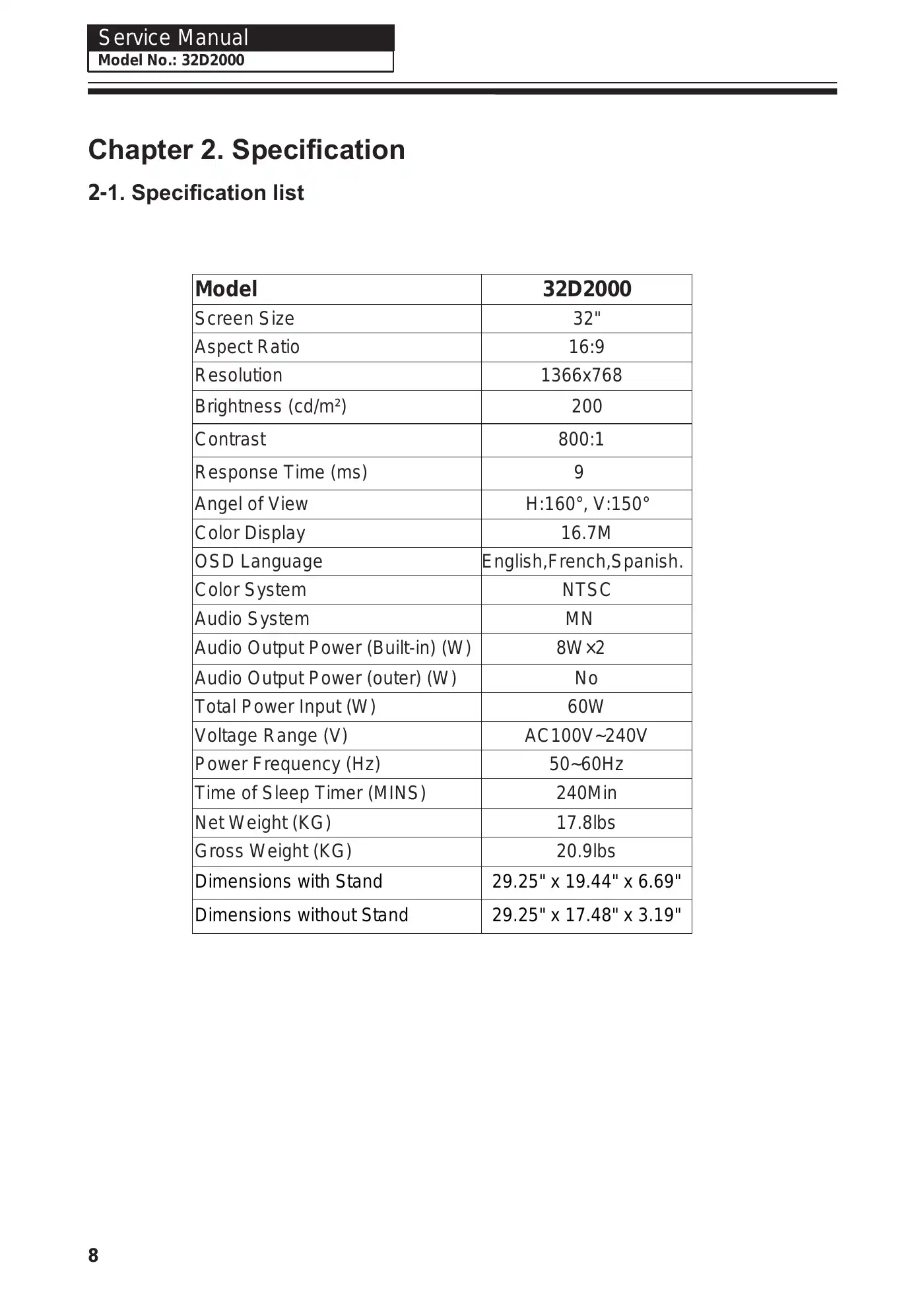

Haier 32D2000 Service Manual Manual pdf 9 page image

Model 32D2000Screen Size 32"Aspect Ratio 16:9Resolution 1366x768Brightness (cd/m²) 200Contrast 800:1Response Time (ms) 9Angel of View H:160°, V:150°Color Display 16.7MOSD Language English,French,Spanish.Color System NTSCAudio System MNAudio Output Power (Built-in) (W) 8W×2Audio Output Power (outer) (W) NoTotal Power Input (W) 60WVoltage Range (V) AC100V~240VPower Frequency (Hz) 50~60HzTime of Sleep Timer (MINS) 240MinNet Weight (KG) 17.8lbsGross Weight (KG) 20.9lbsDimensions with Stand 29.25" x 19.44" x 6.69"Dimensions without Stand 29.25" x 17.48" x 3.19"Service ManualModel No.: 32D2000Chapter 2. Specification2-1. Specification list8
